SEAT
DL650A VSTROM 2012 (L2) USA (E03)

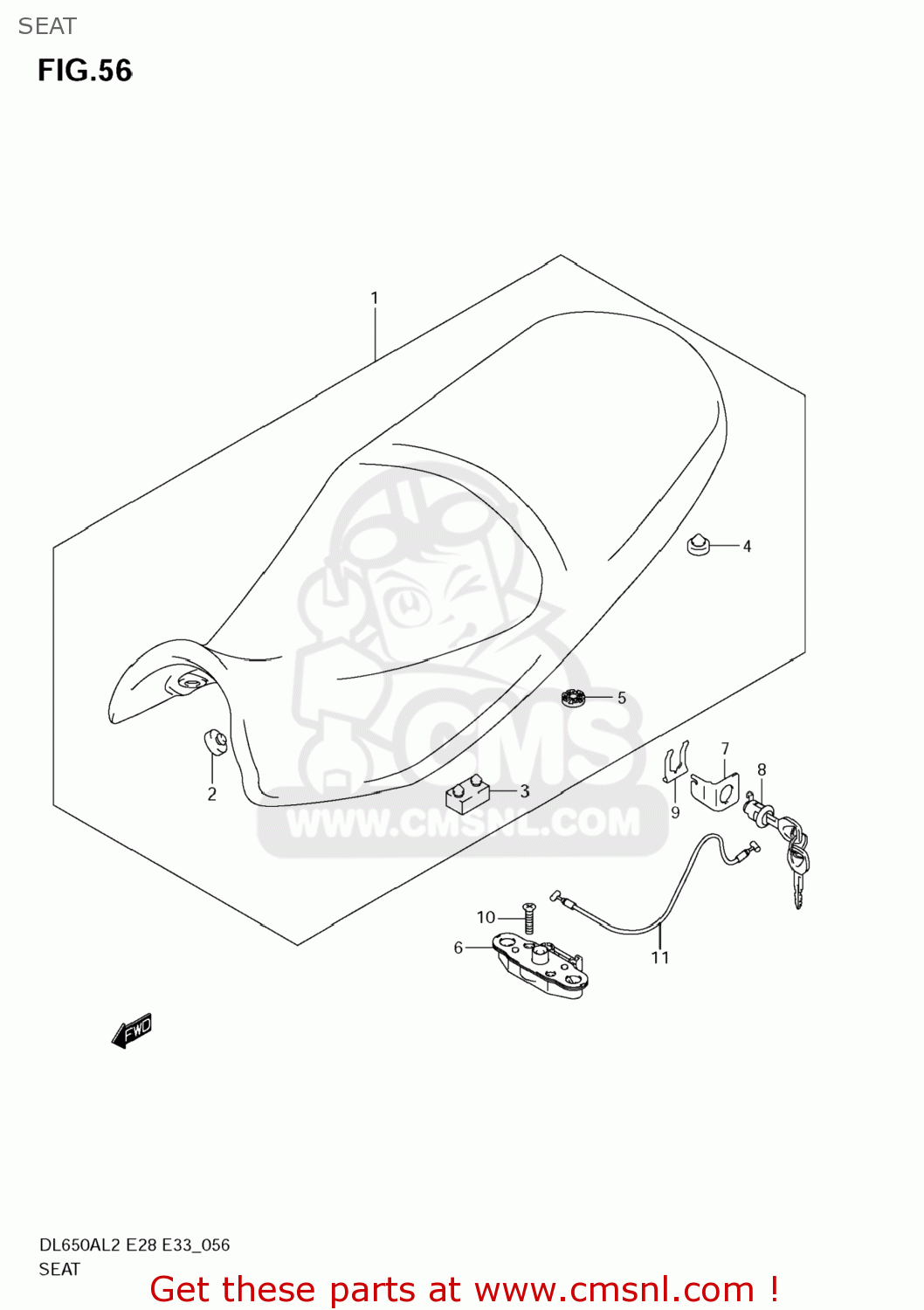

Seat diagram DL650A VSTROM 2012 (L2) USA (E03)
SEAT DL650A VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510011J00KCJ
ref: 1
SEAT ASSY
€ 362.50
2
4514836C00
ref: 2
CUSHION,SEAT
€ 4.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
€ 2.00
4
0932110012
ref: 4
CUSHION
€ 3.00
5
4521313601
ref: 5
CUSHION,SEAT LOCK(10X22X6)
€ 1.50
6
4522047H00
ref: 6
BRACKET,SEAT SUPPORT
€ 79.50
7
4528814F00
ref: 7
GUIDE,SEAT LOCK CABLE
€ 3.00
8
9570014810
ref: 8
LOCK SET,SEAT
€ 75.50
9
4528911F00
ref: 9
PLATE,SEAT LOCK ASSY
€ 3.00
10
021220630A
ref: 10
SCREW
€ 1.50
11
4528011J00
ref: 11
CABLE,SEAT LOCK
€ 17.50
