HANDLEBAR

DL650A VSTROM 2012 (L2) USA (E03)

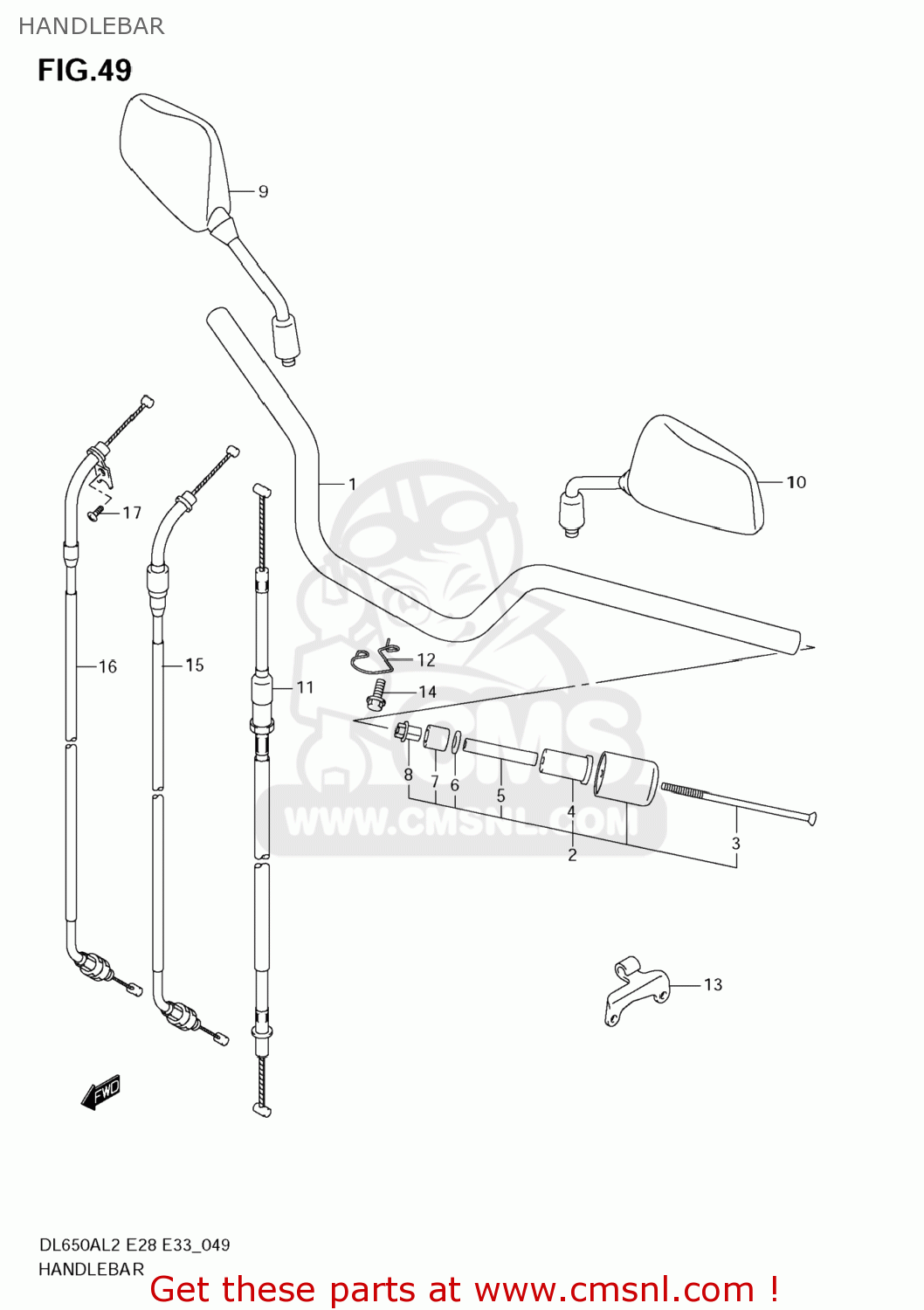

Handlebar diagram DL650A VSTROM 2012 (L2) USA (E03)

HANDLEBAR DL650A VSTROM 2012 (L2) USA (E03)

HANDLEBAR DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611111J01YUS
ref: 1

HANDLEBAR(SILVER)

€ 69.50

2

5620016841
ref: 2

BALANCER SET,HANDLEBAR

€ 27.50

3

0912706018
ref: 3

SCREW(6X110)

€ 3.50

4

5627206G00
ref: 4

EXPANDER

€ 5.50

5

5627617D00
ref: 5

SPACER,EXPANDER

€ 2.50

6

0916006131
ref: 6

WASHER(6.5X16X4)

€ 2.50

7

5627210G00
ref: 7

EXPANDER,HANDLE BALANCER

€ 3.00

8

5627310G10
ref: 8

NUT,HANDLE BALANCER

€ 6.50

9

5650004F30
ref: 9

MIRROR ASSY,RR VIEW,R

€ 71.00

10

5660004F30
ref: 10

MIRROR ASSY,RR VIEW,L

€ 55.00

11

5820011J00
ref: 11

CABLE ASSY,CLUTCH

€ 28.50

12

5863111J10
ref: 12

GUIDE,CLUTCH CABLE

€ 5.50

13

5863444H00
ref: 13

STOPPER,CLUTCH CABLE

€ 9.50

14

015470612A
ref: 14

BOLT

€ 2.00

15

5830011J00
ref: 15

CABLE ASSY,THROTTLE NO.1

€ 36.50

16

5830011J10
ref: 16

CABLE ASSY,THROTTLE NO.2

€ 34.50

17

0912505042
ref: 17

SCREW(5X10)

€ 2.50
