HYDRAULIC UNIT
DL650A VSTROM 2012 (L2) USA (E03)

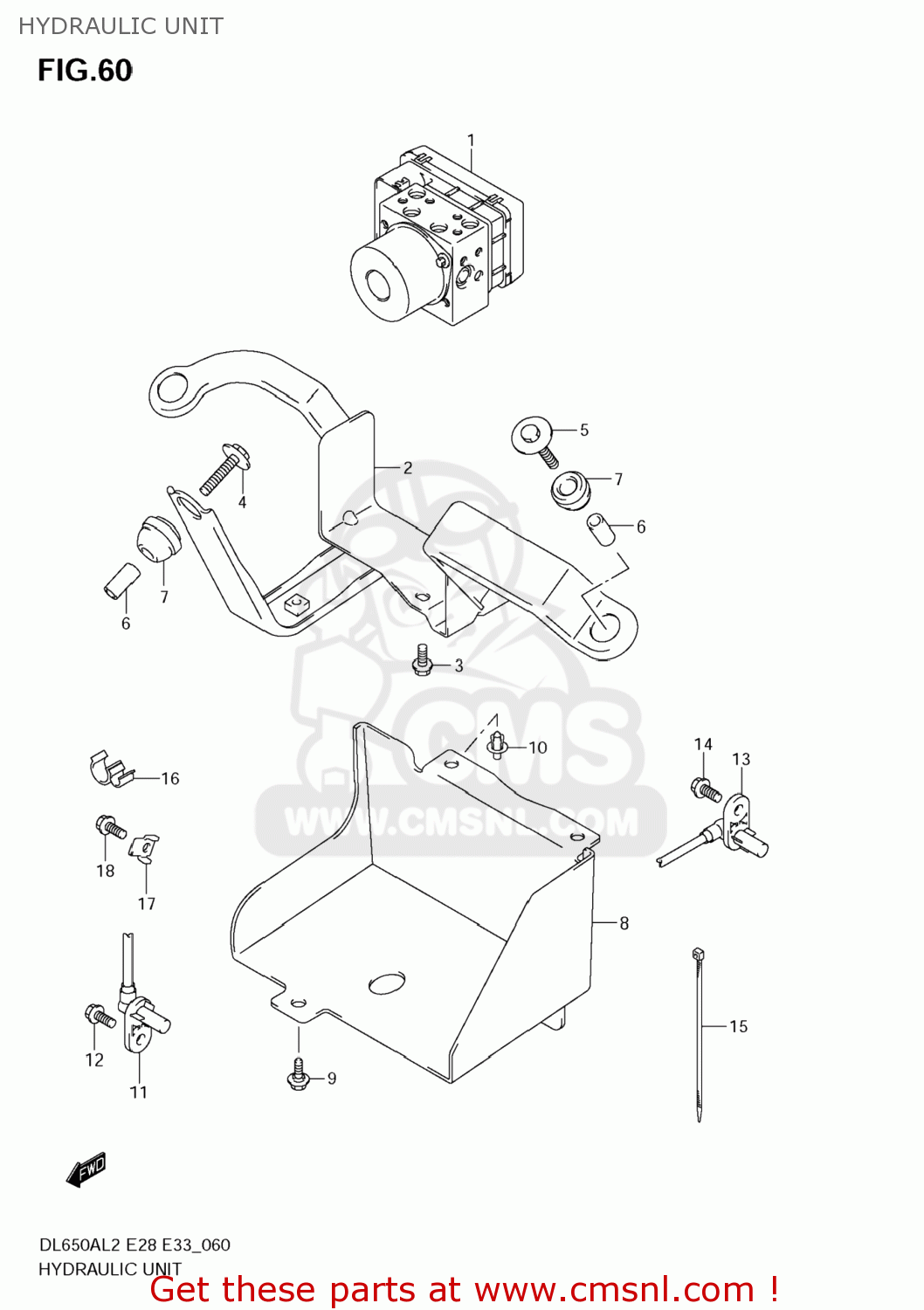

Hydraulic unit diagram DL650A VSTROM 2012 (L2) USA (E03)
HYDRAULIC UNIT DL650A VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5561011J00
ref: 1
UNIT ASSY,HYDR
€ 2,615.00
2
5566011J00
ref: 2
HOLDER,HYDRAULIC UNIT ABS
€ 40.50
3
015500612A
ref: 3
BOLT
€ 2.50
4
0911606171
ref: 4
BOLT(6X30)
€ 2.50
5
0911606176
ref: 5
BOLT(6X37)
€ 3.00
6
0918006296
ref: 6
SPACER(6.5X10X20)
€ 2.00
7
0932010061
ref: 7
CUSHION
€ 3.50
8
5566727G10
ref: 8
COVER,HYDR ABS UNIT
€ 14.50
9
0911106066
ref: 9
BOLT(6X16)
€ 2.50
10
09409083085ES
ref: 10
CLIP(BLACK)
€ 2.00
11
5571011J00
ref: 11
SENSOR,FR WHEEL ABS
€ 204.50
12
015500816A
ref: 12
BOLT
€ 2.50
13
6571011J00
ref: 13
SENSOR,RR WHEEL ABS
€ 227.00
14
015500816A
ref: 14
BOLT
€ 2.50
15
0940714407
ref: 15
CLAMP(L:145)
€ 4.00
16
0940800266
ref: 16
CLAMP
€ 2.00
17
3493814F00
ref: 17
GUIDE,SENSOR LEAD
€ 4.00
18
015470612A
ref: 18
BOLT
€ 2.00
