TURNSIGNAL LAMP
DL650A VSTROM 2012 (L2) USA (E03)

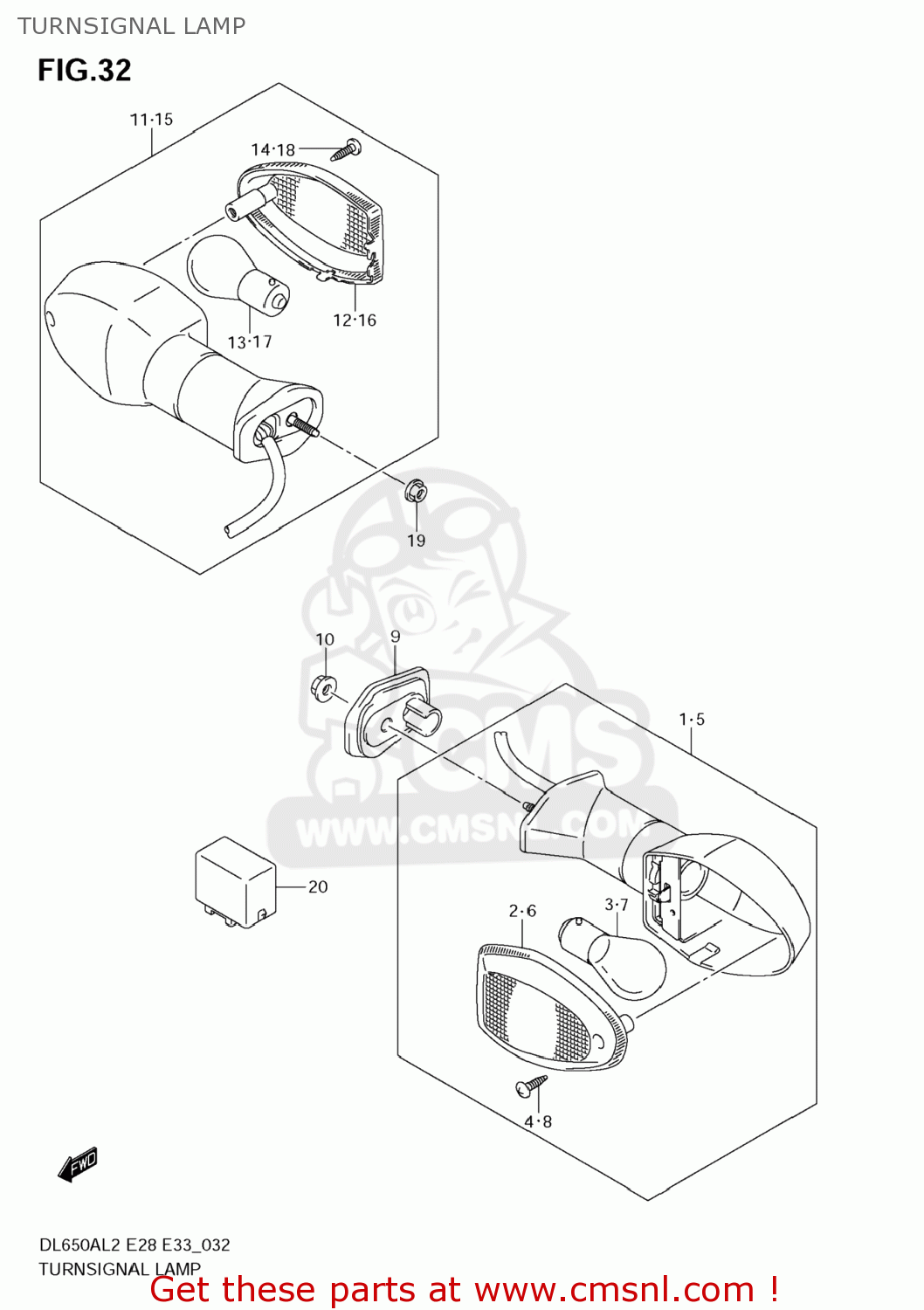

Turnsignal lamp diagram DL650A VSTROM 2012 (L2) USA (E03)
TURNSIGNAL LAMP DL650A VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560108J00
ref: 1
LAMP ASSY,FRON
€ 52.00
2
3561208J00
ref: 2
LENS,TURNSIGNA
€ 6.50
3
0947112045
ref: 3
BULB(12V21W)
€ 5.00
4
032110414B
ref: 4
SCREW
€ 3.00
5
3560208J00
ref: 5
LAMP ASSY,FRON
€ 52.00
6
3563208J00
ref: 6
LENS,TURNSIGNA
€ 6.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
032110414B
ref: 8
SCREW
€ 3.00
9
3562918G00
ref: 9
PLATE,FR TURNSIGNAL
€ 2.00
10
083161005A
ref: 10
NUT
€ 2.50
11
3560308J10
ref: 11
LAMP ASSY,REAR
€ 163.50
12
3563208J00
ref: 12
LENS,TURNSIGNA
€ 6.50
13
0947112045
ref: 13
BULB(12V21W)
€ 5.00
14
032110414B
ref: 14
SCREW
€ 3.00
15
3560408J10
ref: 15
LAMP ASSY,REAR
€ 157.50
16
3561208J00
ref: 16
LENS,TURNSIGNA
€ 6.50
17
0947112045
ref: 17
BULB(12V21W)
€ 5.00
18
032110414B
ref: 18
SCREW
€ 3.00
19
083193105A
ref: 19
NUT
€ 2.50
20
3861003F00
ref: 20
RELAY ASSY,TURNSIGNAL LAMP
€ 88.50
