AIR CLEANER

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

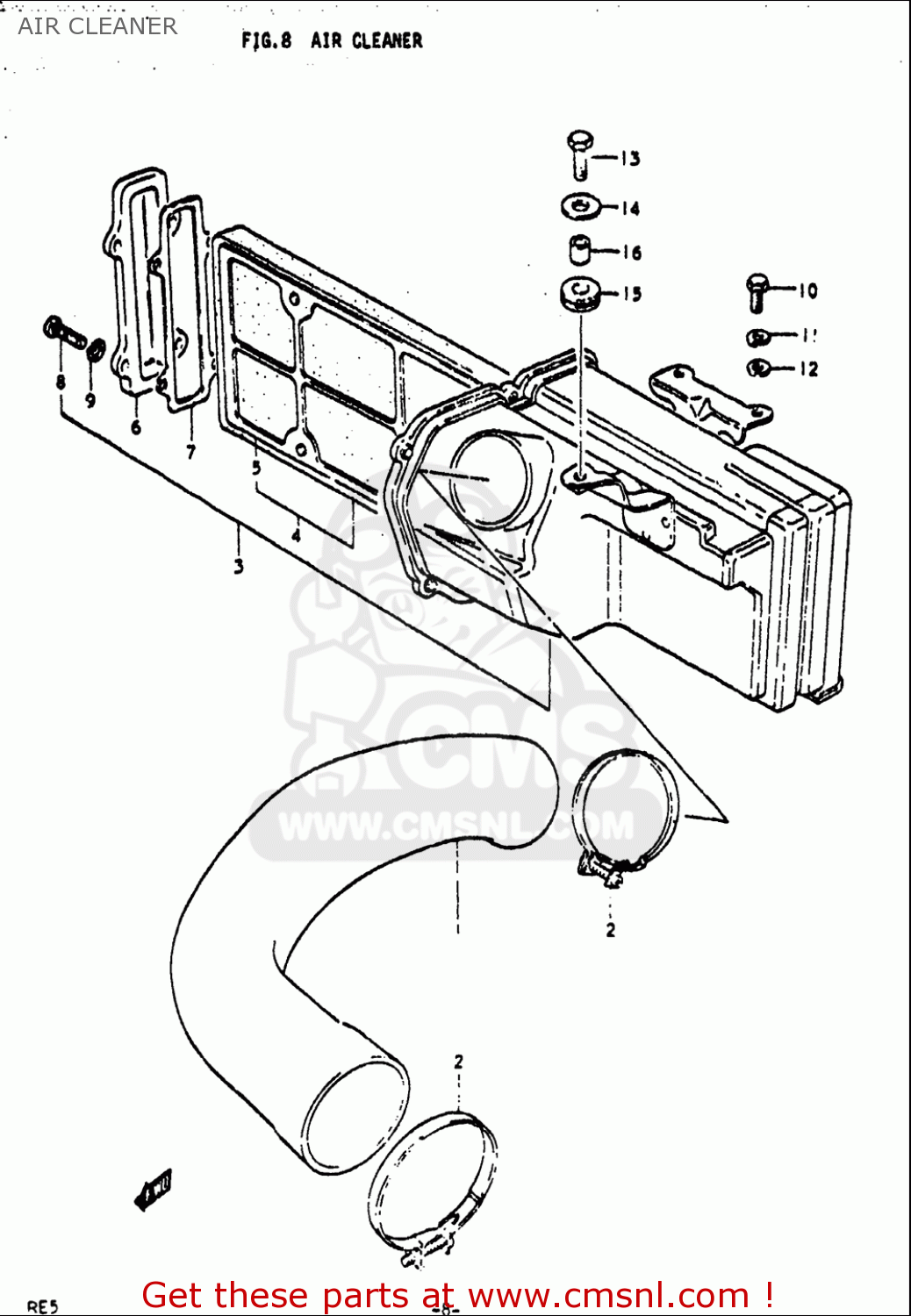

Air cleaner diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

AIR CLEANER RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

AIR CLEANER RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0940260208
ref: 2

CLAMP

€ 4.50

5

1378137010
ref: 5

ELEMENT,AIR CLEANER

€ 27.50

8

0211205207
ref: 8

SCREW

€ 3.00

9

0832101057
ref: 9

WASHER,LOCK

€ 2.00

10

0150006127
ref: 10

BOLT

€ 2.00

11

0832101067
ref: 11

WASHER,LOCK

€ 2.50

12

0832201067
ref: 12

WASHER

€ 2.00

13

0150006207
ref: 13

BOLT

€ 2.00

14

0916006077
ref: 14

WASHER(6.5X20X1.2)

€ 2.00

15

0932008021
ref: 15

CUSHION

€ 4.00

16

09180C06259J000
ref: 16

SPACER,6.5X9X7

€ 0.00
