TROCHOID PUMP

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

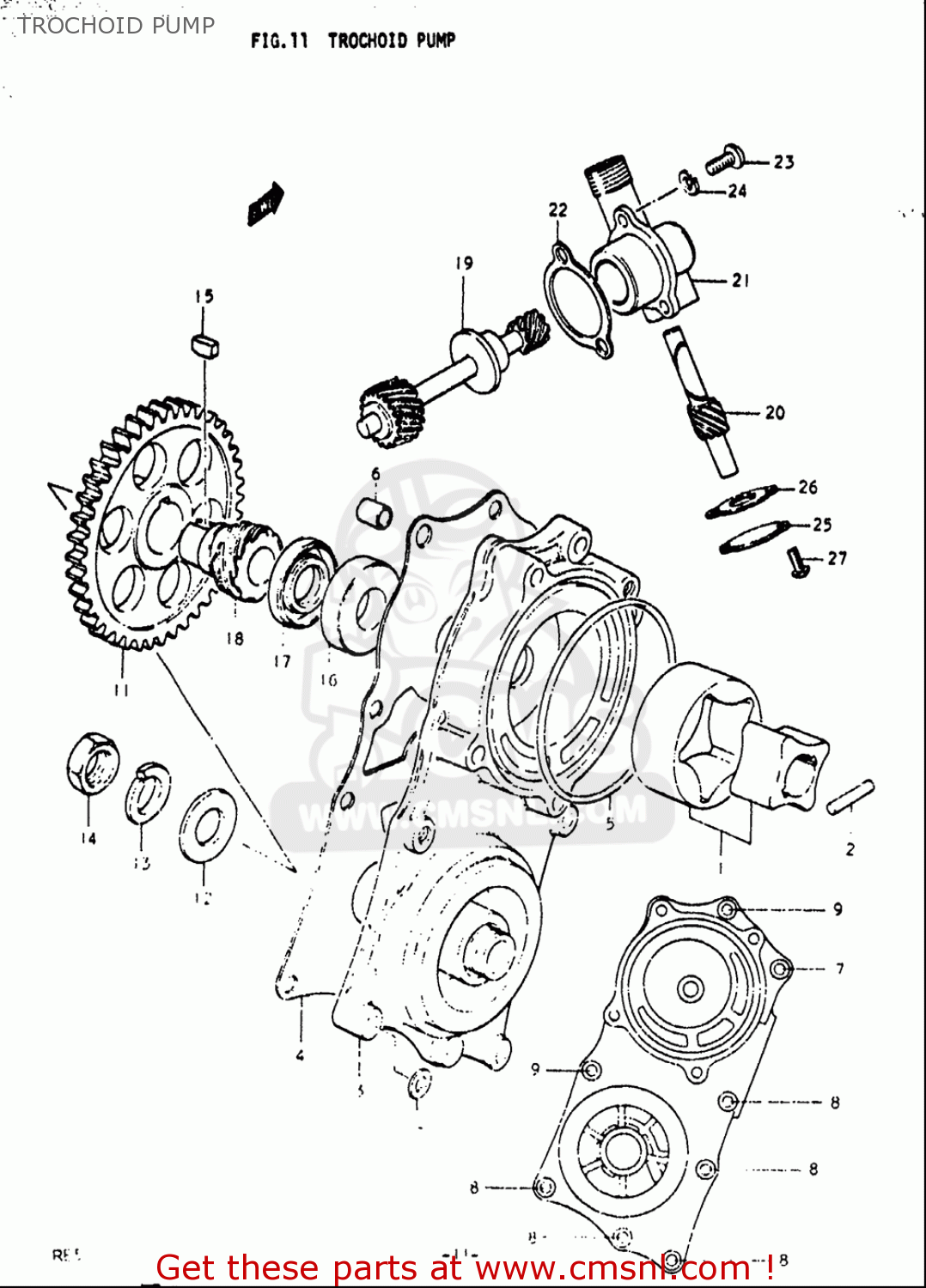

Trochoid pump diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

TROCHOID PUMP RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

TROCHOID PUMP RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0926104003
ref: 2

PIN(4X20)

€ 2.00

5

0928071001
ref: 5

O RING(D:3.1,ID:71)

€ 17.50

6

0421109129
ref: 6

PIN

€ 2.00

9

0713006257
ref: 9

BOLT

€ 2.50

10

0916406006
ref: 10

WASHER

€ 2.50

12

0916012089
ref: 12

WASHER(12.5X26X1.6)

€ 2.00

13

0832101127
ref: 13

WASHER,LOCK

€ 2.50

14

0914012039
ref: 14

NUT

€ 3.00

23

0211205167
ref: 23

SCREW

€ 2.50

24

0832101067
ref: 24

WASHER,LOCK

€ 2.50

27

0211203087
ref: 27

SCREW

€ 1.50
