RADIATOR SUB TANK

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

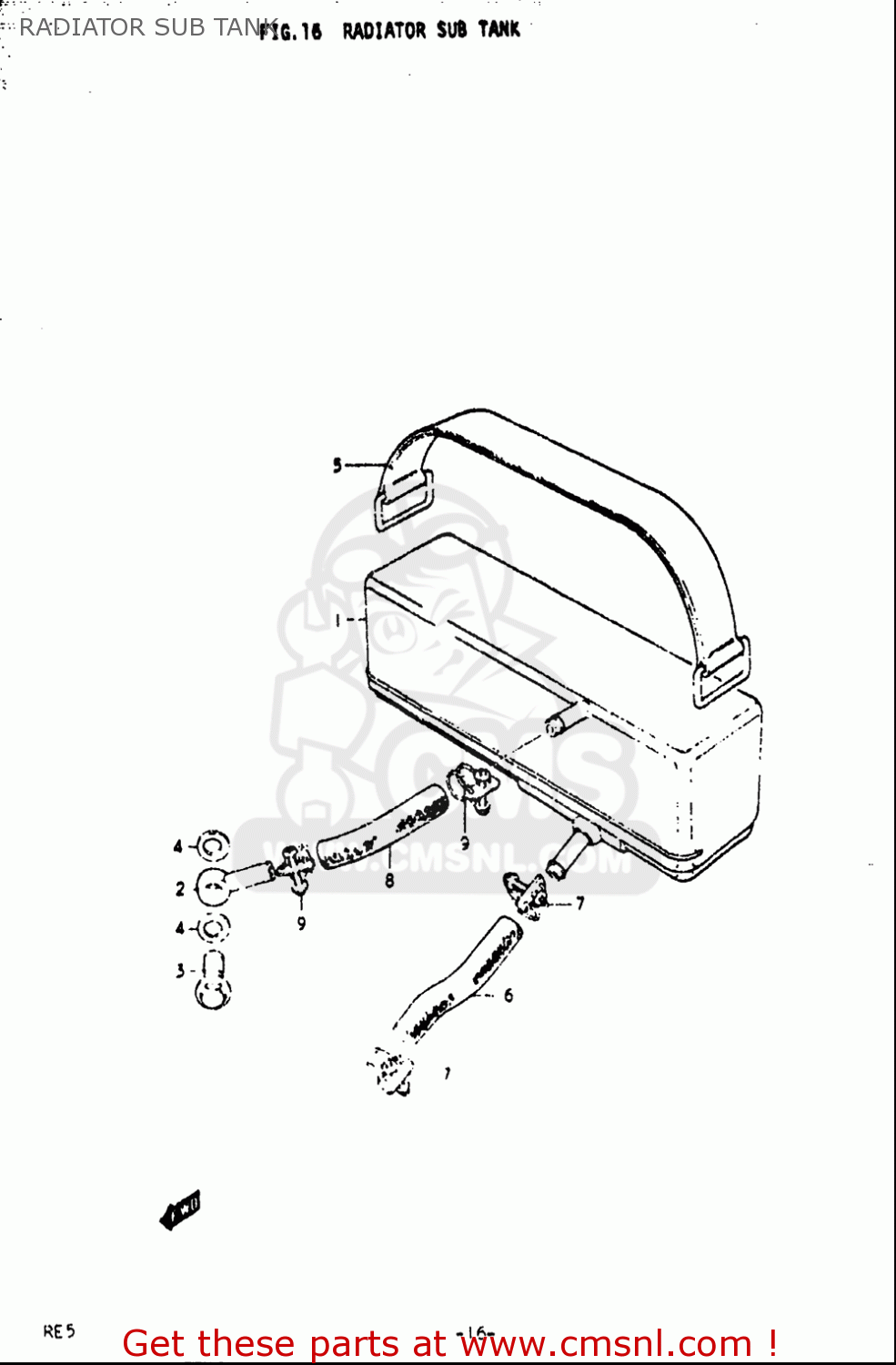

Radiator sub tank diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

RADIATOR SUB TANK RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

RADIATOR SUB TANK RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0936306006
ref: 2

UNION

€ 17.50

3

0936006003
ref: 3

UNION BOLT

€ 5.00

4

0916806004
ref: 4

GASKET(6.2X11X1).2 (NAS)

€ 1.50

5

0946200051
ref: 5

BAND

€ 29.50

6

0934305123
ref: 6

HOSE(5.5X9.5X400)

€ 14.00

7

0940010302
ref: 7

CLAMP

€ 9.50

8

0934305087
ref: 8

HOSE(5.5X9.5X52)

€ 7.50

9

0940010302
ref: 9

CLAMP

€ 9.50
