GENERATOR

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

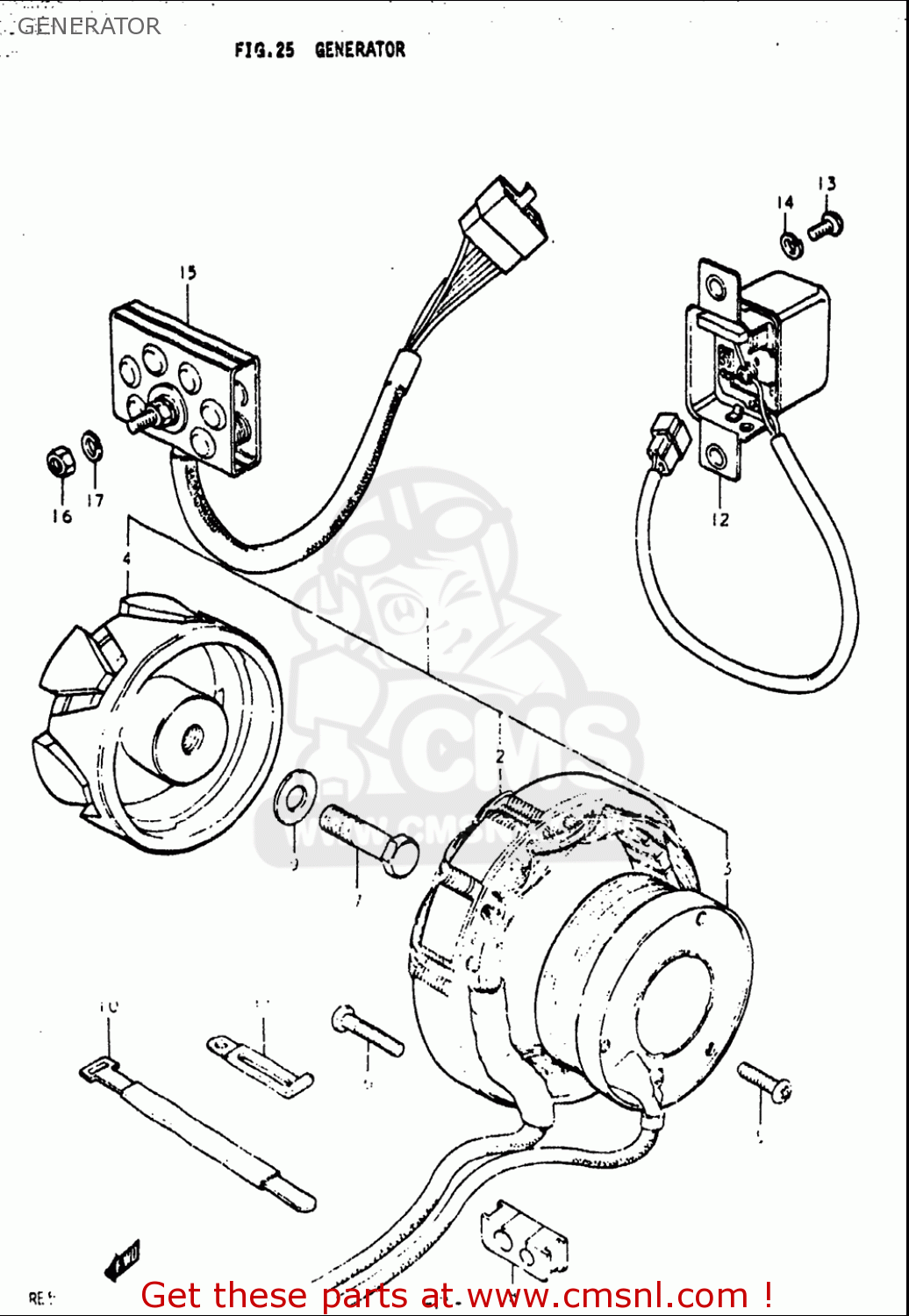

Generator diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

GENERATOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

GENERATOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

5

0211206257
ref: 5

SCREW

€ 2.00

6

0211206357
ref: 6

SCREW

€ 2.50

7

0155012503
ref: 7

BOLT

€ 4.00

9

0916412016
ref: 9

WASHER

€ 5.00

10

0940714301
ref: 10

CLAMP

€ 6.00

11

0940406432
ref: 11

CLAMP(L:65)

€ 2.50

12

3250031010
ref: 12

REGULATOR ASSY,VOLTAGE

€ 161.50

13

0150006167
ref: 13

BOLT

€ 3.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

3280031021
ref: 15

RECTIFIER ASSY

€ 259.00

16

0831000067
ref: 16

NUT

€ 2.50

17

0832101067
ref: 17

WASHER,LOCK

€ 2.50
