STARTING MOTOR

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

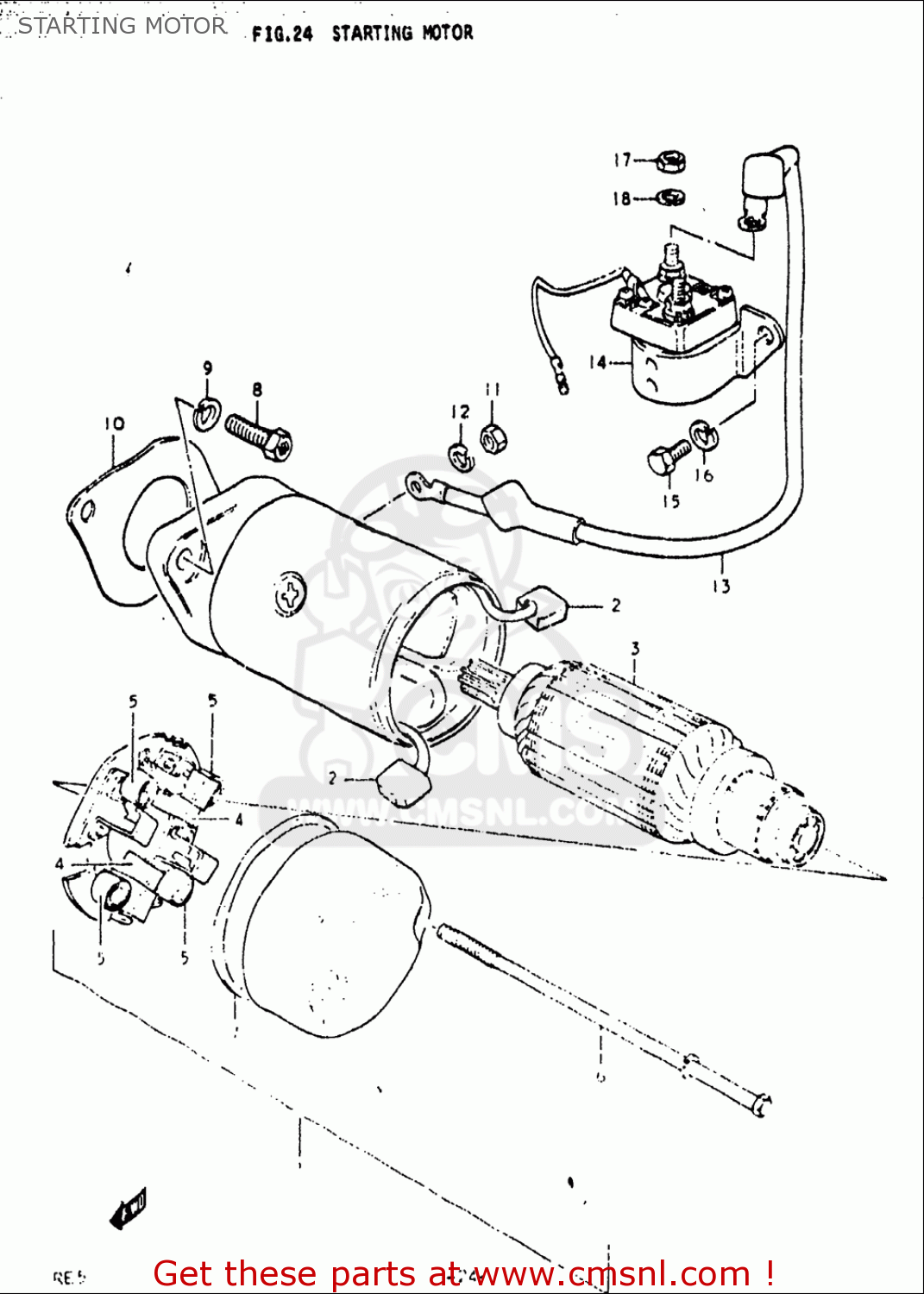

Starting motor diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

STARTING MOTOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

STARTING MOTOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

8

0150008257
ref: 8

BOLT

€ 2.50

9

0832101087
ref: 9

WASHER,LOCK

€ 2.00

11

0831000067
ref: 11

NUT

€ 2.50

12

0832101067
ref: 12

WASHER,LOCK

€ 2.50

14

3180037020
ref: 14

RELAY ASSY,STARTING MOTOR

€ 105.00

15

0910006011
ref: 15

BOLT(6X8)

€ 2.50

16

0832101067
ref: 16

WASHER,LOCK

€ 2.50

17

0831000067
ref: 17

NUT

€ 2.50

18

0832101067
ref: 18

WASHER,LOCK

€ 2.50
