CHAIN CASE - SHOCK ABSORBER

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

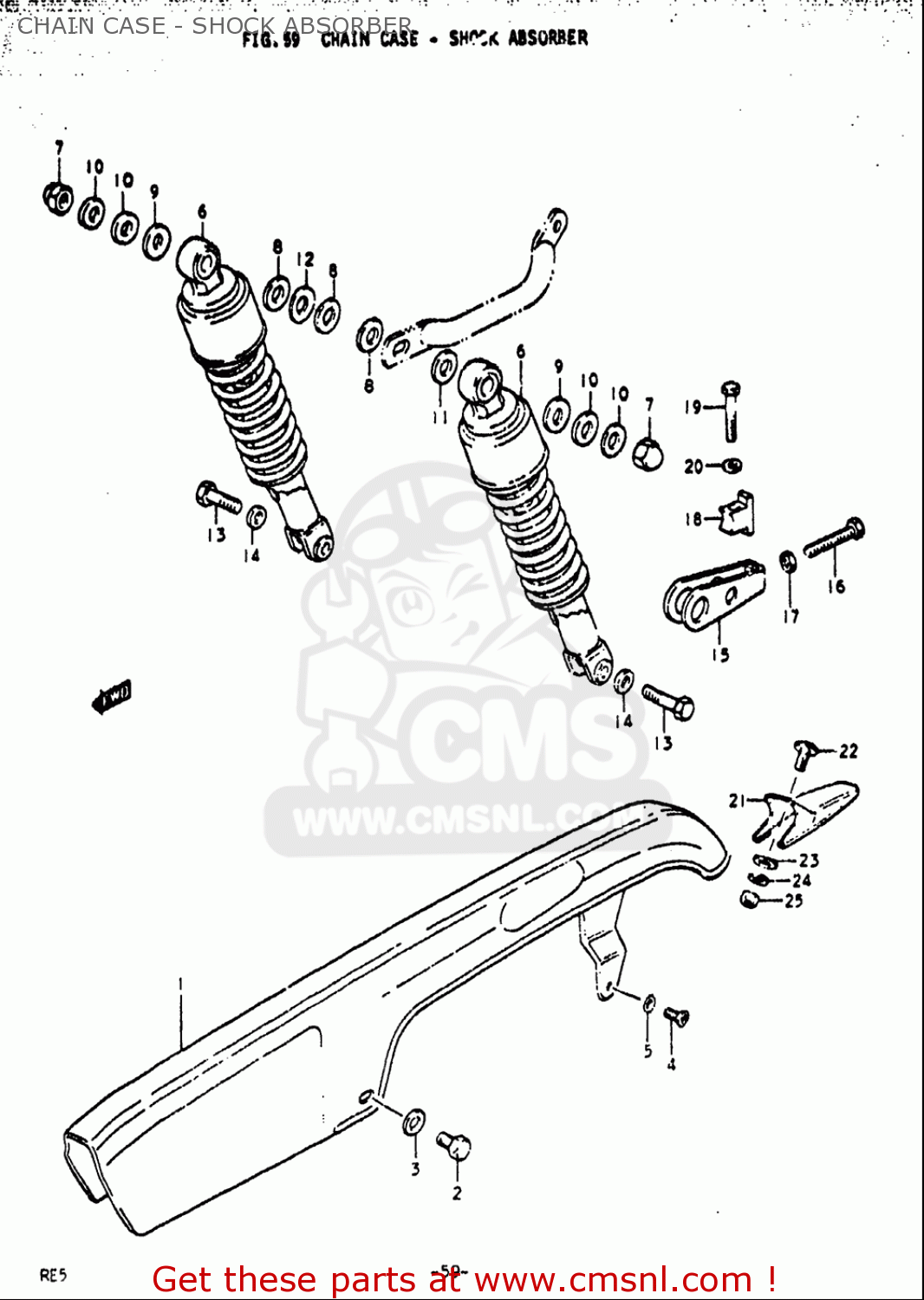

Chain case - shock absorber diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

0910006011
ref: 2

BOLT(6X8)

€ 2.50

0916006084
ref: 3

WASHER(6.5X18X1.6)

€ 2.00

0212206167
ref: 4

SCREW

€ 2.00

0832331068
ref: 5

LOCK WASHER

€ 1.50

0831310107
ref: 7

NUT

€ 2.50

0832201127
ref: 8

WASHER

€ 2.00

0916010035
ref: 9

WASHER(10.5X28X2.3)

€ 2.00

0916010128
ref: 10

WASHER (10.5X25X3.2)

€ 2.00

0916012088
ref: 11

WASHER(12.5X24X1.6)

€ 2.00

0916012082
ref: 12

WASHER(12.5X24X3.2)

€ 2.50

0910410029
ref: 13

BOLT(10X38)

€ 3.50

0832201107
ref: 14

WASHER

€ 2.50

6141031001
ref: 15

ADJUSTER,CHAIN

€ 50.00

0910408034
ref: 16

BOLT(8X50)

€ 3.00

0831000087
ref: 17

NUT

€ 2.00

6143331000
ref: 18

SUPPORTER,CHAIN ADJUST

€ 22.50

015000840A
ref: 19

BOLT

€ 3.00

0832201087
ref: 20

WASHER

€ 2.00

0214205107
ref: 22

SCREW

€ 2.50

0832201057
ref: 23

WASHER

€ 2.50

0832101057
ref: 24

WASHER,LOCK

€ 2.00

0831000057
ref: 25

NUT

€ 2.50
