BRAKE PEDAL - FOOTREST

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

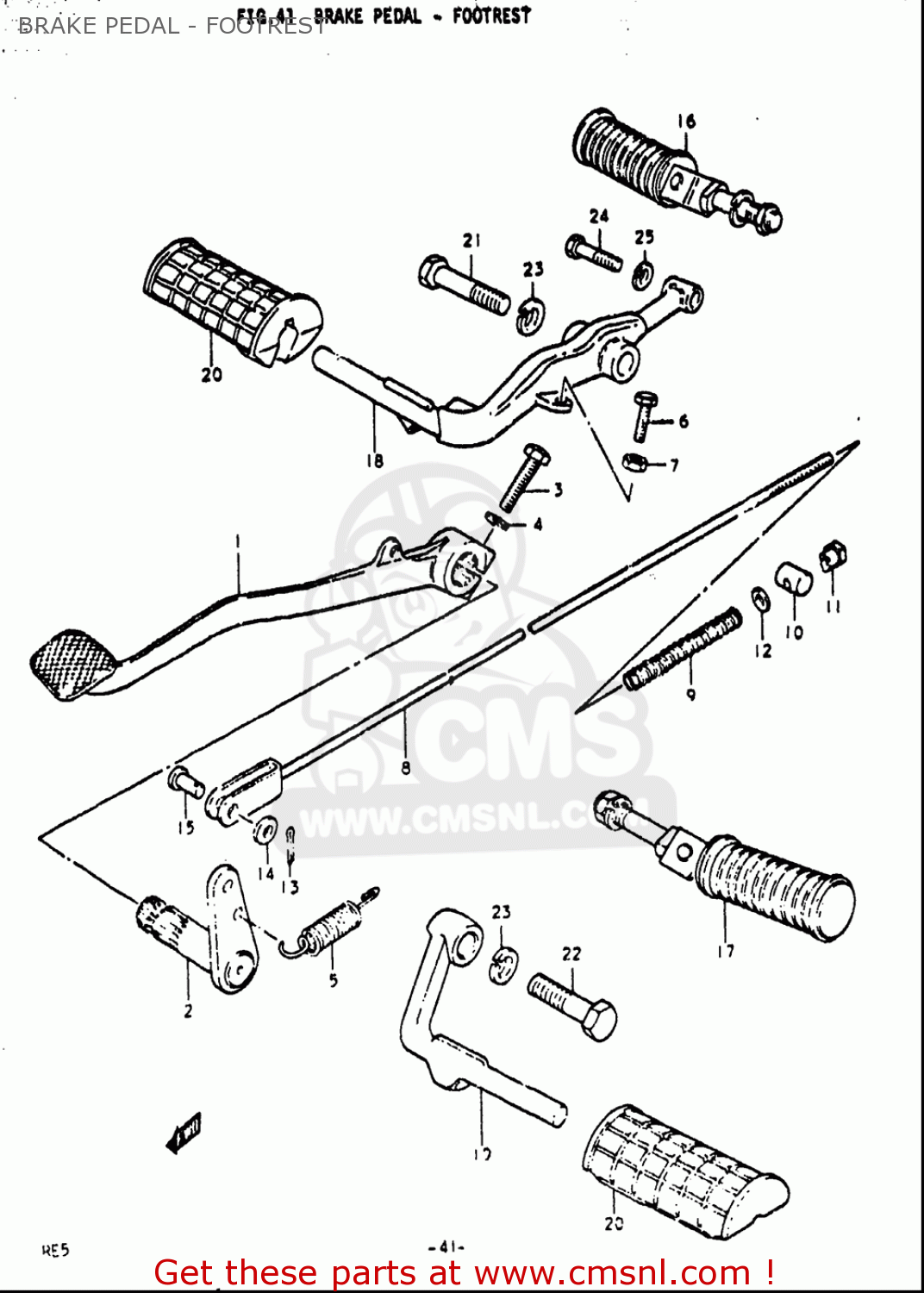

Brake pedal - footrest diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

0150008307
ref: 3

BOLT

€ 2.50

0832101067
ref: 4

WASHER,LOCK

€ 2.50

0910006009
ref: 6

BOLT(6X23)

€ 1.50

0831000067
ref: 7

NUT

€ 2.50

0944009004
ref: 9

SPRING

€ 2.00

0920913018
ref: 10

PIN(13X18)

€ 3.50

0915006014
ref: 11

NUT

€ 3.50

0832201057
ref: 12

WASHER

€ 2.50

041112020A
ref: 13

PIN

€ 1.50

0832201067
ref: 14

WASHER

€ 2.00

0920006013
ref: 15

PIN(L:13.5)

€ 2.00

4355136000
ref: 20

RUBBER,FR FOOTREST

€ 12.00

0910412101
ref: 22

BOLT

€ 3.00

0832101127
ref: 23

WASHER,LOCK

€ 2.50

0120408357
ref: 24

BOLT

€ 3.50

0832101087
ref: 25

WASHER,LOCK

€ 2.00

BRAKE PEDAL - FOOTREST

all assemblies
