RADIATOR

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

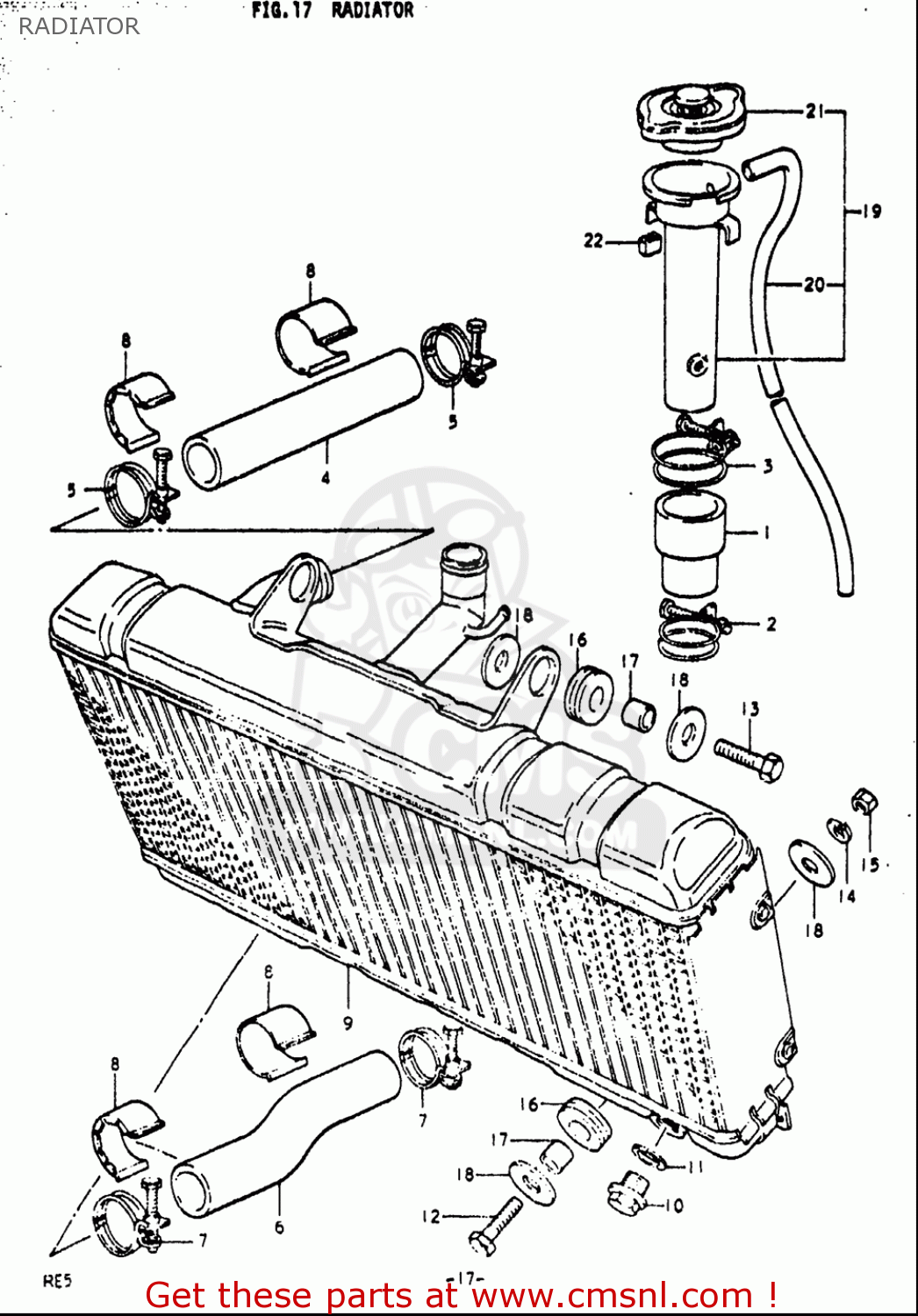

Radiator diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

RADIATOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

RADIATOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0940034311
ref: 2

CLAMP

€ 2.50

3

0940040311
ref: 3

CLAMP

€ 2.50

5

0940034311
ref: 5

CLAMP

€ 2.50

7

0940034311
ref: 7

CLAMP

€ 2.50

12

0911108010
ref: 12

BOLT

€ 6.50

13-1

0150008257
ref: 13-1

BOLT

€ 2.50

13-2

0150008307
ref: 13-2

BOLT

€ 2.50

14

0832101087
ref: 14

WASHER,LOCK

€ 2.00

15

0831000087
ref: 15

NUT

€ 2.00

16

0932013005
ref: 16

CUSHION

€ 4.50

17

0918008199
ref: 17

SPACER,8.5X14X9

€ 2.50

21

1792078000
ref: 21

CAP,RADIATOR 0.9

€ 16.00

22

0932901003
ref: 22

CUSHION

€ 2.00
