RADIATOR BUMPER

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

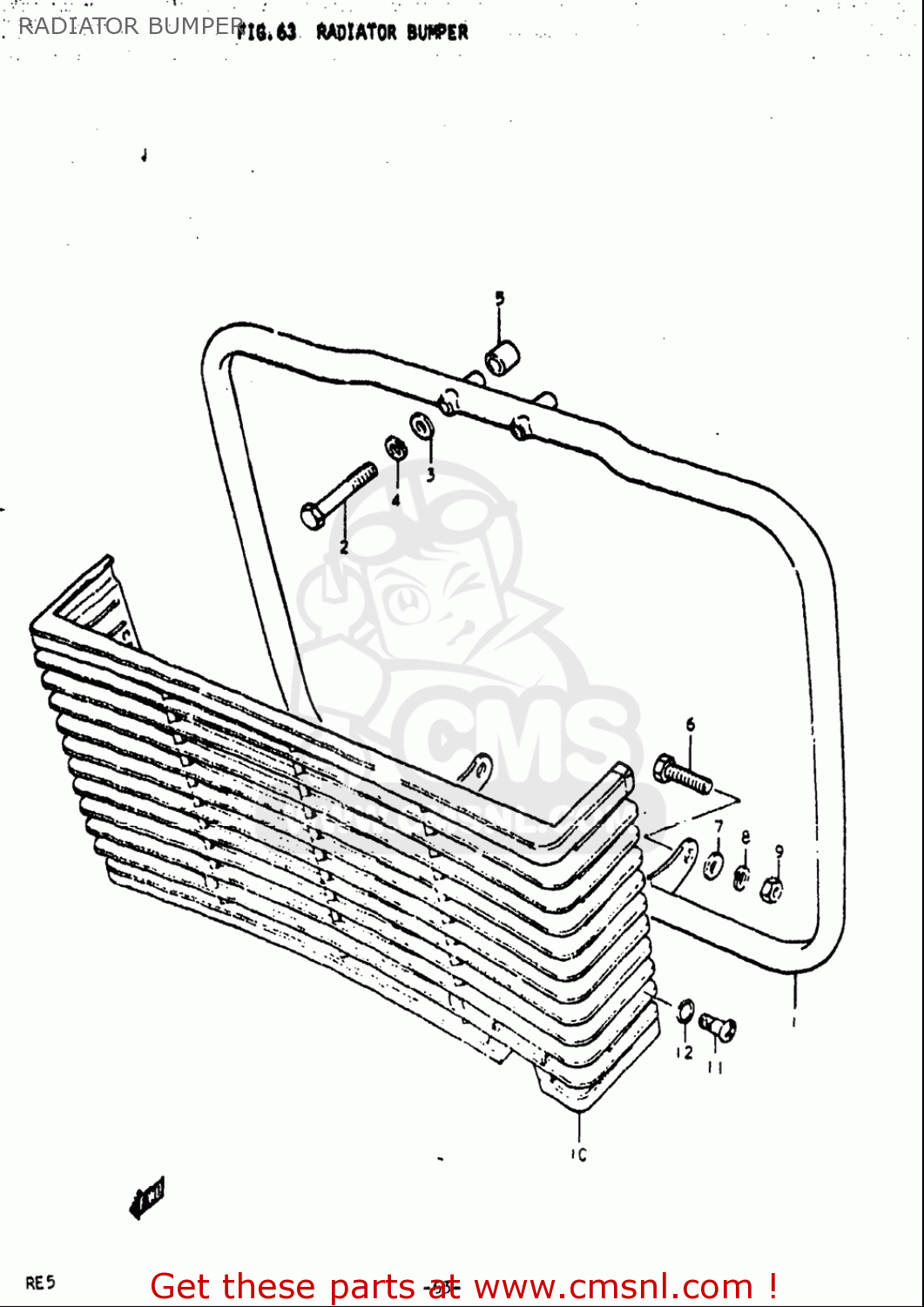

Radiator bumper diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

RADIATOR BUMPER RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

RADIATOR BUMPER RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0150008753
ref: 2

BOLT

€ 3.00

3

0832201087
ref: 3

WASHER

€ 2.00

4

0832101087
ref: 4

WASHER,LOCK

€ 2.00

5

0918008143
ref: 5

SPACER(8.2X12X17)

€ 5.00

6

0150008257
ref: 6

BOLT

€ 2.50

7

0832201087
ref: 7

WASHER

€ 2.00

8

0832101087
ref: 8

WASHER,LOCK

€ 2.00

9

0831000087
ref: 9

NUT

€ 2.00

12

0928006004
ref: 12

O RING(D:3.5,ID:5.8)

€ 2.00
