GEAR SHIFTING

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

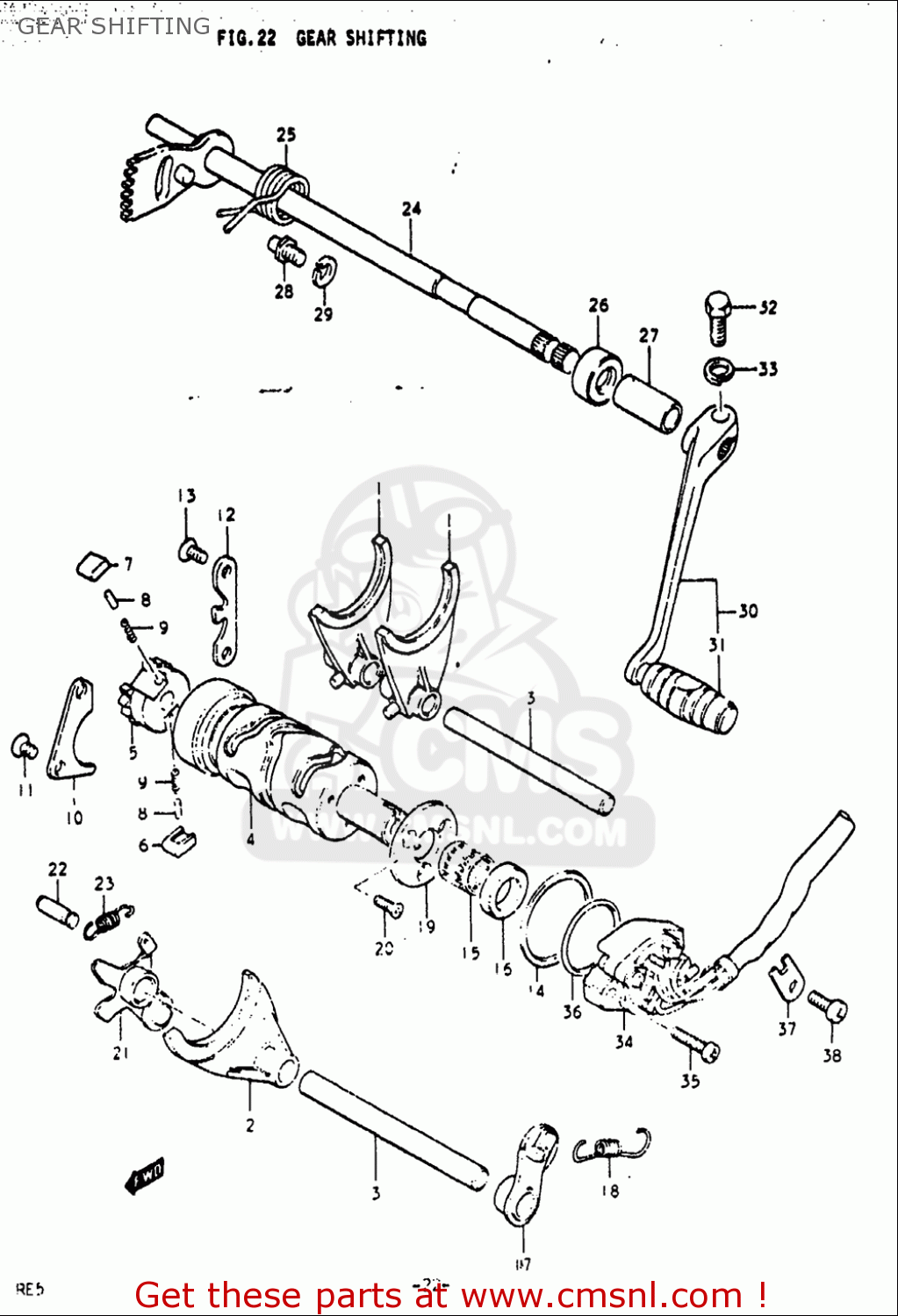

Gear shifting diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

GEAR SHIFTING RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
GEAR SHIFTING RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
GEAR SHIFTING RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
prices are in EUR
ref
part #
description
quantity
3
2541116700
ref: 3
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2532231310
ref: 5
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
6
2532334201
ref: 6
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
7
2532434201
ref: 7
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
11
0212206127
ref: 11
SCREW
0212206127
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
2534118000
€ 51.50
13
0212206127
ref: 13
SCREW
0212206127
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
0916040001
€ 2.50
15-1
0926316006
ref: 15-1
ROLLER BEARING (16X22X1
0926316006
€ 10.00
15-2
0926316012
ref: 15-2
BEARING(16X22X12)
0926316012
€ 13.00
16
0928416002
ref: 16
SEAL,OIL(16X24X7)
0928416002
€ 6.50
20
021220412A
ref: 20
SCREW
021220412A
€ 2.00
25
0944426001
ref: 25
SPRING
0944426001
€ 4.00
26
0928512006
ref: 26
SEAL,OIL (12X22X9)
0928512006
€ 7.00
27
0932013004
ref: 27
CUSHION
0932013004
€ 4.50
28
2567101011
ref: 28
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
29
0832101087
ref: 29
WASHER,LOCK
0832101087
€ 2.00
31
2565216500
ref: 31
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
32
0150008207
ref: 32
BOLT
0150008207
€ 3.00
33
0832101087
ref: 33
WASHER,LOCK
0832101087
€ 2.00
35
0211205207
ref: 35
SCREW
0211205207
€ 3.00
36
0928028002
ref: 36
O RING(D:1.9,ID:27.7)
0928028002
€ 7.50
38
0211206107
ref: 38
SCREW
0211206107
€ 1.50
