TRANSMISSION CASE

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

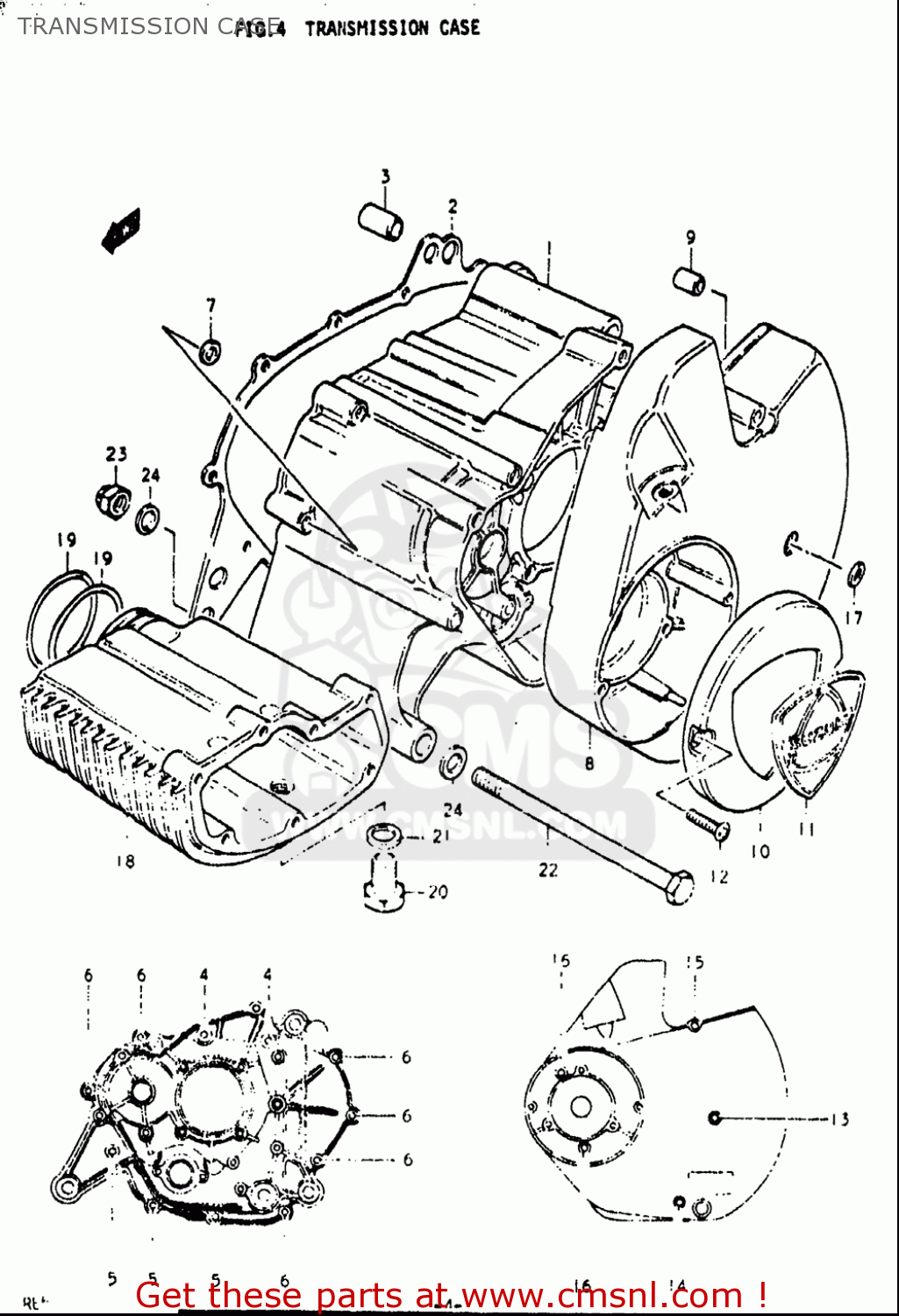

Transmission case diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

TRANSMISSION CASE RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

TRANSMISSION CASE RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

3

0421113189
ref: 3

PIN

€ 2.50

7

0916406006
ref: 7

WASHER

€ 2.50

9

0421109129
ref: 9

PIN

€ 2.00

12

0211205127
ref: 12

SCREW

€ 2.50

15

0713006553
ref: 15

BOLT

€ 2.50

17

0916406006
ref: 17

WASHER

€ 2.50

20

0924714025
ref: 20

PLUG

€ 3.50

21

0916814004
ref: 21

GASKET(14X19.2X2) (NAS)

€ 2.50

22

0911610032
ref: 22

BOLT(10X120)

€ 3.50

23

0915910011
ref: 23

NUT

€ 3.00

24

0832201107
ref: 24

WASHER

€ 2.50
