KICK STARTER

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

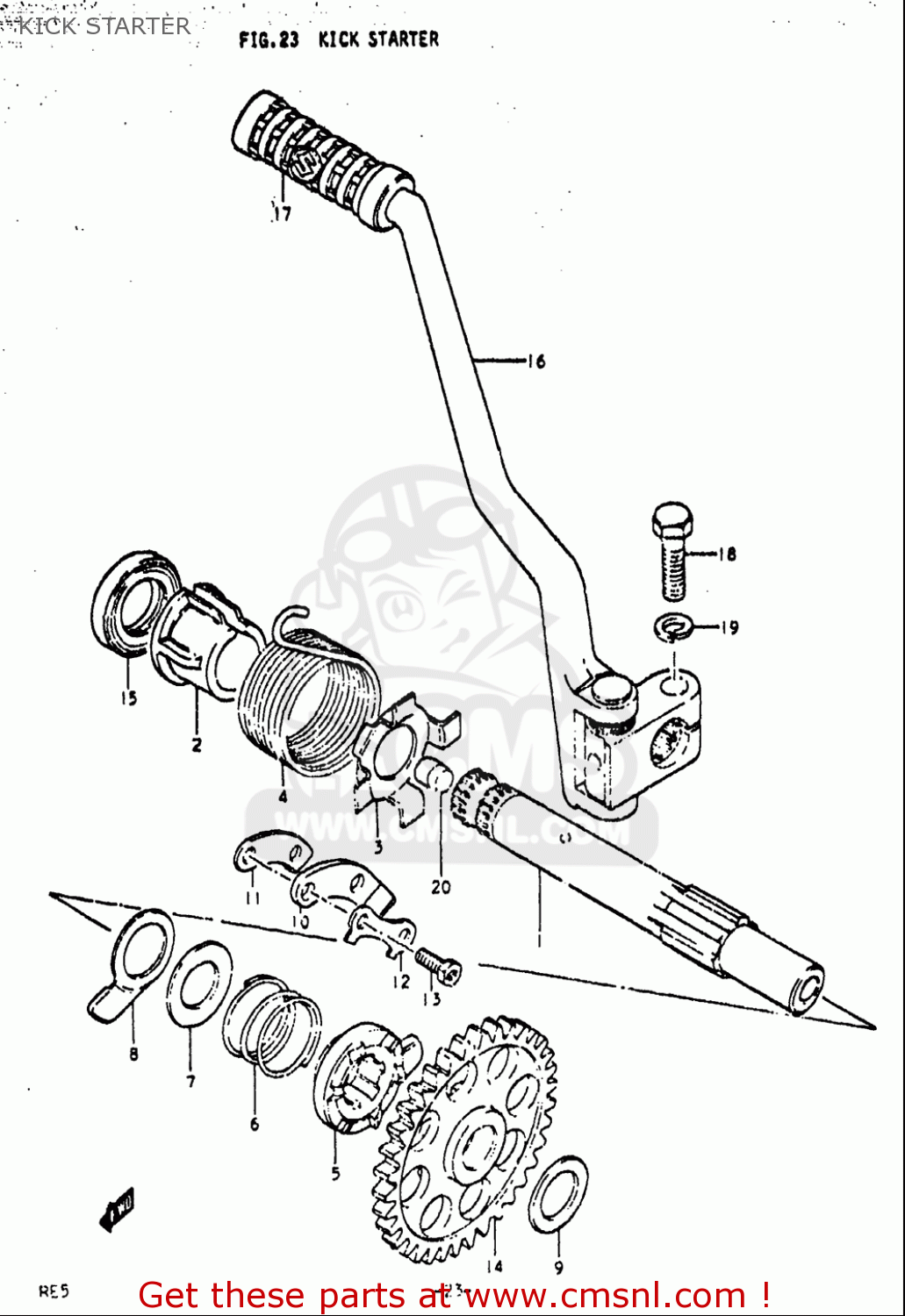

Kick starter diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

KICK STARTER RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

KICK STARTER RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

3

2622230000
ref: 3

HOLDER,KICK SHAFT SPRING

€ 2.50

4

0944847002
ref: 4

SPRING

€ 3.50

5

2623134000
ref: 5

STARTER,KICK

€ 16.50

6

0944032002
ref: 6

SPRING

€ 2.00

9

0821117282
ref: 9

WASHER

€ 3.00

13

0150006167
ref: 13

BOLT

€ 3.00

15

0928320025
ref: 15

SEAL,OIL(20X37X7)

€ 6.50

16

2630031002
ref: 16

LEVER ASSEMBLY,KICK STARTER

€ 101.00

17

2635216401
ref: 17

RUBBER,KICK STARTER PEDAL

€ 4.00

18

0150010303
ref: 18

BOLT

€ 3.00

19

0832101107
ref: 19

WASHER,LOCK

€ 2.00

20

0924309001
ref: 20

PLUG

€ 2.00
