OIL TANK

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

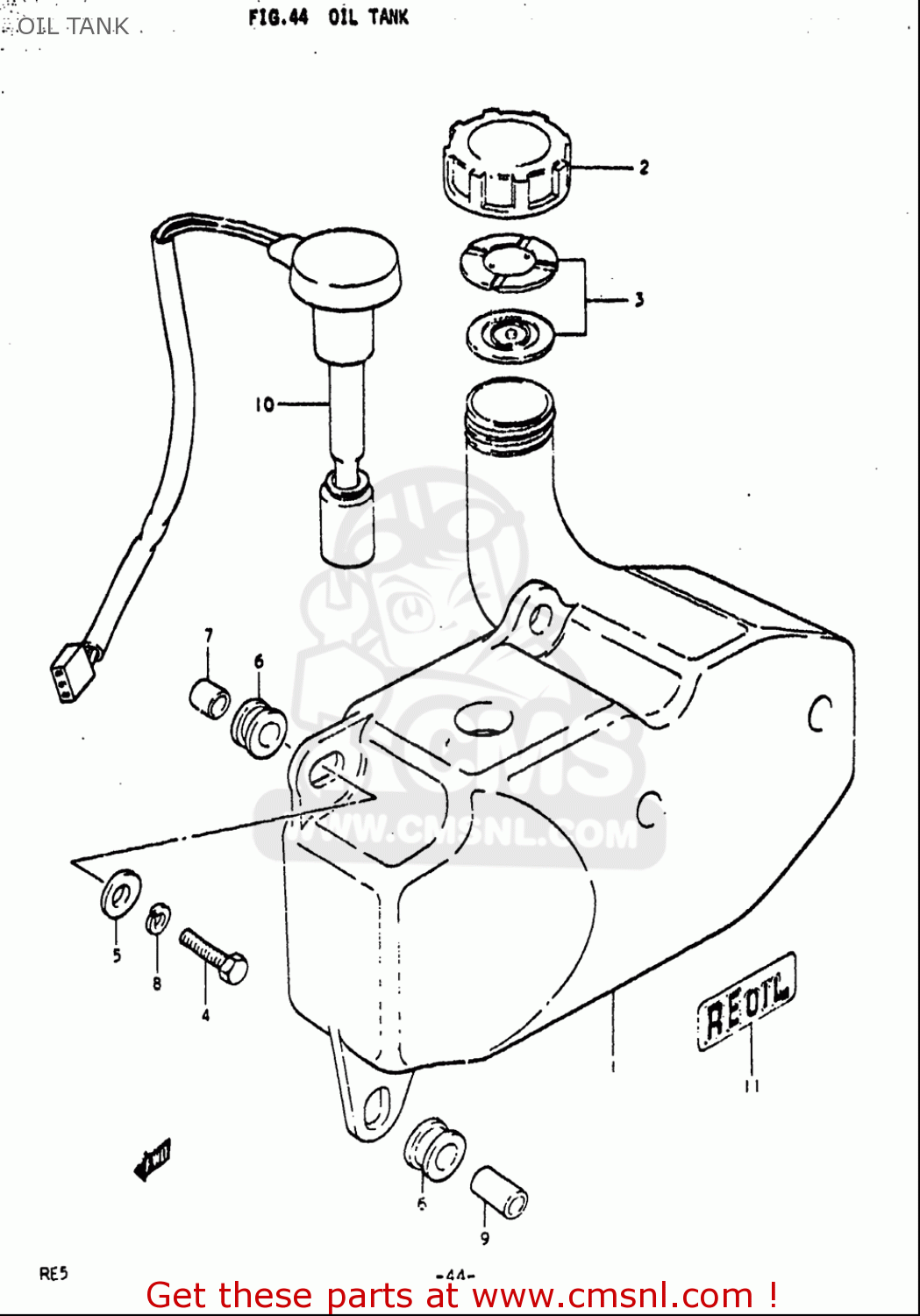

Oil tank diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

OIL TANK RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

OIL TANK RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

0910006153
ref: 4

BOLT 6X23

€ 2.50

5

0916006084
ref: 5

WASHER(6.5X18X1.6)

€ 2.00

6

0932010008
ref: 6

CUSHION

€ 2.50

7

0918006310
ref: 7

SPACER(6.5X10X10)

€ 2.00

8

0832101067
ref: 8

WASHER,LOCK

€ 2.50

9

0918006195
ref: 9

SPACER(6.4X10X18)

€ 3.50
