WIRING HARNESS

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

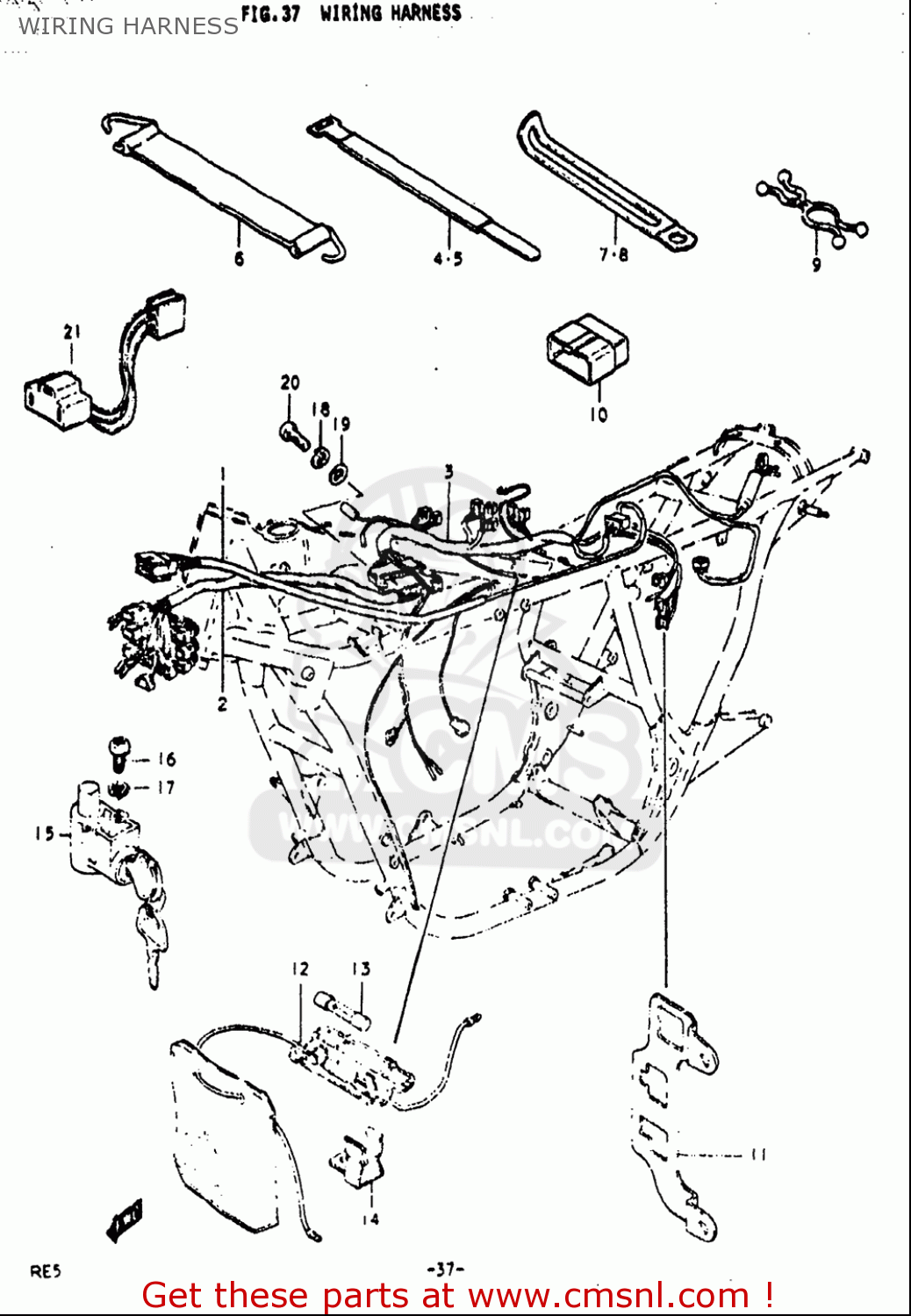

Wiring harness diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

0940718301
ref: 4

CLAMP

€ 6.00

0940714301
ref: 5

CLAMP

€ 6.00

0940408420
ref: 7

CLAMP(L:120 T:1.0)

€ 3.50

0940406432
ref: 8

CLAMP(L:65)

€ 2.50

0940800013
ref: 9

CLAMP

€ 2.00

3674031212
ref: 12

CASE ASSY,FUSE

€ 18.50

0948120001
ref: 13

FUSE(20A)

€ 2.00

5190033811
ref: 15

LOCK ASSY,STEERING

€ 32.50

0211205257
ref: 16

SCREW

€ 2.00

0832101057
ref: 17

WASHER,LOCK

€ 2.00

0832101067
ref: 18

WASHER,LOCK

€ 2.50

083220106A
ref: 19

WASHER

€ 2.00

0211206257
ref: 20

SCREW

€ 2.00

3685330500
ref: 21

LEAD WIRE,HEADLAMP

€ 13.00
