WATER PUMP

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

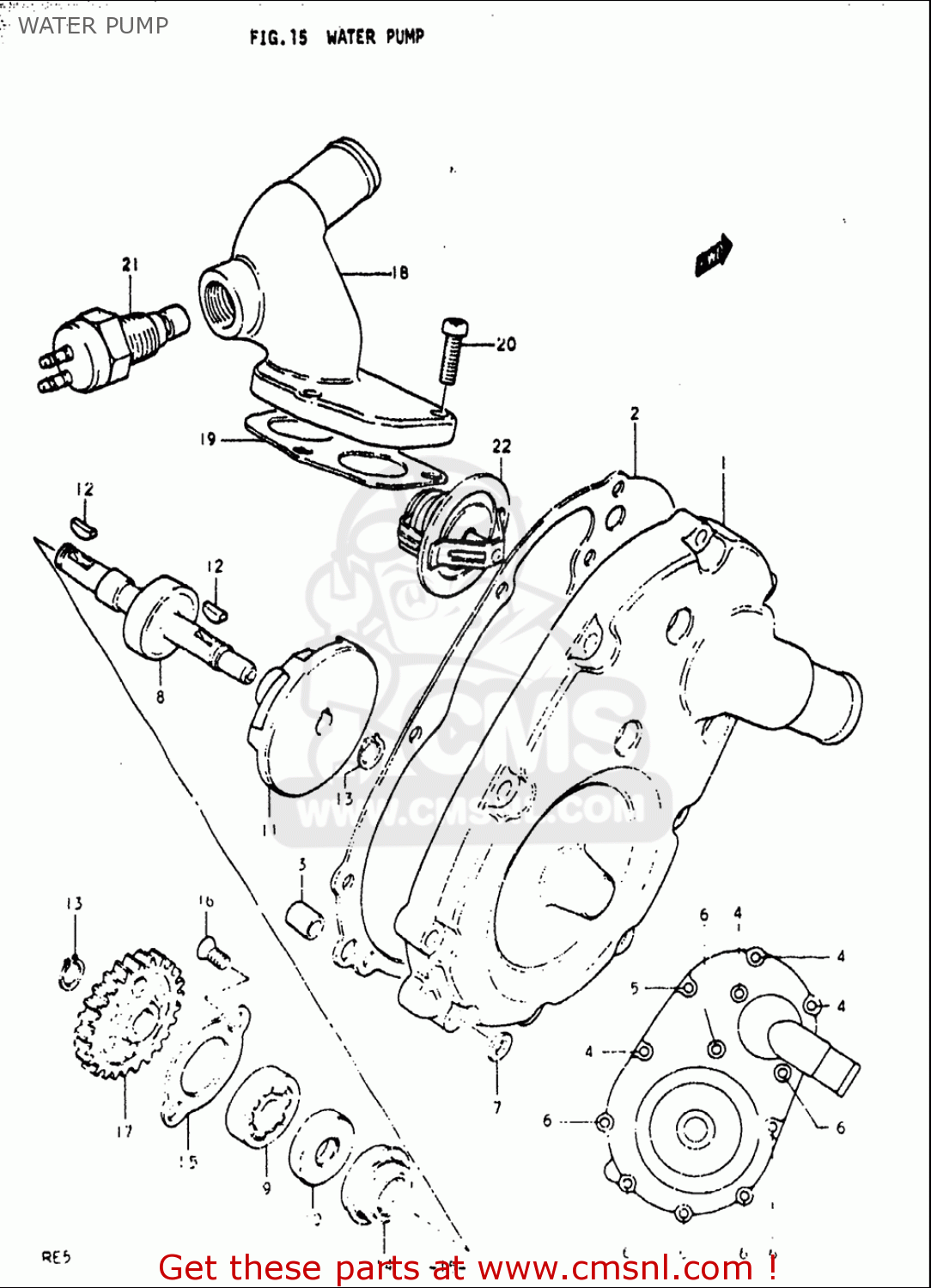

Water pump diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

WATER PUMP RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

WATER PUMP RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

3

0421109129
ref: 3

PIN

€ 2.00

6

0713006257
ref: 6

BOLT

€ 2.50

7

0916406006
ref: 7

WASHER

€ 2.50

9

0811062000
ref: 9

BEARING

€ 7.50

12

0834131039
ref: 12

KEY

€ 2.00

13

083313110A
ref: 13

CIRCLIP

€ 2.00

16

0212206127
ref: 16

SCREW

€ 3.00

20

0211206207
ref: 20

SCREW

€ 2.00
