SEAT

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

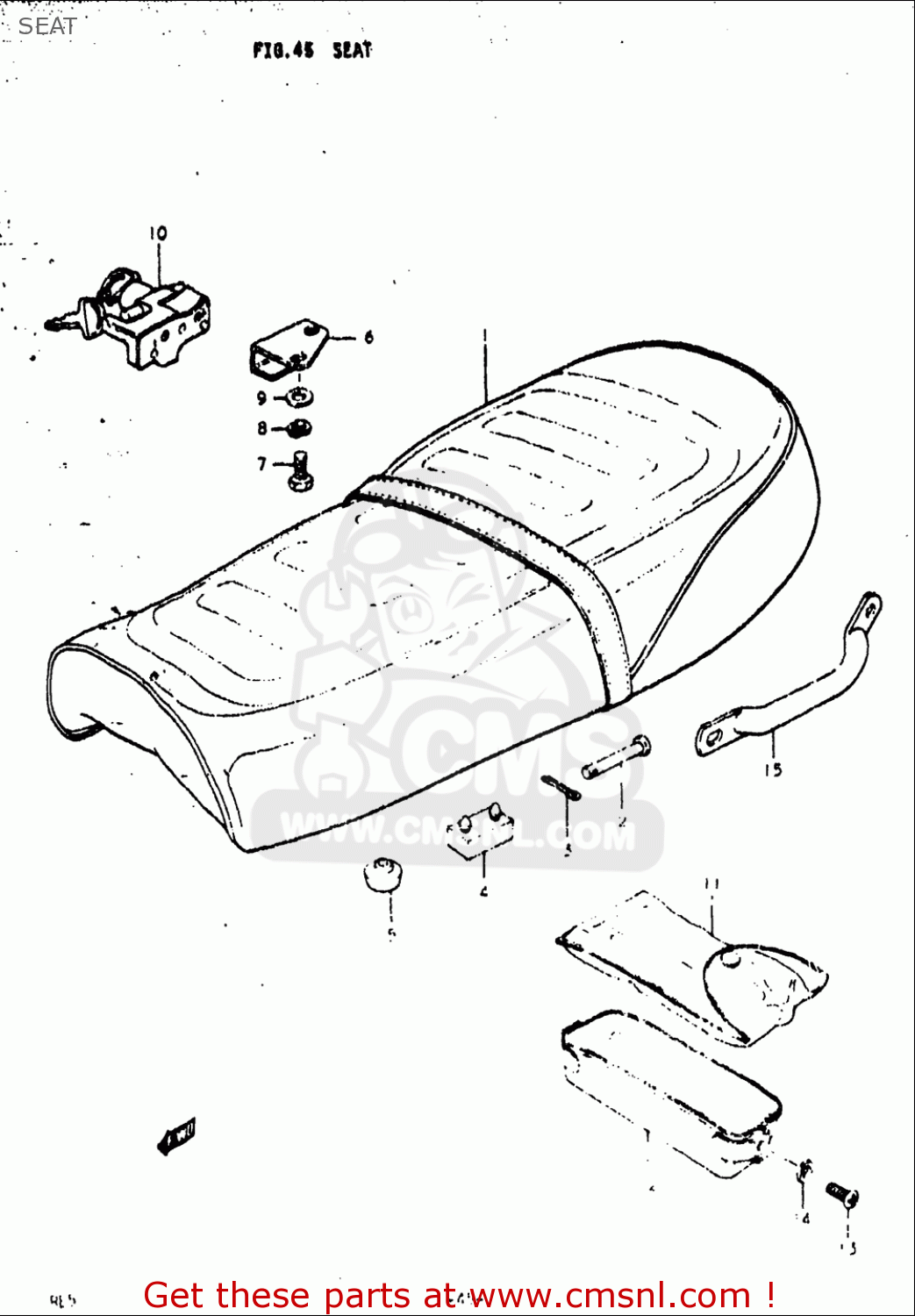

Seat diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

SEAT RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

SEAT RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0920006018
ref: 2

PIN

€ 2.00

3

0411120158
ref: 3

PIN

€ 1.50

4

0932108006
ref: 4

CUSHION

€ 3.00

5

0932110001
ref: 5

CUSHION

€ 2.50

6

4521336200
ref: 6

PLATE,SEAT CLAMP GUIDE

€ 4.00

7

0150006127
ref: 7

BOLT

€ 2.00

8

0832101067
ref: 8

WASHER,LOCK

€ 2.50

9

0832201067
ref: 9

WASHER

€ 2.00

13

0211206127
ref: 13

SCREW

€ 2.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

4141139001
ref: 15

GRIP,FRAME HANDLE

€ 56.50
