COOLING FAN

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

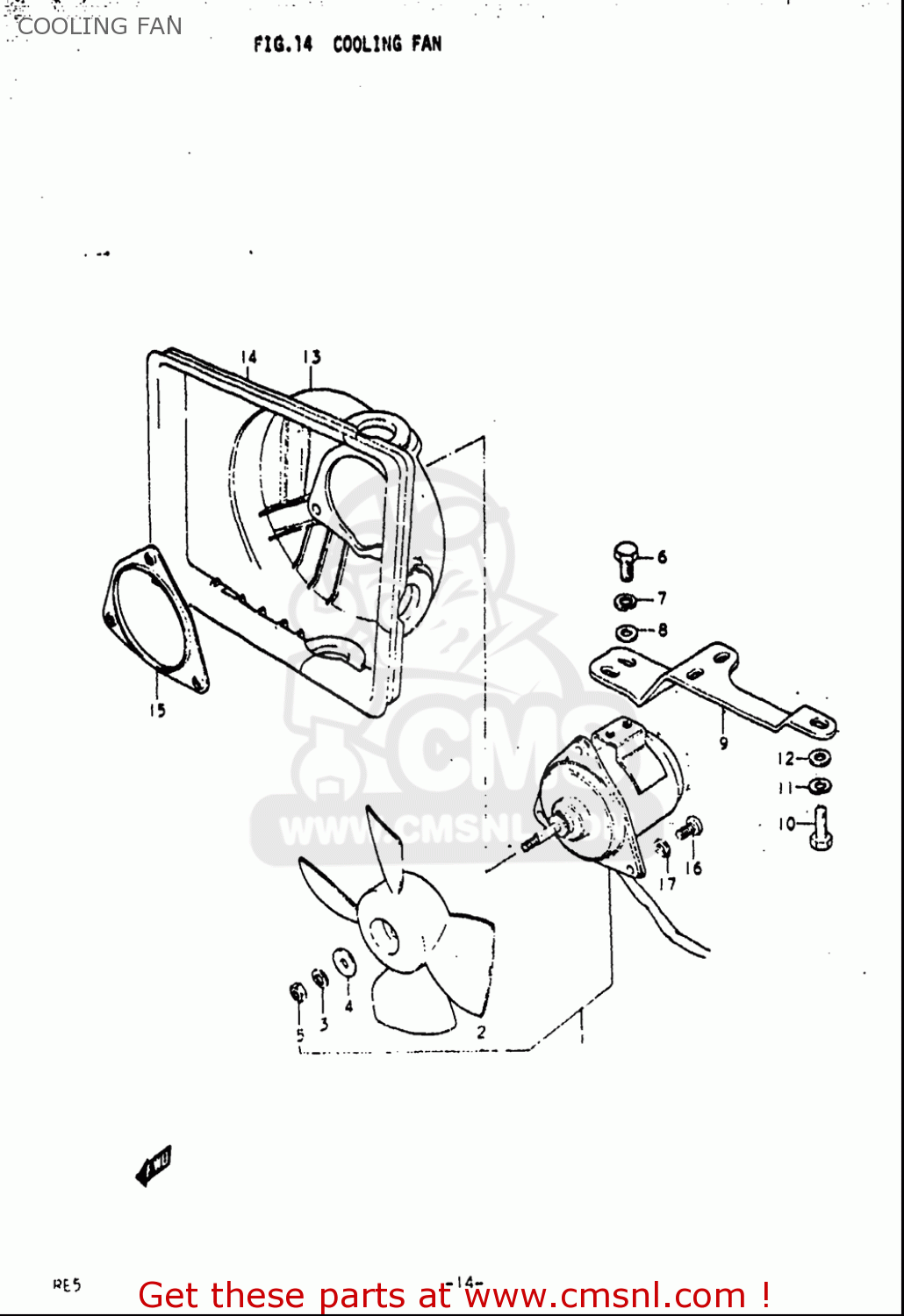

Cooling fan diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

COOLING FAN RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

COOLING FAN RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

3

0832101057
ref: 3

WASHER,LOCK

€ 2.00

4

0832201057
ref: 4

WASHER

€ 2.50

5

0831000057
ref: 5

NUT

€ 2.50

6

0150006127
ref: 6

BOLT

€ 2.00

7

0832101067
ref: 7

WASHER,LOCK

€ 2.50

8

083220106A
ref: 8

WASHER

€ 2.00

10

0150006167
ref: 10

BOLT

€ 3.00

11

0832101067
ref: 11

WASHER,LOCK

€ 2.50

12

083220106A
ref: 12

WASHER

€ 2.00

16

0211206167
ref: 16

SCREW

€ 2.50

17

083220106A
ref: 17

WASHER

€ 2.00
