REAR COMBINATION LAMP (RE5A)

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

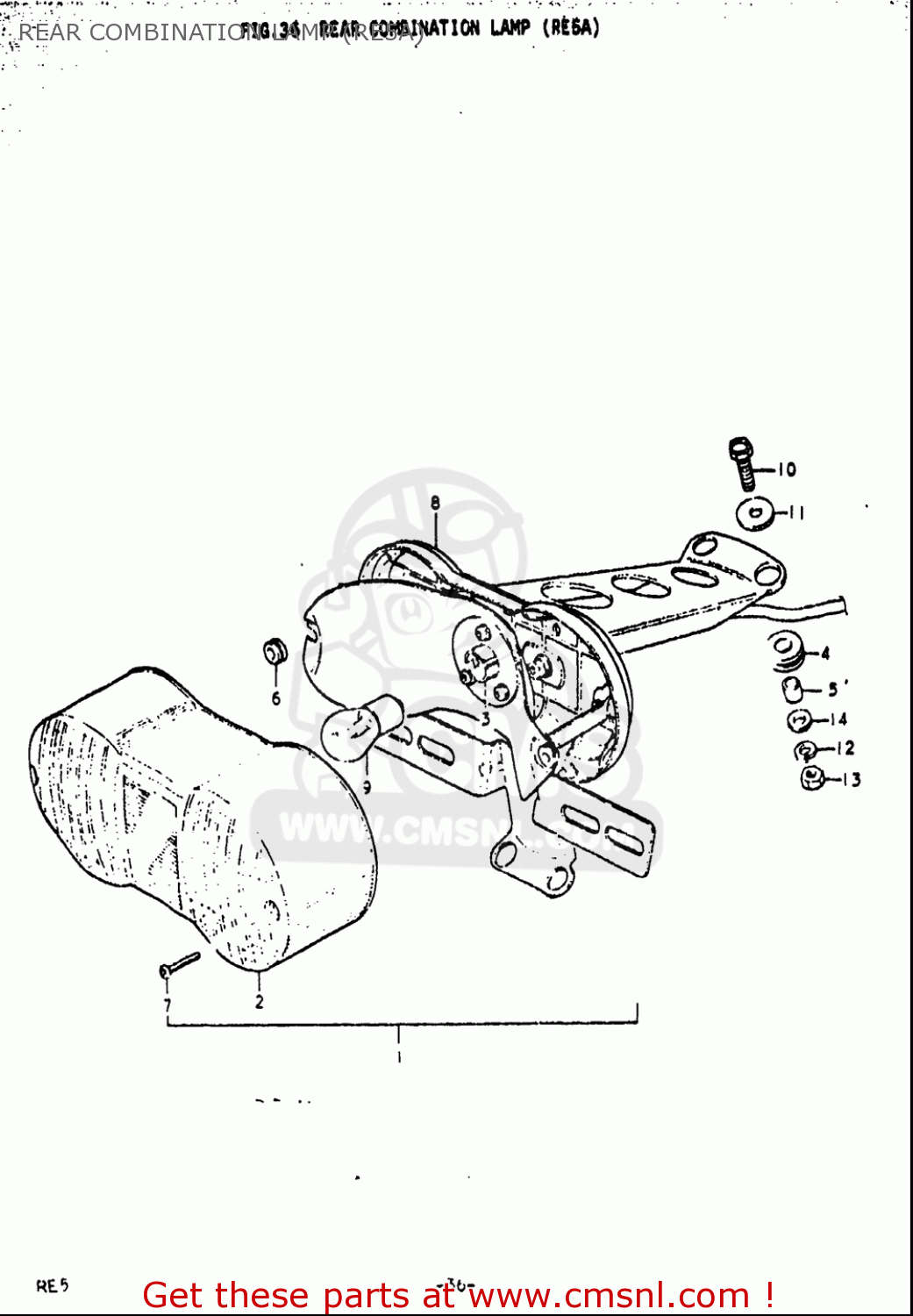

Rear combination lamp (re5a) diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

REAR COMBINATION LAMP (RE5A) RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

REAR COMBINATION LAMP (RE5A) RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

3571227671
ref: 2

LENS,RR COMBINATION LAMP

€ 97.50

4

3576515010
ref: 4

CUSHION

€ 9.00

5

3576637110
ref: 5

SPACER

€ 11.50

6

3576527691
ref: 6

CUSHION

€ 4.50

7

0211204203
ref: 7

SCREW

€ 1.00

8

3571527691
ref: 8

HOUSING,RR COMBINATION LAMP

€ 89.50

9

0947112035
ref: 9

BULB(12V23W)

€ 5.50

10

0150006207
ref: 10

BOLT

€ 2.00

11

0916006066
ref: 11

WASHER(6.5X20X1.6)

€ 2.00

12

0832101067
ref: 12

WASHER,LOCK

€ 2.50

13

0831000067
ref: 13

NUT

€ 2.50

14

0832201067
ref: 14

WASHER

€ 2.00
