MASTER CYLINDER

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

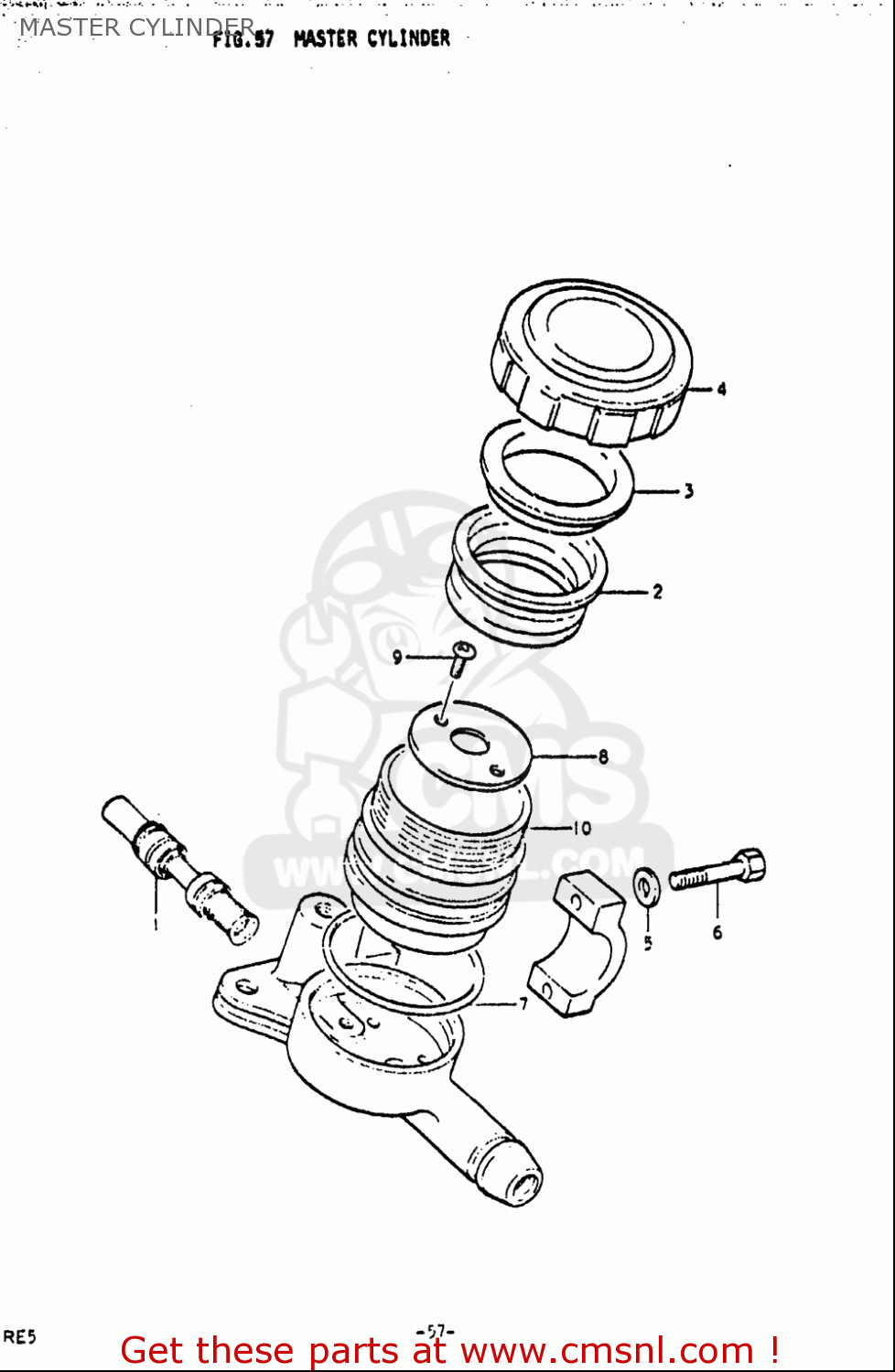

Master cylinder diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

MASTER CYLINDER RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

MASTER CYLINDER RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

0

59600316V0
ref: 0

CYLINDER ASSEMBLY,MASTER

€ 183.00

1

5960045811
ref: 1

PISTON & CUP SET

€ 73.50

2

5966718441
ref: 2

DIAPHRAGM

€ 8.50

3

5966818441
ref: 3

PLATE,DIAPHRAGM

€ 3.50

4

5966907D00
ref: 4

CAP

€ 16.50

5

0832201067
ref: 5

WASHER

€ 2.00

6

0150006257
ref: 6

BOLT

€ 2.00

7

5968633600
ref: 7

O RING

€ 14.00

9

0912503105
ref: 9

SCREW

€ 2.50

10

5968745000
ref: 10

RESERVOIR

€ 28.50
