STARTER CLUTCH

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

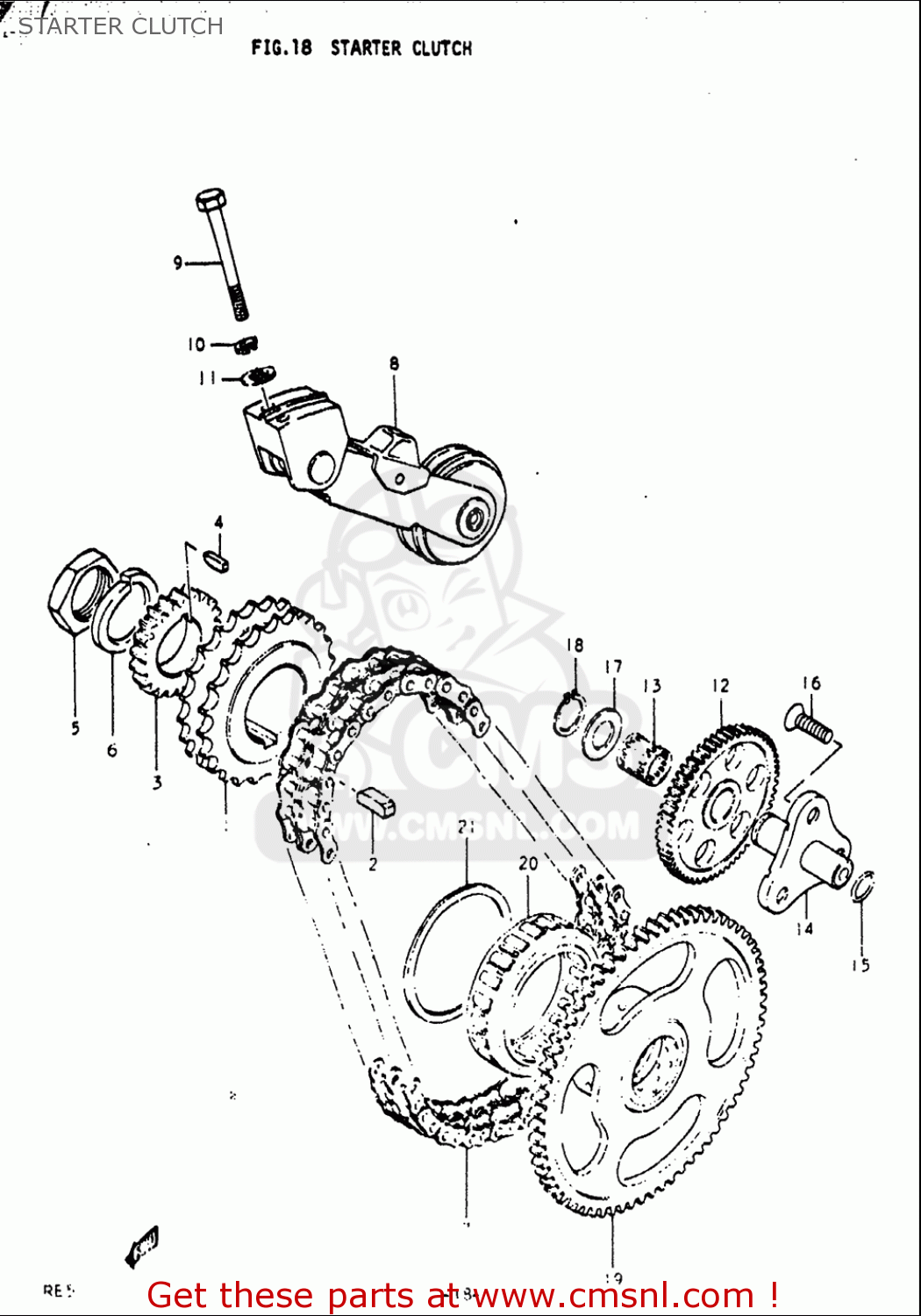

Starter clutch diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

STARTER CLUTCH RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

STARTER CLUTCH RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0942107001
ref: 2

KEY

€ 2.50

4

0834131039
ref: 4

KEY

€ 2.00

9

0150006507
ref: 9

BOLT

€ 3.00

10

0832101067
ref: 10

WASHER,LOCK

€ 2.50

11

0832201067
ref: 11

WASHER

€ 2.00

13

0926314005
ref: 13

BEARING(14X17X16.8)

€ 11.50

15

0928012003
ref: 15

O RING(D:1.3,ID:11.6)

€ 2.00

16

0212206167
ref: 16

SCREW

€ 2.00

17

0918114167
ref: 17

SHIM(14X22X1)

€ 3.50

18

0833131146
ref: 18

CIRCLIP

€ 2.00
