COMBINATION METER (RE5A)

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

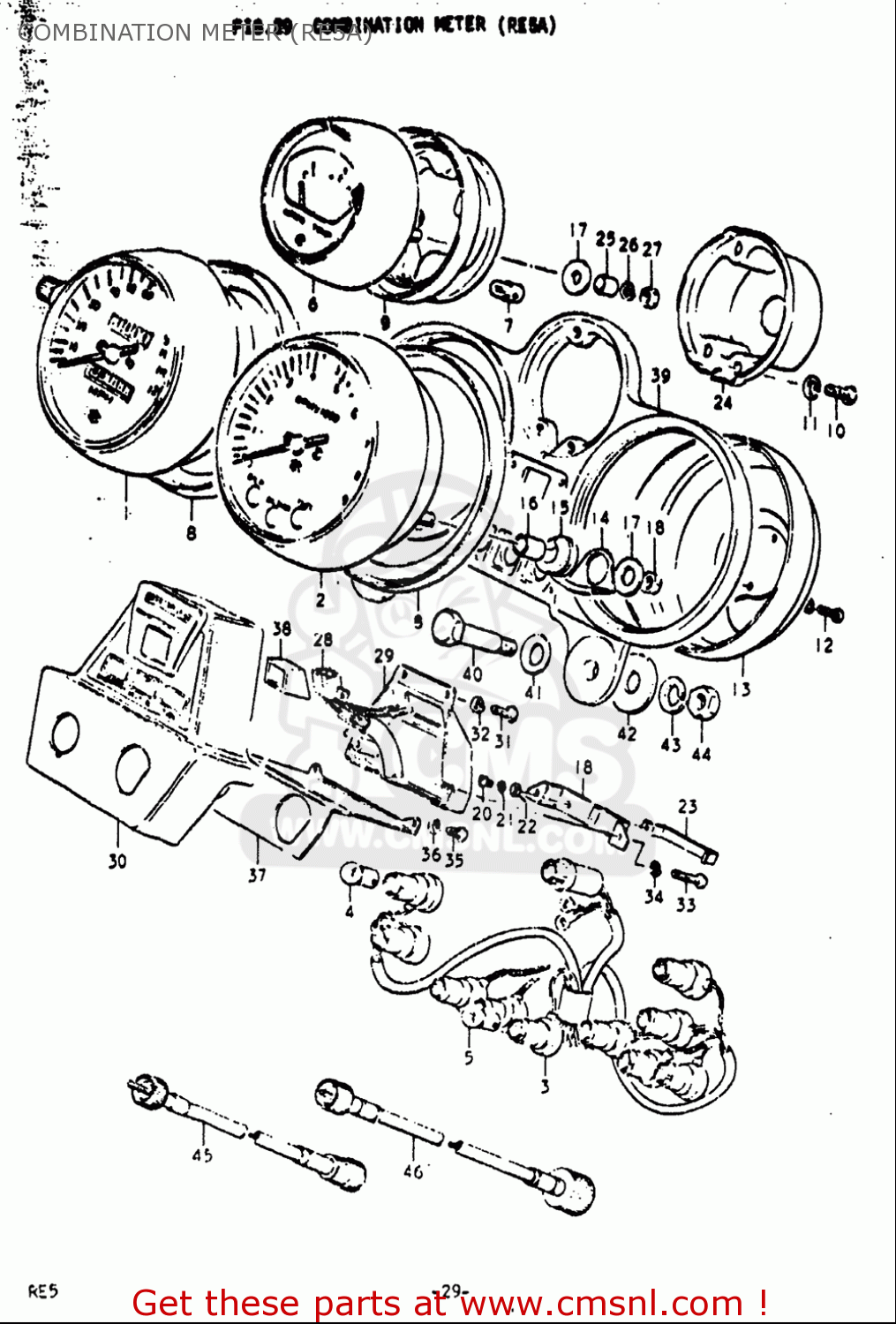

Combination meter (re5a) diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

COMBINATION METER (RE5A) RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
COMBINATION METER (RE5A) RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
COMBINATION METER (RE5A) RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
prices are in EUR
ref
part #
description
quantity
4
0947112001
ref: 4
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
5
0947112004
ref: 5
BULB(12V1.7W,A71A)
0947112004
€ 2.00
7
0947112023
ref: 7
BULB(12V2W,STANLEY,A1272J)
0947112023
€ 8.50
8
3418131000
ref: 8
CUSHION,SPEEDOMETER
3418131000
€ 5.50
10
0211205127
ref: 10
SCREW
0211205127
€ 2.50
11
0832101057
ref: 11
WASHER,LOCK
0832101057
€ 2.00
12
0211203107
ref: 12
SCREW
0211203107
€ 1.50
13
3496031012
ref: 13
PLATE,UNDER
3496031012
€ 39.00
16
3497231012
ref: 16
SPACER,METER
3497231012
€ 2.50
17
0916005043
ref: 17
WASHER(5.5X16X1.2)
0916005043
€ 2.50
18
0831000057
ref: 18
NUT
0831000057
€ 2.50
20
0211203063
ref: 20
SCREW
0211203063
€ 2.00
21
0916203001
ref: 21
WASHER,LOCK
0916203001
€ 1.50
22
0832201037
ref: 22
WASHER
0832201037
€ 2.00
26
0832101043
ref: 26
WASHER,LOCK
0832101043
€ 2.00
27
0831000047
ref: 27
NUT
0831000047
€ 2.00
30
3498031212
ref: 30
CASE,PILOT BULB
3498031212
€ 42.00
31
0211204123
ref: 31
SCREW
0211204123
€ 1.50
32
0832101043
ref: 32
WASHER,LOCK
0832101043
€ 2.00
34
0832101043
ref: 34
WASHER,LOCK
0832101043
€ 2.00
35
0211204063
ref: 35
SCREW 4X6
0211204063
€ 2.00
36
0832101043
ref: 36
WASHER,LOCK
0832101043
€ 2.00
37
3498231920
ref: 37
BRACKET (BB)
3498231920
€ 41.50
40
0911108028
ref: 40
BOLT(8X39.2)
0911108028
€ 4.50
41
0832201107
ref: 41
WASHER
0832201107
€ 2.50
42
0916008135
ref: 42
WASHER(8.5X28X1.6)
0916008135
€ 2.00
43
0832101087
ref: 43
WASHER,LOCK
0832101087
€ 2.00
44
0831000087
ref: 44
NUT
0831000087
€ 2.00
45
3491018990
ref: 45
CABLE ASSY,SPEEDOMETER
3491018990
€ 29.00
