BATTERY

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

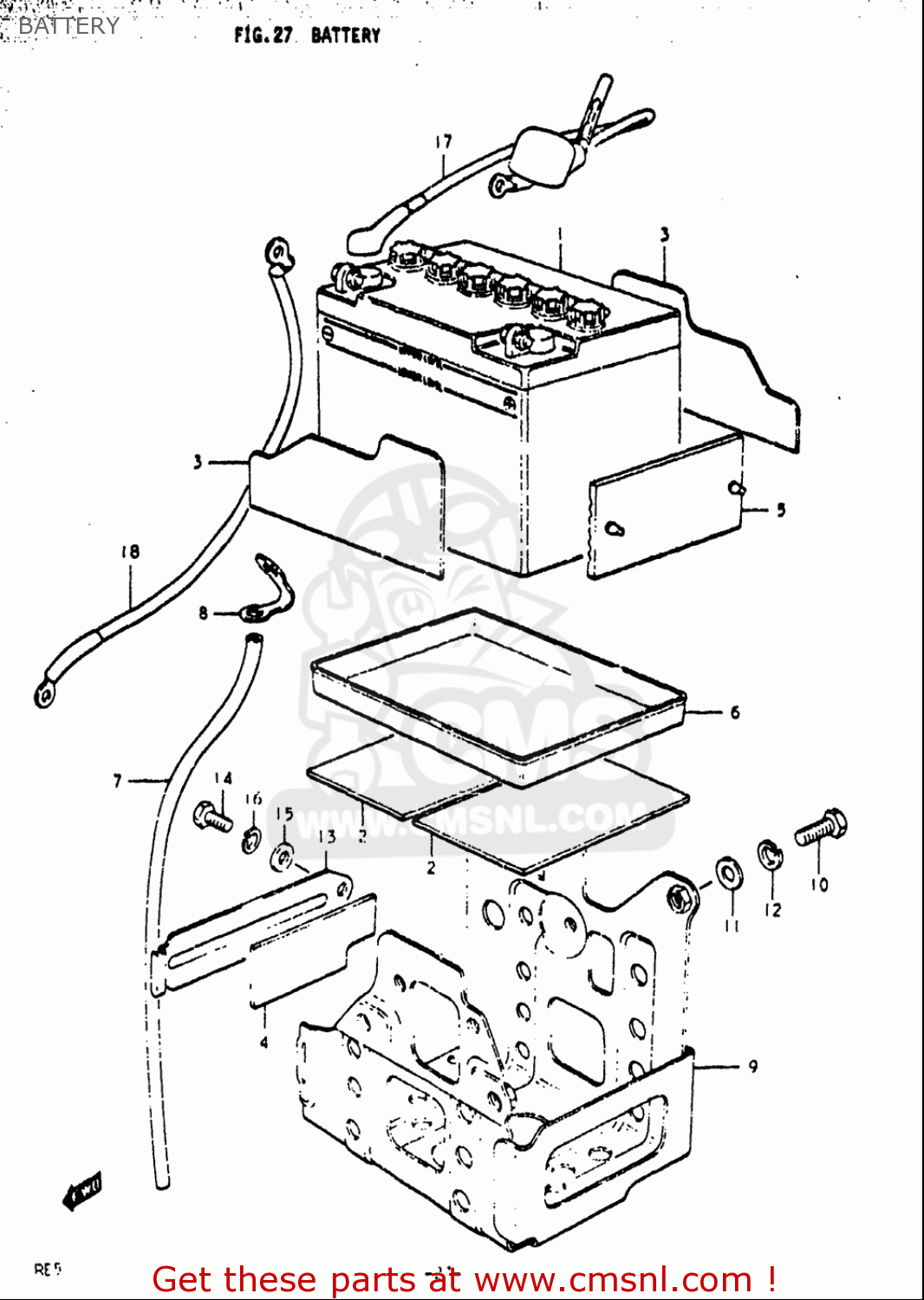

Battery diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

BATTERY RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

BATTERY RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

3

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

5

3365131000
ref: 5

PROTECTOR,BATTERY

€ 29.00

6

3366151020
ref: 6

TRAY,BATTERY

€ 6.50

7

3368016A10
ref: 7

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

8

0940407704
ref: 8

CLAMP

€ 6.50

10

0910008143
ref: 10

BOLT(8X14)

€ 2.50

11

0832201087
ref: 11

WASHER

€ 2.00

12

0832101087
ref: 12

WASHER,LOCK

€ 2.00

14

0150006167
ref: 14

BOLT

€ 3.00

15

0832201067
ref: 15

WASHER

€ 2.00

16

0832101067
ref: 16

WASHER,LOCK

€ 2.50
