CARBURETOR

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

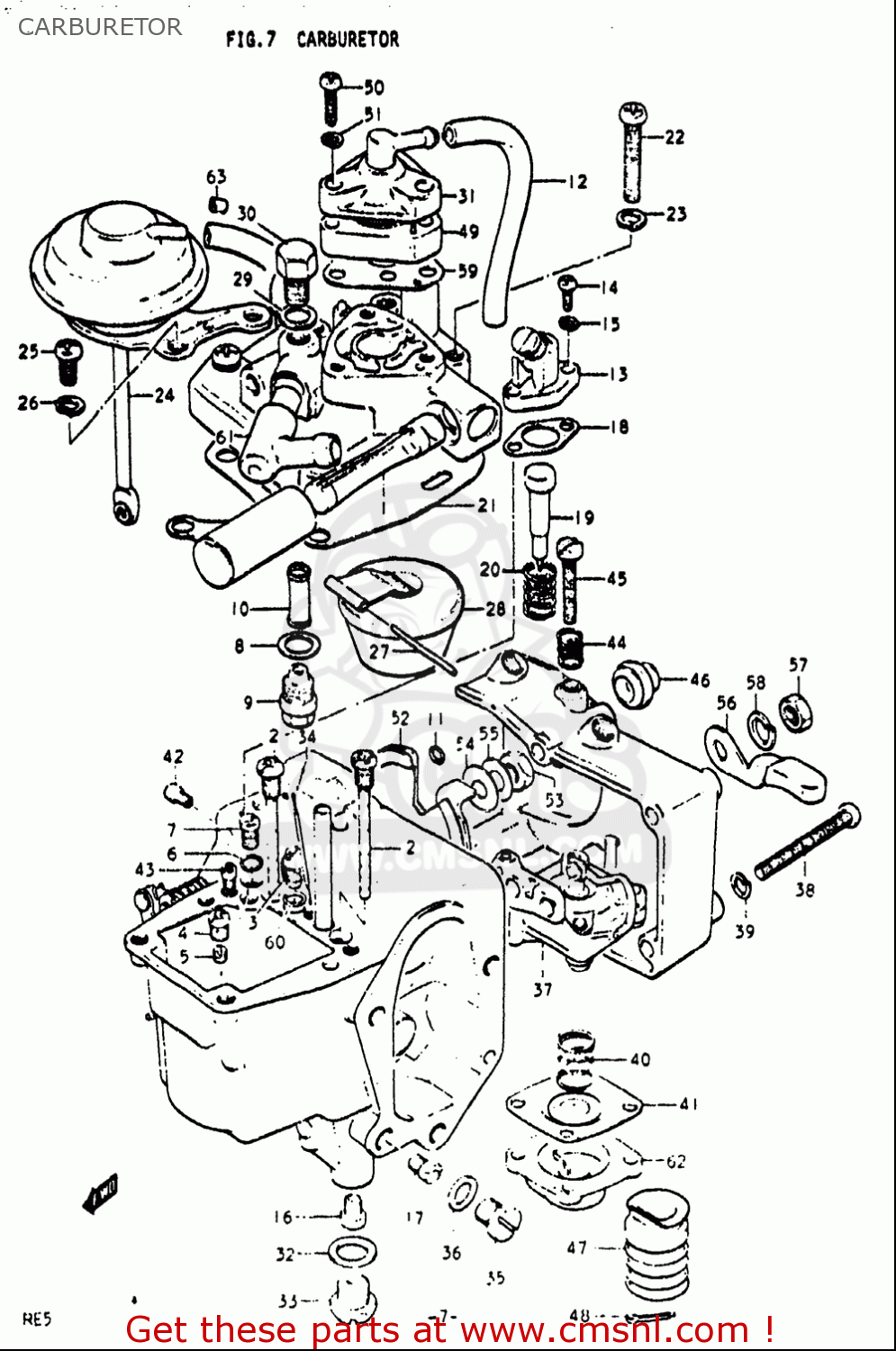

Carburetor diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

CARBURETOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
CARBURETOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
CARBURETOR RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY
prices are in EUR
ref
part #
description
quantity
4
0949328005
ref: 4
JET,AIR(140)
0949328005
€ 10.00
5
0949270004
ref: 5
JET,PILOT(70)
0949270004
€ 9.50
6
1329428010
ref: 6
O RING
1329428010
€ 6.50
7
0949245035
ref: 7
JET,PILOT(45)
0949245035
€ 11.50
8
1339216600
ref: 8
GASKET,MAIN JET HOLDER (NAS)
1339216600
€ 3.00
14
0211204123
ref: 14
SCREW
0211204123
€ 1.50
15
0832101043
ref: 15
WASHER,LOCK
0832101043
€ 2.00
17-1
0949190011
ref: 17-1
JET,MAIN(90)
0949190011
€ 17.50
17-2
0949187004
ref: 17-2
JET,MAIN(87.5)
0949187004
€ 8.00
17-2
0949187004
ref: 17-2
JET,MAIN(87.5)
0949187004
€ 8.00
20
1326896111
ref: 20
SPRING,THROTTLE SCREW
1326896111
€ 4.50
22
0912505105
ref: 22
SCREW
0912505105
€ 4.50
23
0832101057
ref: 23
WASHER,LOCK
0832101057
€ 2.00
25
0211205127
ref: 25
SCREW
0211205127
€ 2.50
26
0832101057
ref: 26
WASHER,LOCK
0832101057
€ 2.00
27
1325465710
ref: 27
PIN, FLOAT
€ 0.00
29
1327437010
ref: 29
WASHER, VALVE SEAT
€ 2.00
35
1366418654
ref: 35
BOLT
1366418654
€ 10.50
38
0211205407
ref: 38
SCREW
0211205407
€ 1.50
39
0832101057
ref: 39
WASHER,LOCK
0832101057
€ 2.00
41
1349137010
ref: 41
DIAPHRAGM
1349137010
€ 28.00
43
0949229001
ref: 43
JET
€ 7.00
44
1326851010
ref: 44
THROTTLE SCREW
€ 1.50
51
0832101043
ref: 51
WASHER,LOCK
0832101043
€ 2.00
53
1360737010
ref: 53
NUT
€ 2.00
58
0832101067
ref: 58
WASHER,LOCK
0832101067
€ 2.50
59
1346737010
ref: 59
GASKET,ENRICHMENT (MCA)
1346737010
€ 3.50
