ELECTRICAL

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

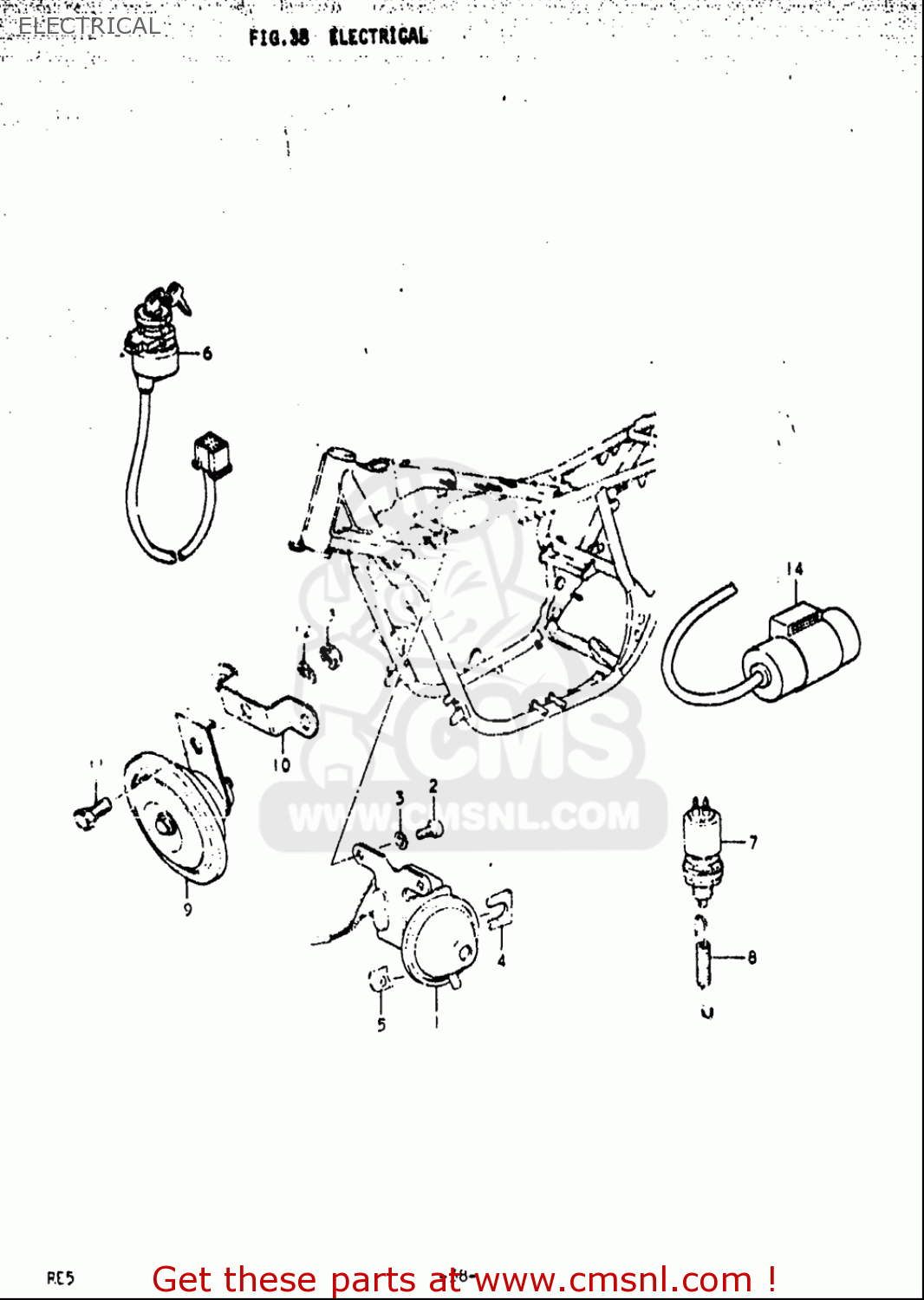

Electrical diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

ELECTRICAL RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

ELECTRICAL RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0150005163
ref: 2

BOLT

€ 1.50

3

0832101057
ref: 3

WASHER,LOCK

€ 2.00

7

3761053011
ref: 7

SWITCH ASSY,BRAKE LAMP

€ 34.50

8

0944306012
ref: 8

SPRING

€ 3.00

9

3850031646
ref: 9

HORN ASSY

€ 165.50

11

0150008127
ref: 11

BOLT

€ 2.50

12

0832101087
ref: 12

WASHER,LOCK

€ 2.00

13

0831000087
ref: 13

NUT

€ 2.00
