CLUTCH

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

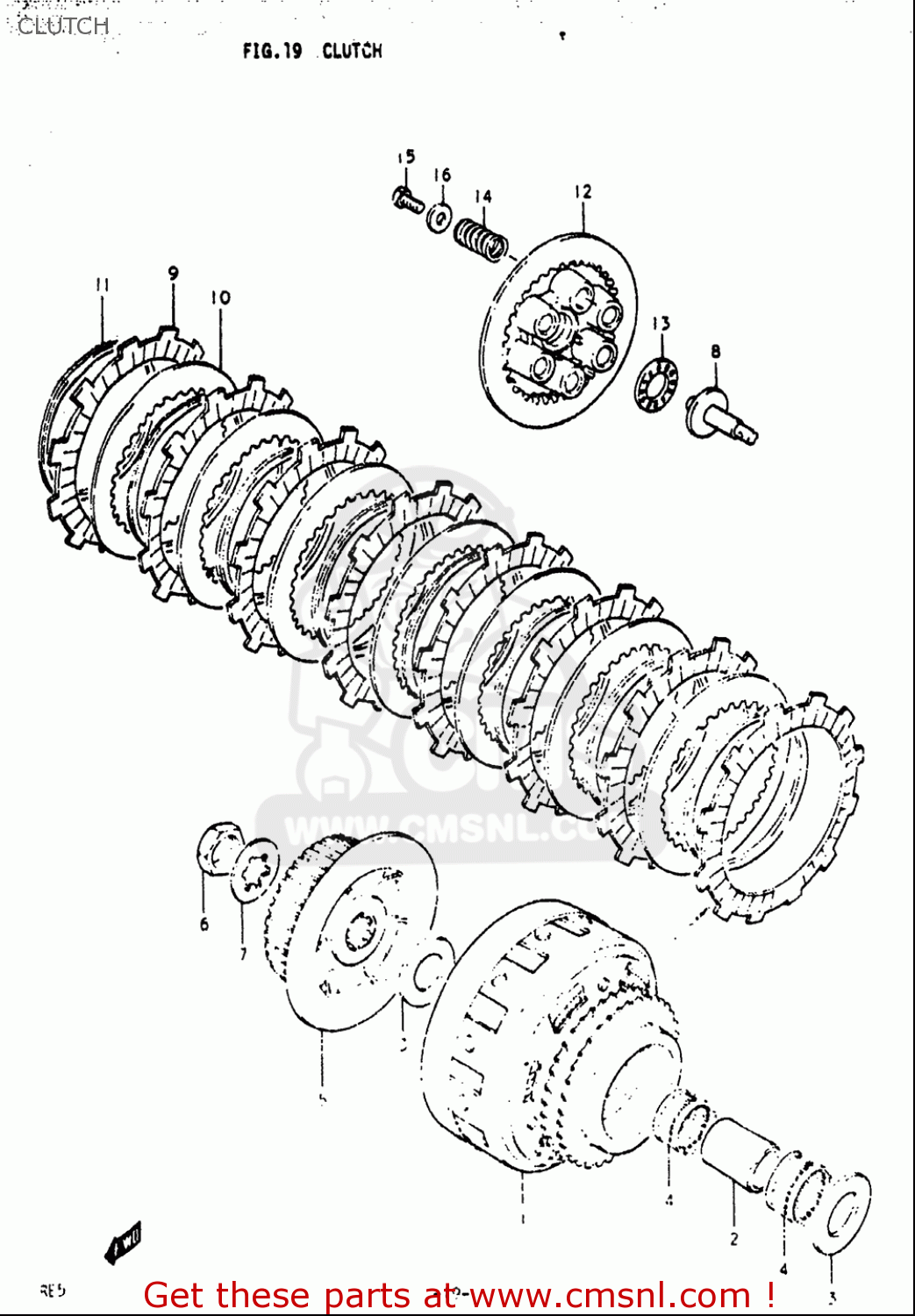

Clutch diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

CLUTCH RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

CLUTCH RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

6

0914024007
ref: 6

NUT

€ 4.50

7

0916725007
ref: 7

WASHER,LOCK

€ 7.50

9

2144137001
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 19.50

10

2145134000
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

11

2148140A00
ref: 11

V RING

€ 7.00

13

0926320002
ref: 13

BEARING(20.1X35X2.8)

€ 14.00

14

0944019007
ref: 14

SPRING

€ 3.00

15

0150006167
ref: 15

BOLT

€ 3.00

16

0916006066
ref: 16

WASHER(6.5X20X1.6)

€ 2.00
