CLUTCH RELEASE

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

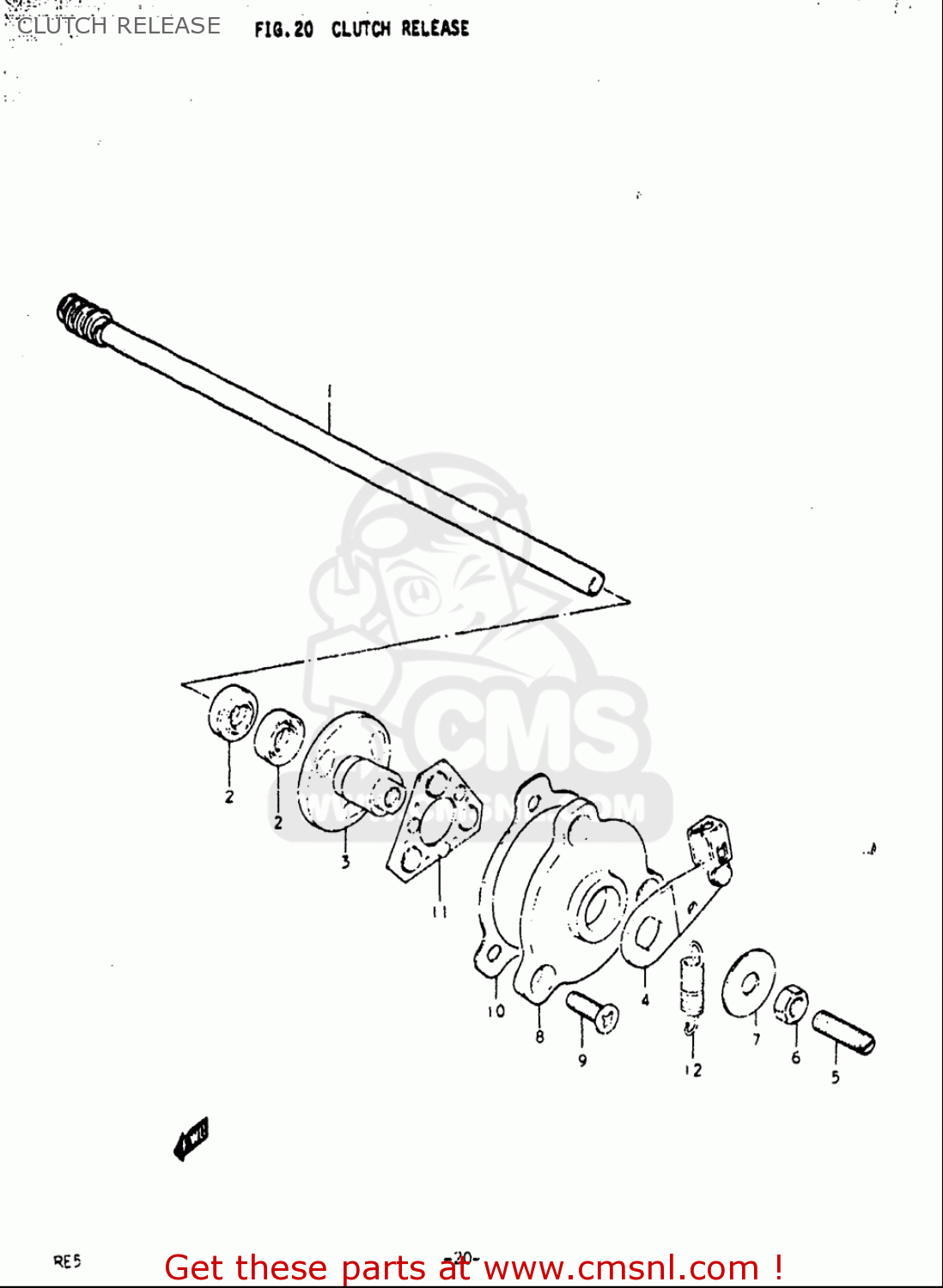

Clutch release diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

CLUTCH RELEASE RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

CLUTCH RELEASE RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

2

0928508006
ref: 2

SEAL,OIL(8X20X7)

€ 17.50

3

2321134001
ref: 3

GUIDE,CLUTCH RELEASE,OUTER

€ 37.00

5

0913408006
ref: 5

SCREW

€ 6.00

6

0831000087
ref: 6

NUT

€ 2.00

7

0916008032
ref: 7

WASHER(8.5X26X1.2)

€ 3.50

9

0212206253
ref: 9

SCREW

€ 2.00

10

2329134010
ref: 10

GASKET,BALL GUIDE (NAS)

€ 6.50

11

2325031003
ref: 11

BALL,CLUTCH RELEASE

€ 23.00

12

0944308001
ref: 12

SPRING

€ 3.00
