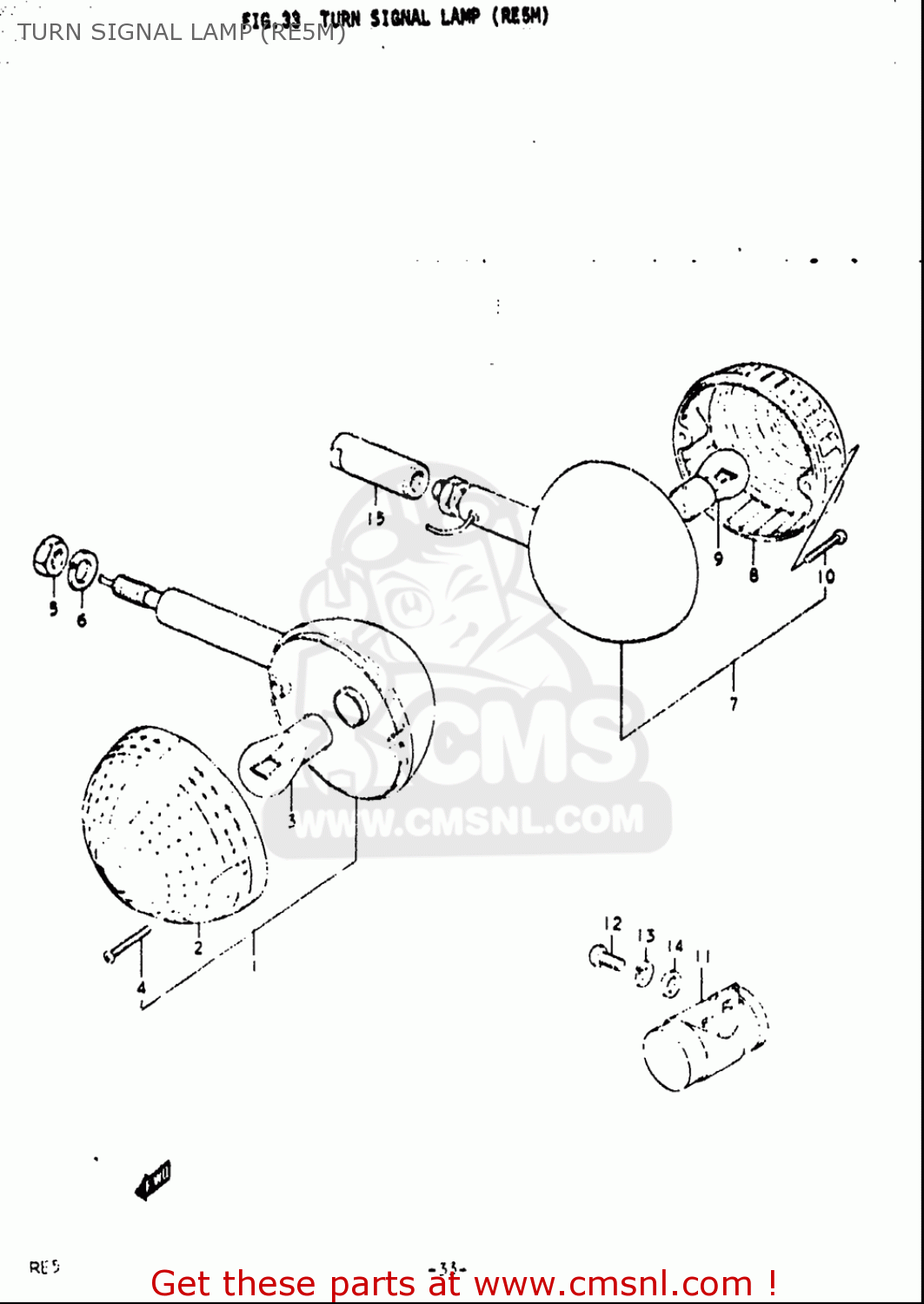

TURN SIGNAL LAMP (RE5M)

RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

Turn signal lamp (re5m) diagram RE5 RE5M RE5A 1975 1976 (M) (A) USA (E03) / 497CC ROTARY

prices are in EUR

ref

part #

description

quantity

0947112006
ref: 3

BULB(12V23W,STANLEY,A4577A)

€ 4.00

0211203205
ref: 4

SCREW

€ 5.00

0831000107
ref: 5

NUT

€ 2.50

0832101107
ref: 6

WASHER,LOCK

€ 2.00

0947112006
ref: 9

BULB(12V23W,STANLEY,A4577A)

€ 4.00

0211203205
ref: 10

SCREW

€ 5.00

3861031X50
ref: 11

RELAY ASSY,TURNSIGNAL

€ 54.50

0211206207
ref: 12

SCREW

€ 2.00

0832101067
ref: 13

WASHER,LOCK

€ 2.50

0832201067
ref: 14

WASHER

€ 2.00
