AIR CLEANER
VZ1600 MARAUDER 2004 (K4) USA (E03)

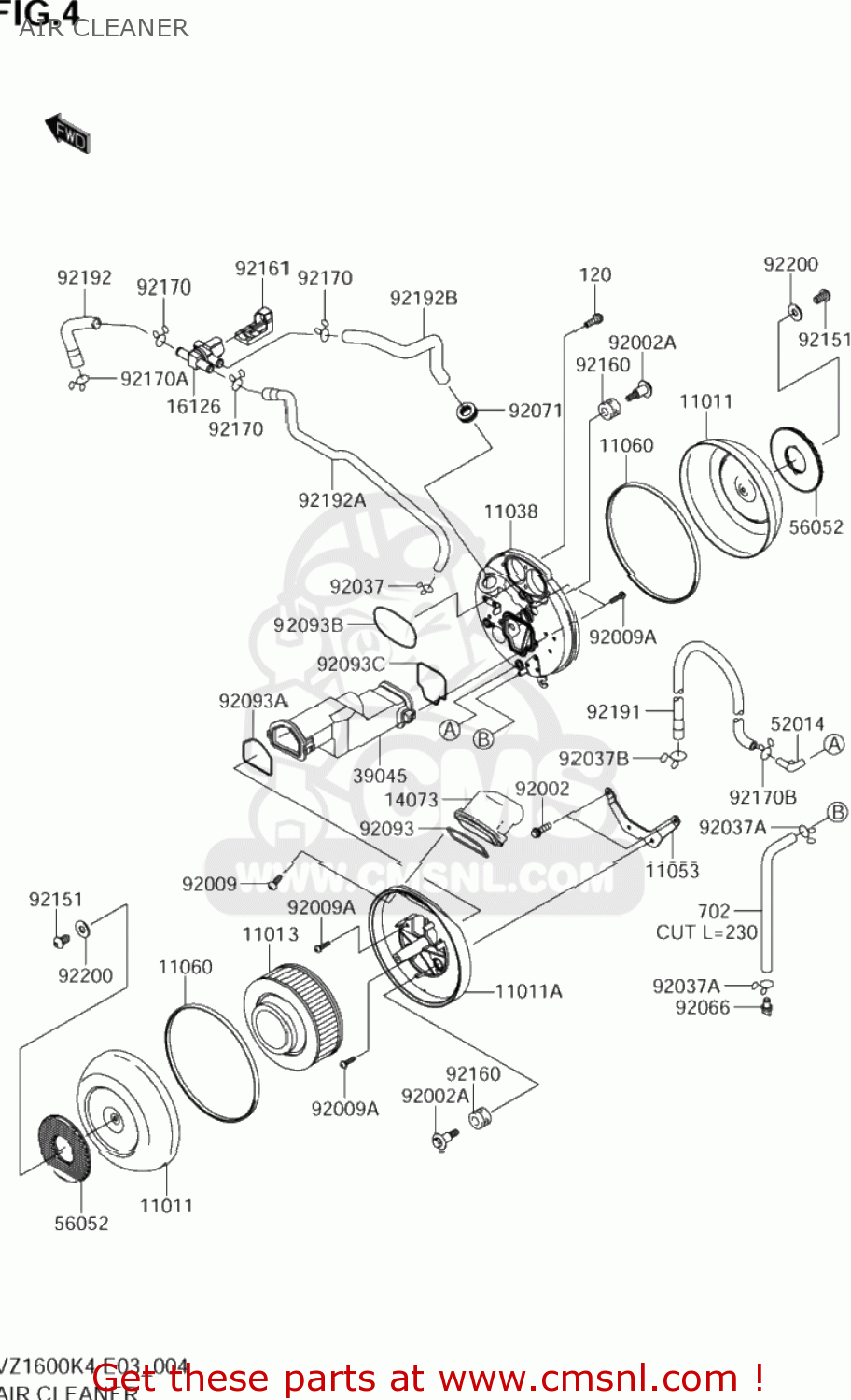

Air cleaner diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
AIR CLEANER VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
120
KK120S0616
ref: 120
BOLT-SOCKET
€ 1.50
702
KKK702A071
ref: 702
TUBE,7X10X1000
€ 10.50
11011
K110110009
ref: 11011
CASE-AIR FILTER
€ 66.50
11011A
K110110020
ref: 11011A
CASE-AIR FILTER,LH
€ 55.00
11013
K110131248
ref: 11013
ELEMENT-AIR FILTER
€ 86.50
11038
K110380005
ref: 11038
CASE-ASSY-AIR FILTER,RH
€ 58.00
11053
K110530231
ref: 11053
BRACKET
€ 9.50
11060
K110601968
ref: 11060
GASKET,AIR FILTER CASE (NAS)
€ 14.00
14073
K140731739
ref: 14073
DUCT,AIR FILTER
€ 19.50
16126
K161261437
ref: 16126
VALVE,AIR CUT
€ 163.00
39045
K390450003
ref: 39045
DUCT-ASSY,CENTER
€ 96.00
52014
K520141083
ref: 52014
ELBOW
€ 4.00
56052
K560520227
ref: 56052
MARK
€ 11.00
92002
K920021570
ref: 92002
BOLT,6X16
€ 4.00
92002A
K920021595
ref: 92002A
BOLT
€ 7.50
92009
K920091264
ref: 92009
SCREW,TAPPING,5X16
€ 3.00
92009A
K920091905
ref: 92009A
SCREW,5X20
€ 1.50
92037
K920371468
ref: 92037
CLAMP
€ 4.50
92037A
KK92037147
ref: 92037A
CLAMP,TUBE
€ 8.00
92037B
K920371593
ref: 92037B
CLAMP
€ 4.00
92066
K920661211
ref: 92066
PLUG,DRAIN
€ 6.00
92071
K920711042
ref: 92071
GROMMET,AIR FILTER
€ 4.50
92093
K920931408
ref: 92093
SEAL,AIR FILTER CASE
€ 4.00
92093A
K920931459
ref: 92093A
SEAL,DUCT,LH
€ 4.00
92093B
K920931485
ref: 92093B
SEAL
€ 4.00
92093C
K920931491
ref: 92093C
SEAL,DUCT,RH
€ 4.00
92151
K921511438
ref: 92151
BOLT,8X14
€ 2.00
92160
K921601594
ref: 92160
DAMPER
€ 3.50
92161
K921610002
ref: 92161
DAMPER
€ 8.50
92170
K921701017
ref: 92170
CLAMP
€ 3.00
92170A
K921701445
ref: 92170A
CLAMP,TUBE
€ 3.50
92170B
K921701695
ref: 92170B
CLAMP
€ 2.00
92191
K921911820
ref: 92191
TUBE,BREATHER
€ 15.00
92192
K921920001
ref: 92192
TUBE,FR HEAD-AIR SWITCH
€ 7.00
92192A
K921920002
ref: 92192A
TUBE,RR HEAD-AIR SWITCH
€ 14.00
92192B
K921920003
ref: 92192B
TUBE,AIR SWITCH-AIR CLEANER
€ 13.00
92200
K922001463
ref: 92200
WASHER,8.5X20X1.6
€ 2.00
