RIGHT ENGINE COVER
VZ1600 MARAUDER 2004 (K4) USA (E03)

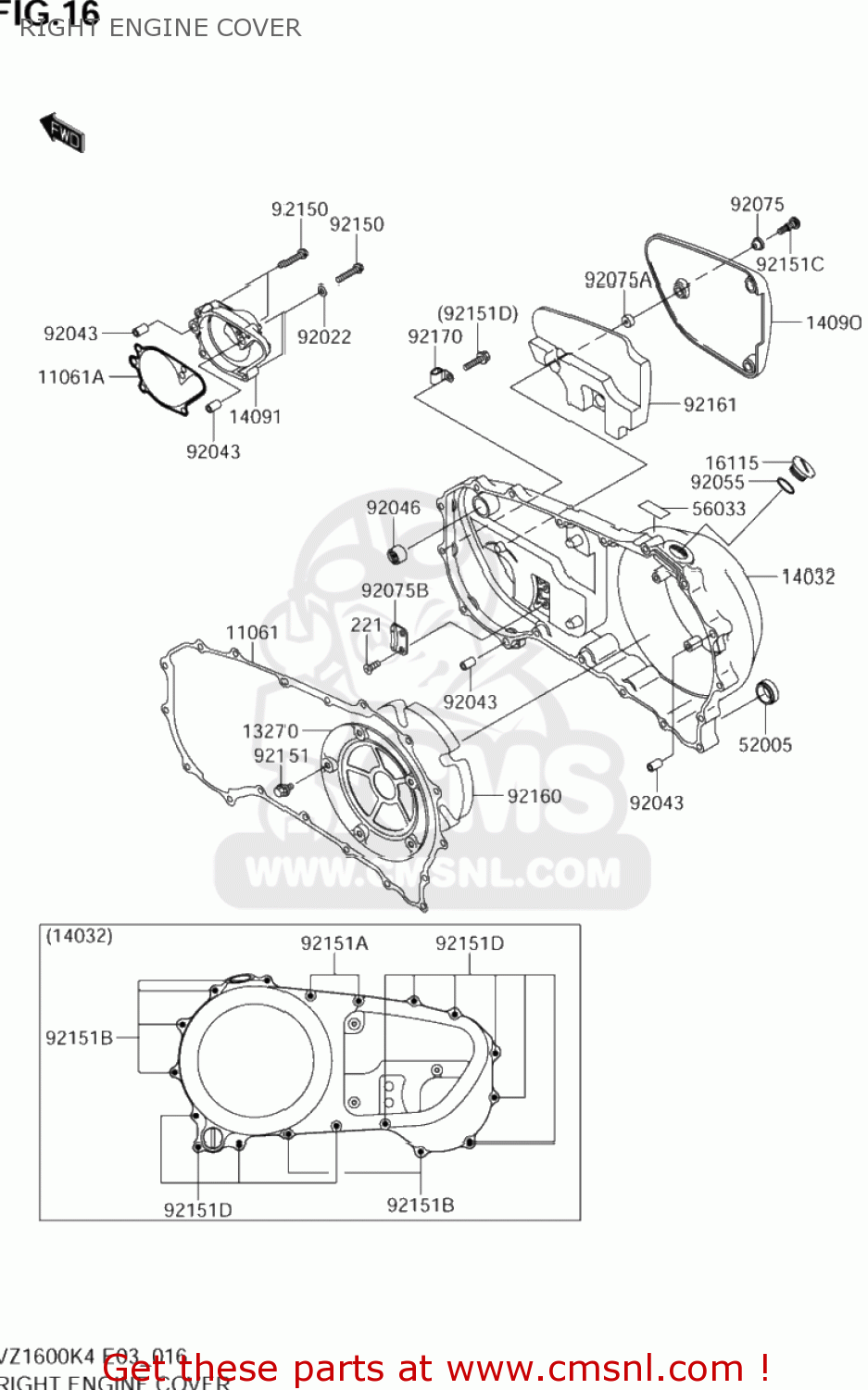

Right engine cover diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
RIGHT ENGINE COVER VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
221
KK221B0612
ref: 221
SCREW-CSK-CROS,6X12
€ 1.50
11061
K110611081
ref: 11061
GASKET,CLUTCH COVER (NAS)
€ 42.00
11061A
K110611172
ref: 11061A
GASKET,WATER PUMP COVER (NAS)
€ 8.00
11061B
K110610107
ref: 11061B
GASKET (NAS)
€ 0.00
13270
K132701592
ref: 13270
PLATE
€ 14.50
14032
K140321493
ref: 14032
COVER-CLUTCH
€ 585.50
14090
K140901678
ref: 14090
COVER,CLUTCH O
€ 91.50
14091
K140910124
ref: 14091
COVER,WATER PU
€ 52.50
16115
K161151063
ref: 16115
CAP-OIL FILLER
€ 19.00
52005
K520051009
ref: 52005
GAUGE,OIL LEVEL
€ 22.50
56033
K560331156
ref: 56033
LABEL-MANUAL,O
€ 2.50
92043
K920431263
ref: 92043
PIN,6.2X8X14
€ 2.50
92046
K920461163
ref: 92046
BEARING-NEEDLE,HK1212
€ 9.50
92055
KK92055049
ref: 92055
RING-O,31.7X2.4
€ 3.50
92075
K920751855
ref: 92075
DAMPER
€ 6.00
92075A
K920751856
ref: 92075A
DAMPER
€ 6.00
92075B
K920751905
ref: 92075B
DAMPER
€ 7.00
92150
K921501021
ref: 92150
BOLT,6X30
€ 3.50
92151
K921511064
ref: 92151
BOLT,6X10
€ 2.00
92151A
K921511134
ref: 92151A
K132B-C0630
BOLT,6X30
€ 1.50
92151B
K921511135
ref: 92151B
BOLT,6X35
€ 3.50
92151C
K921511273
ref: 92151C
BOLT,L=22.5
€ 4.50
92151D
K921511930
ref: 92151D
BOLT
€ 2.50
92160
K921601716
ref: 92160
DAMPER
€ 19.50
92161
K921611139
ref: 92161
DAMPER
€ 50.00
92170
K921701804
ref: 92170
CLAMP
€ 3.50
