OIL PUMP/OIL FILTER
VZ1600 MARAUDER 2004 (K4) USA (E03)

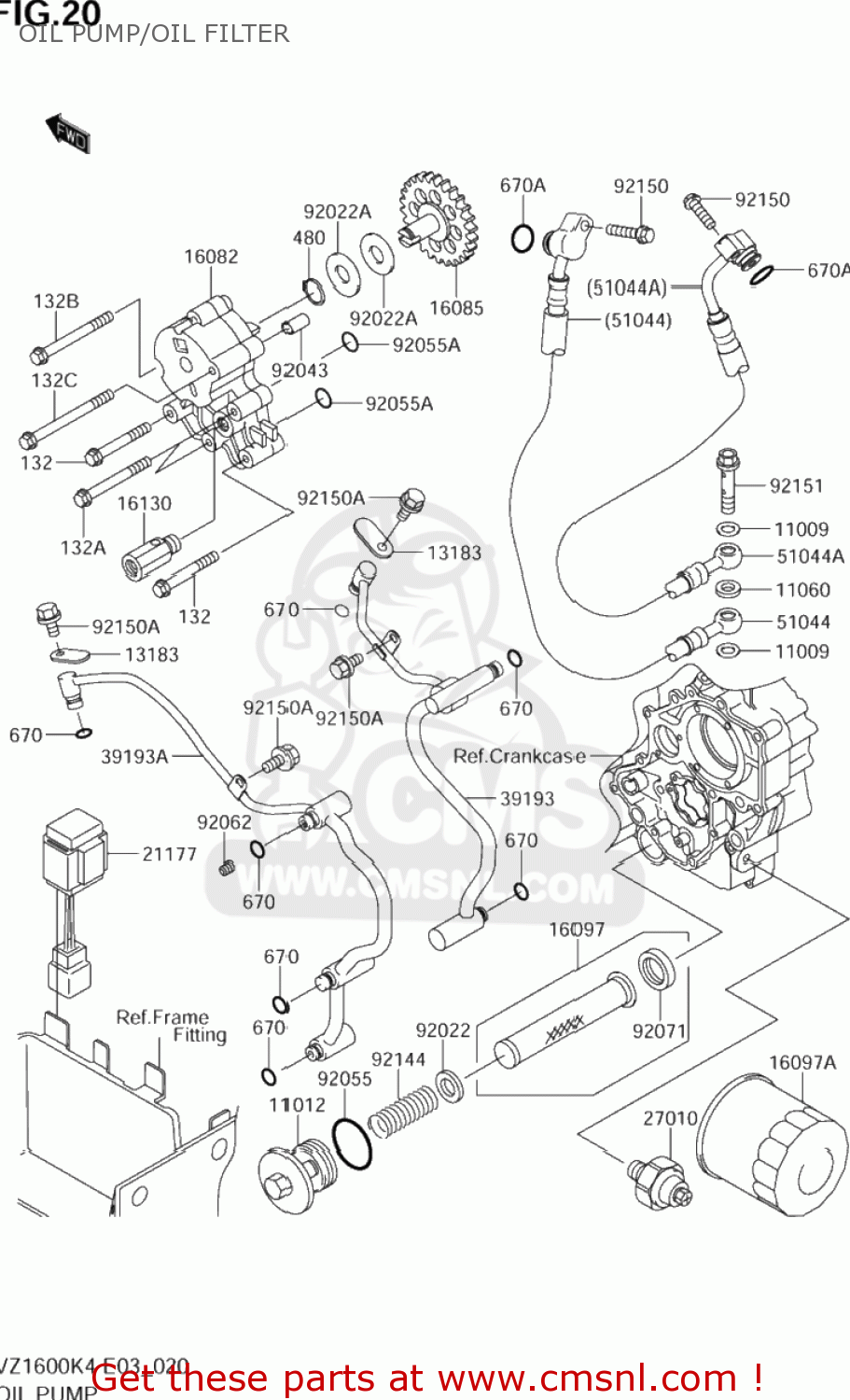

Oil pump/oil filter diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
OIL PUMP/OIL FILTER VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
132
KK132G0645
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
KK132G0655
ref: 132A
BOLT FLANGED,S
€ 2.00
132B
KK132G0660
ref: 132B
K132B-A0660
BOLT FLANGED S
€ 1.50
132C
KK132G0670
ref: 132C
BOLT-FLANGED-SMALL,6X70
€ 2.00
480
KK480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 1.50
670
KK670D1508
ref: 670
O RING,8MM
€ 3.00
670A
KK670D2010
ref: 670A
O RING
€ 4.50
11009
K110091344
ref: 11009
GASKET,OIL PIPE,8.2X14X1.0 (NAS)
€ 6.00
11012
K110121461
ref: 11012
CAP,OIL FILTER
€ 38.50
11060
K110601739
ref: 11060
GASKET,PIPE JOINT (NAS)
€ 2.50
13183
K131831071
ref: 13183
PLATE
€ 4.00
16082
K160821155
ref: 16082
PUMP-ASSY-OIL
€ 267.50
16085
K160851345
ref: 16085
GEAR,OIL PUMP,
€ 52.50
16097
K160971058
ref: 16097
FILTER-ASSY-OIL
€ 20.50
16097A
K160971072
ref: 16097A
K1609-70004
FILTER-ASSY-OI
€ 30.50
16130
K161301059
ref: 16130
VALVE-ASSY-REL
€ 28.50
21177
K211771058
ref: 21177
CONTROLLER,OIL LAMP
€ 63.00
27010
K270101360
ref: 27010
SWITCH,OIL PRE
€ 22.00
39193
K391931071
ref: 39193
PIPE-OIL
€ 80.00
39193A
K391931072
ref: 39193A
PIPE-OIL
€ 80.00
51044
K510440011
ref: 51044
TUBE-ASSY,FR
€ 156.50
51044A
K510440012
ref: 51044A
TUBE-ASSY,RR
€ 156.50
92022
K920221547
ref: 92022
WASHER,20.1X28X1
€ 4.00
92022A
K920221852
ref: 92022A
WASHER,12X27.5X1.0
€ 4.50
92043
K920431263
ref: 92043
PIN,6.2X8X14
€ 2.50
92055
K920551358
ref: 92055
RING-O,35.2X2.4
€ 4.50
92055A
K920551373
ref: 92055A
RING-O,13.2X2.4
€ 3.00
92062
K920621078
ref: 92062
NOZZLE,6X8,GREEN
€ 3.50
92071
KK92071100
ref: 92071
GROMMET,OIL STRAINER
€ 4.00
92144
K921441106
ref: 92144
SPRING
€ 4.50
92150
K921501779
ref: 92150
BOLT,6X25
€ 3.50
92150A
K921501868
ref: 92150A
BOLT-FLANGED-SMALL
€ 2.00
92151
K921511355
ref: 92151
BOLT,8X35
€ 8.00
