FRONT BRAKE(K5)
VZ1600 MARAUDER 2004 (K4) USA (E03)

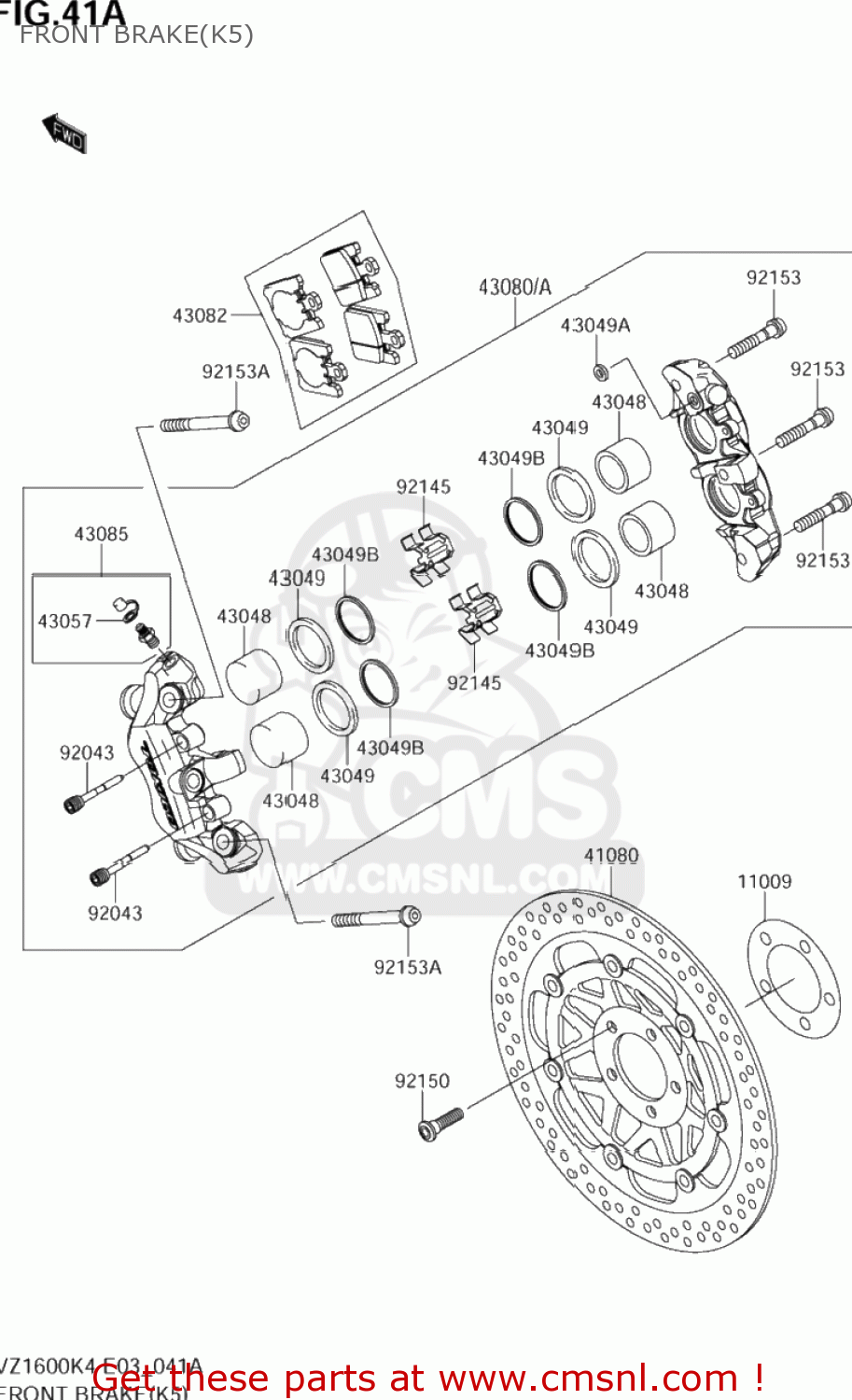

Front brake(k5) diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
FRONT BRAKE(K5) VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
11009
K110091754
ref: 11009
GASKET,DISC PL (NAS)
€ 11.50
41080
K410800072675
ref: 41080
DISC,FR
€ 184.00
43048
K430480004
ref: 43048
PISTON-CALIPER
€ 45.50
43049
K430490003
ref: 43049
PACKING,PISTON (NAS)
€ 9.00
43049A
K430491004
ref: 43049A
PACKING,SEAL,6.5X11.5X2.2 (NAS)
€ 5.00
43049B
K430491107
ref: 43049B
PACKING,WIPER (NAS)
€ 8.00
43057
KK43057003
ref: 43057
CAP-BREATHER
€ 5.50
43080
KK430800017GN
ref: 43080
CALIPER-SUB-ASSY,FR,LH
€ 335.00
43080A
KK430800018GN
ref: 43080A
CALIPER-SUB-ASSY,FR,RH
€ 335.00
43082
K430820031
ref: 43082
PAD-ASSY-BRAKE
€ 71.00
43085
KK43085001
ref: 43085
BLEEDER
€ 19.00
92043
K920431709
ref: 92043
PIN,PAD
€ 6.00
92145
K921451568
ref: 92145
SPRING,PAD
€ 13.00
92150
K921501771
ref: 92150
BOLT,SOCKET,8X30
€ 4.00
92153
K921530360
ref: 92153
BOLT,SOCKET,8X40
€ 4.00
92153A
K921530577
ref: 92153A
K9215-31531
BOLT,SOCKET,10X60
€ 3.50
