CYLINDER HEAD
VZ1600 MARAUDER 2004 (K4) USA (E03)

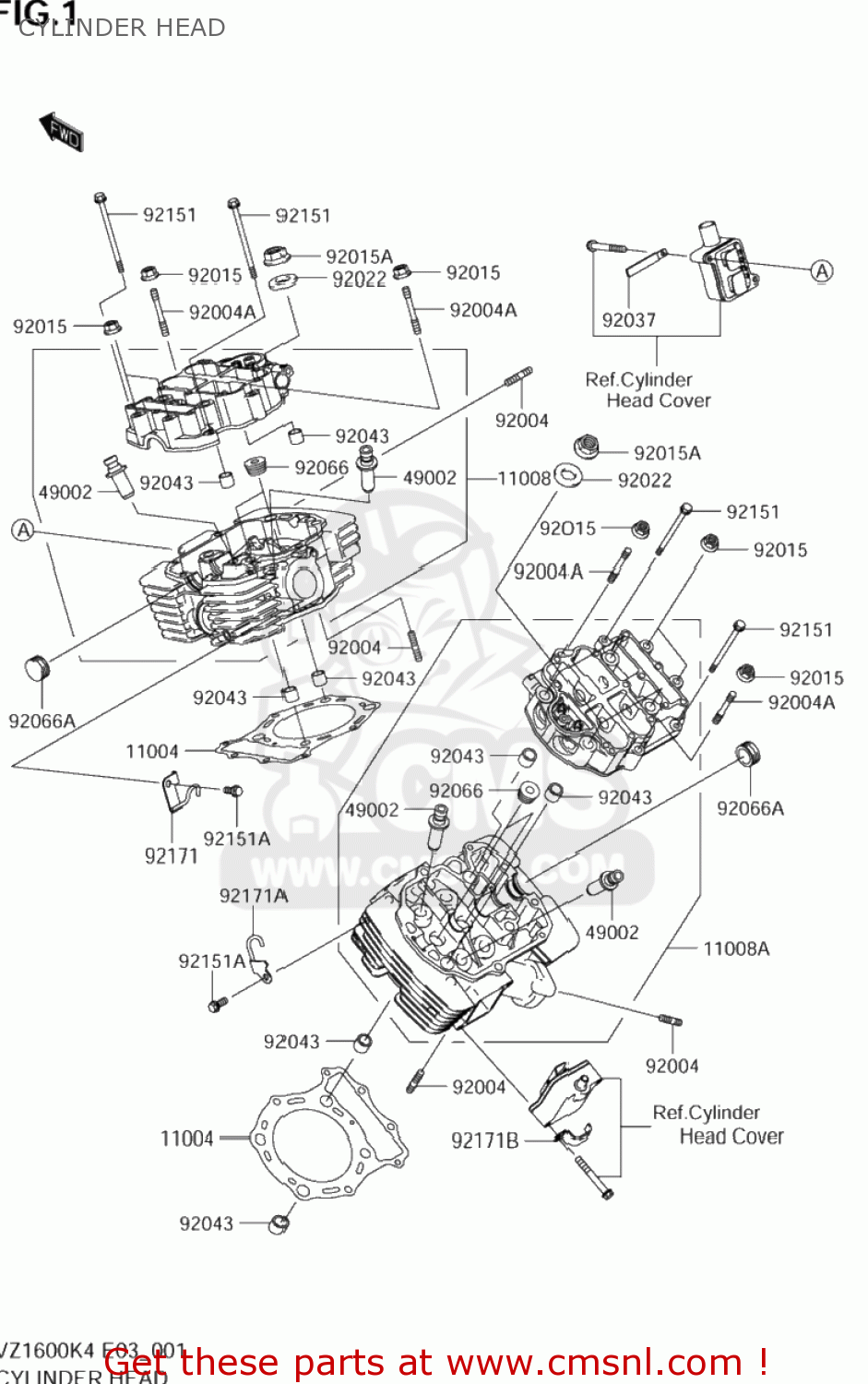

Cylinder head diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
CYLINDER HEAD VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
11004
K110041334
ref: 11004
GASKET-HEAD (NAS)
€ 70.50
11008
K110080011
ref: 11008
HEAD-COMP-CYLI
€ 914.50
11008A
K110080012
ref: 11008A
HEAD-COMP-CYLI
€ 914.50
49002
K490021088
ref: 49002
GUIDE-VALVE
€ 16.00
92004
K920041214
ref: 92004
STUD,8X25
€ 4.00
92004A
K920041224
ref: 92004A
STUD,8X46.5
€ 7.50
92015
K920151406
ref: 92015
NUT,FLANGED,8MM
€ 3.50
92015A
K920151991
ref: 92015A
NUT,12MM
€ 3.00
92022
K920221862
ref: 92022
WASHER,12.3X25X3.2
€ 4.00
92037
K920371539
ref: 92037
CLAMP,L=45
€ 3.50
92043
K920431608
ref: 92043
PIN,13X16X14
€ 3.50
92066
K920660002
ref: 92066
PLUG,PT1/2X12.5
€ 6.00
92066A
K920660031
ref: 92066A
PLUG
€ 7.00
92151
K921511058
ref: 92151
BOLT,6X115
€ 3.50
92151A
K921511423
ref: 92151A
BOLT,6X14
€ 2.00
92171
K921710004
ref: 92171
CLAMP
€ 4.00
92171A
K921710005
ref: 92171A
CLAMP,HEAD,RR
€ 4.00
92171B
K921710011
ref: 92171B
CLAMP
€ 3.50
