CYLINDER/PISTON
VZ1600 MARAUDER 2004 (K4) USA (E03)

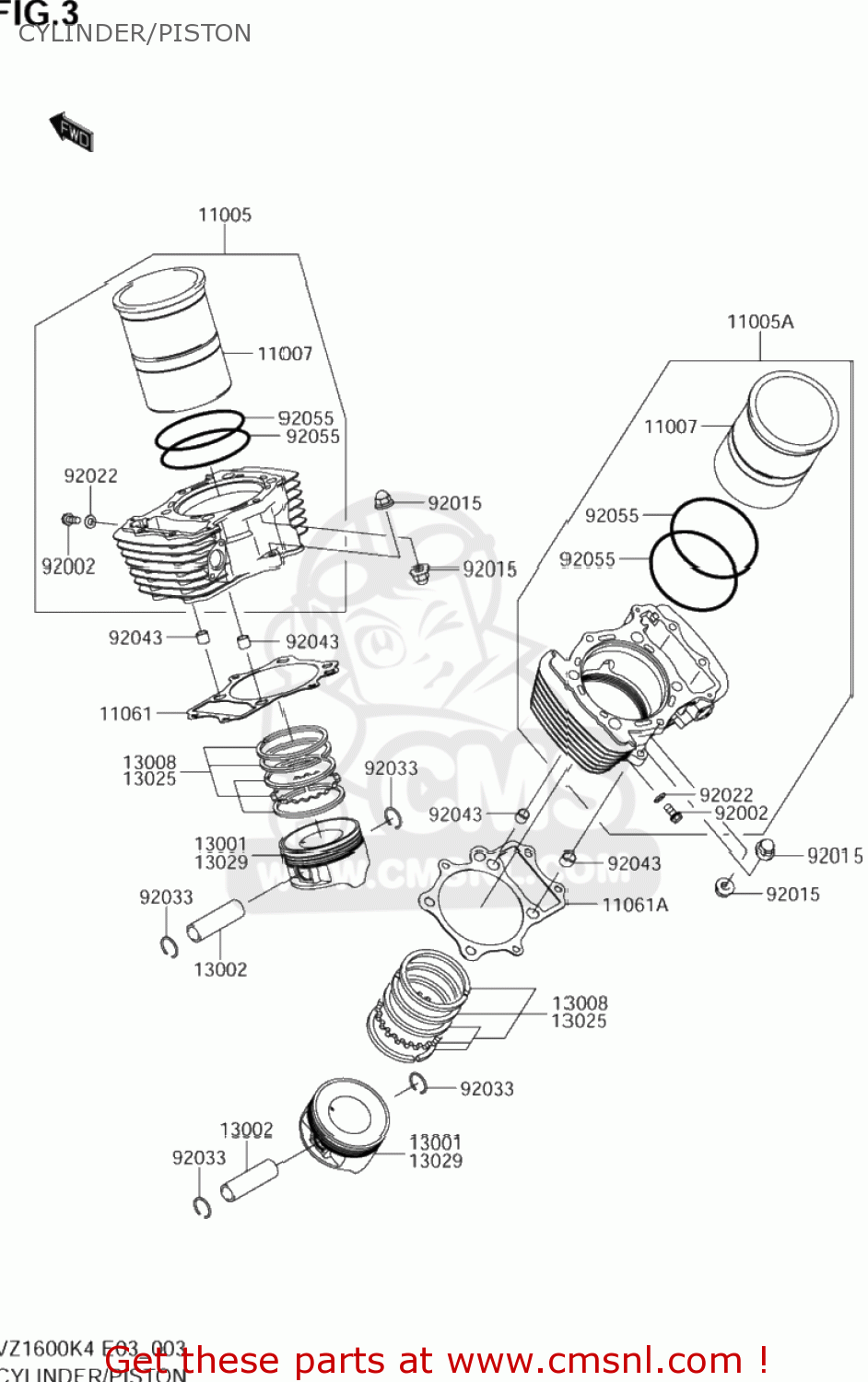

Cylinder/piston diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
CYLINDER/PISTON VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
11005
K110050019
ref: 11005
CYLINDER-ENGIN
€ 713.50
11005A
K110050020
ref: 11005A
CYLINDER-ENGINE,RR
€ 745.50
11007
K110071176
ref: 11007
LINER-CYLINDER
€ 136.50
11061
K110611083
ref: 11061
GASKET,CYLINDER BASE,FR (NAS)
€ 12.00
11061A
K110611084
ref: 11061A
GASKET,CYLINDER BASE,RR (NAS)
€ 13.50
13001
K130010054
ref: 13001
PISTON-ENGINE,
€ 117.00
13002
K130021107
ref: 13002
PIN-PISTON
€ 25.00
13008
K130081218
ref: 13008
RING-SET-PISTON,STD
€ 54.50
13025
K130250004
ref: 13025
RING-SET-PISTON L,O/S 0.50
€ 43.50
13029
K130290014
ref: 13029
PISTON-ENGINE L,O/S 0.50
€ 102.00
92002
K920021569
ref: 92002
BOLT,6X12
€ 3.50
92015
K920151370
ref: 92015
NUT,CAP,8MM
€ 3.00
92022
KK92022077
ref: 92022
WASHER,6.1X12X1
€ 3.00
92033
K920331226
ref: 92033
RING-SNAP
€ 4.00
92043
K920431608
ref: 92043
PIN,13X16X14
€ 3.50
92055
K920551371
ref: 92055
RING-O,110.5X2.5
€ 7.00
