REAR BRAKE
VZ1600 MARAUDER 2004 (K4) USA (E03)

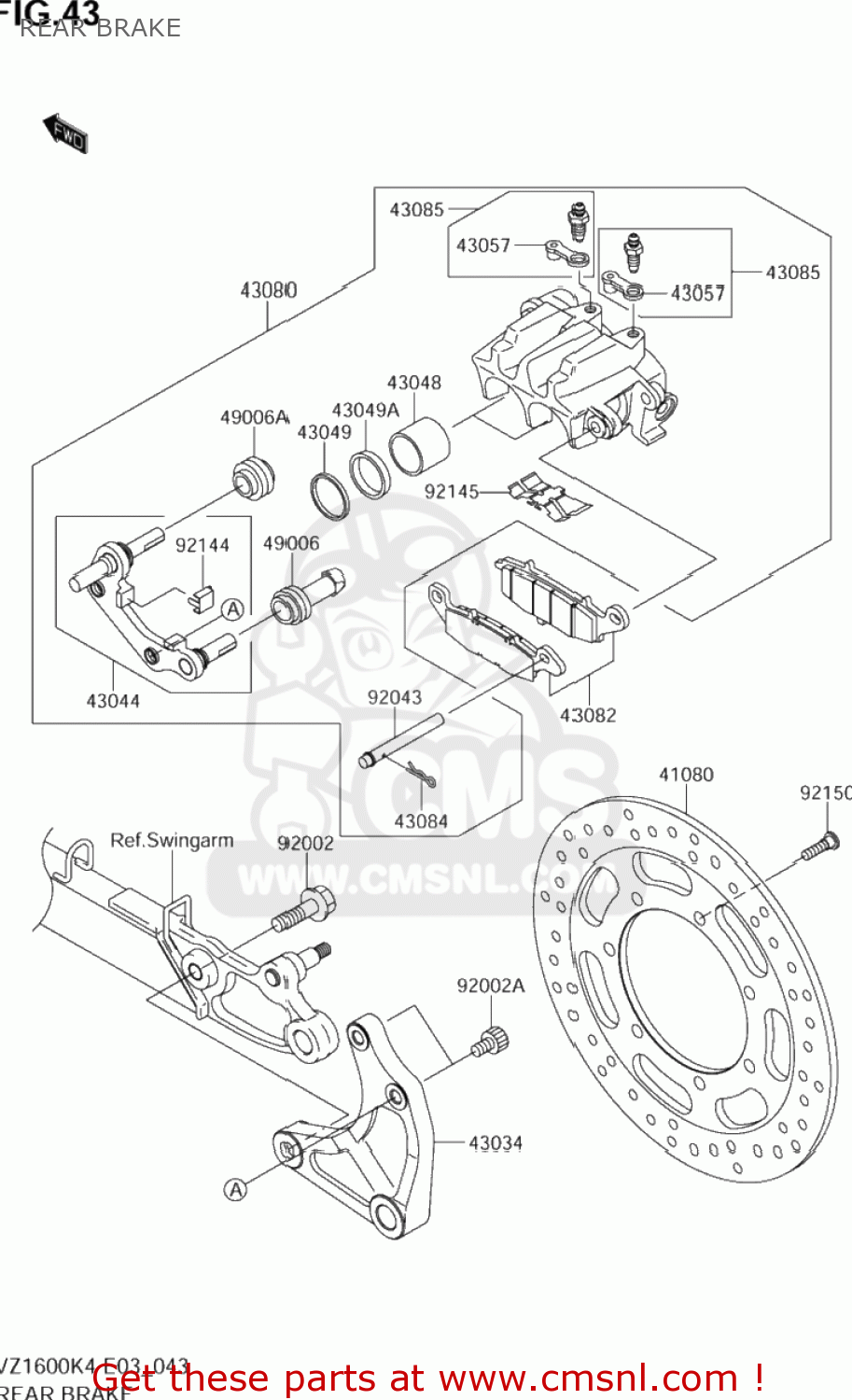

Rear brake diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
REAR BRAKE VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
41080
KK410801525FB
ref: 41080
DISC,RR
€ 133.50
43034
K430341173
ref: 43034
HOLDER-BRAKE,R
€ 81.50
43044
K430441134
ref: 43044
HOLDER-COMP-CA
€ 134.00
43048
K430481094
ref: 43048
PISTON-CALIPER
€ 44.00
43049
K430491068
ref: 43049
PACKING (NAS)
€ 12.50
43049A
K430491092
ref: 43049A
PACKING,PISTON SEAL (NAS)
€ 12.00
43057
KK43057003
ref: 43057
CAP-BREATHER
€ 5.50
43080
KK430805098GN
ref: 43080
CALIPER-SUB-ASSY,RR
€ 328.50
43082
K430821264
ref: 43082
PAD-ASSY-BRAKE
€ 71.00
43084
KK43084003
ref: 43084
CLAMP,PAD
€ 4.00
43085
KK43085001
ref: 43085
BLEEDER
€ 19.00
49006
K490061094
ref: 49006
BOOT,CALIPER
€ 10.00
49006A
K490061095
ref: 49006A
BOOT,CALIPER
€ 8.50
92002
K920021510
ref: 92002
BOLT,FLANGED,12X40
€ 7.00
92002A
K920021713
ref: 92002A
BOLT,SOCKET,10X17
€ 4.50
92043
K920431640
ref: 92043
PIN,PAD
€ 4.00
92144
K921441831
ref: 92144
SPRING,STOPPER
€ 4.00
92145
K921451382
ref: 92145
SPRING,PAD
€ 13.50
92150
K921501771
ref: 92150
BOLT,SOCKET,8X30
€ 4.00
