BRAKE PEDAL/TORQUE LINK

VZ1600 MARAUDER 2004 (K4) USA (E03)

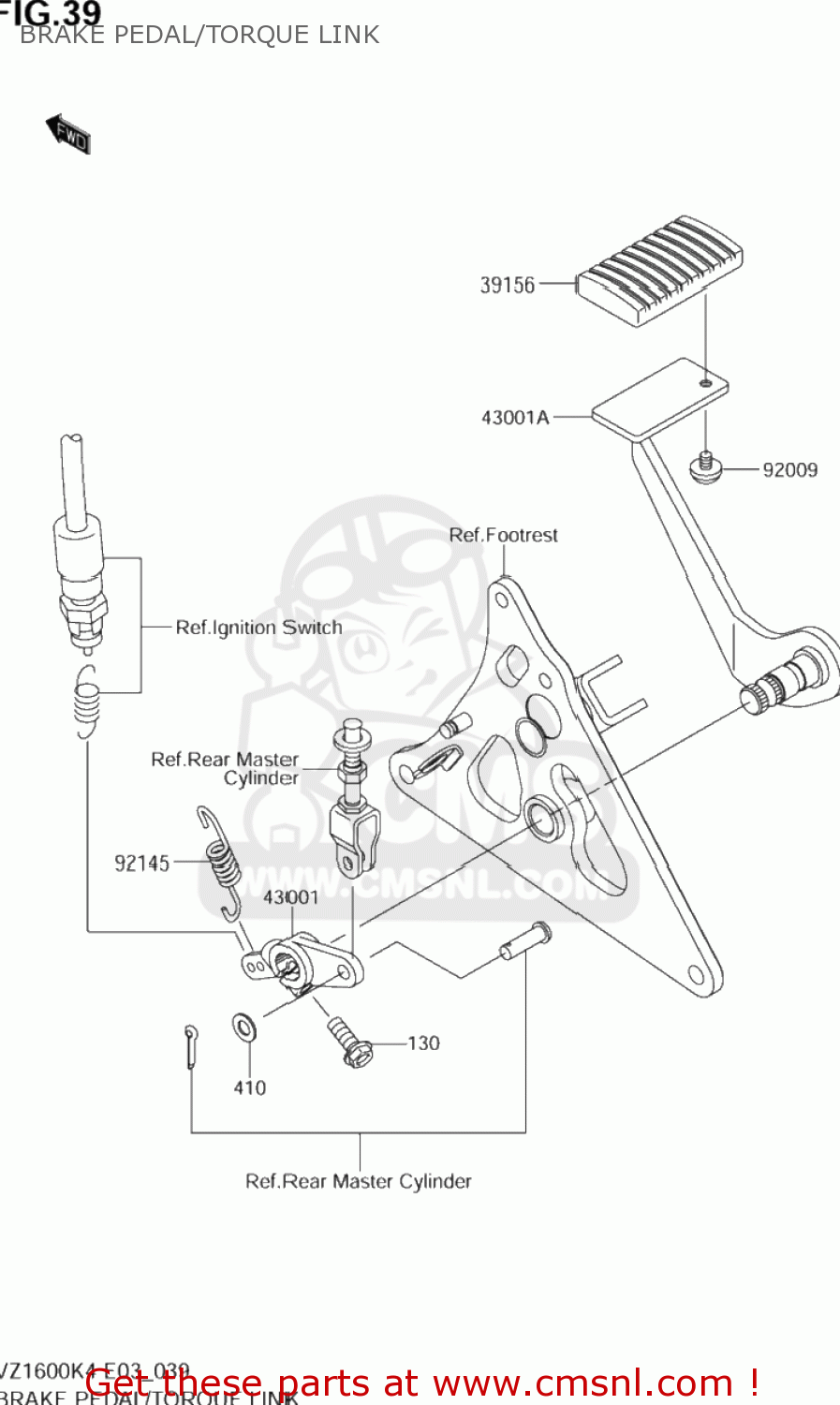

Brake pedal/torque link diagram VZ1600 MARAUDER 2004 (K4) USA (E03)

BRAKE PEDAL/TORQUE LINK VZ1600 MARAUDER 2004 (K4) USA (E03)

BRAKE PEDAL/TORQUE LINK VZ1600 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

130

KK130J0830
ref: 130

BOLT-FLANGED,8X30

€ 1.50

410

KK410B0800
ref: 410
K410A-A0800

WASHER PLAIN S

€ 1.50

39156

K391561677
ref: 39156

PAD,BRAKE PEDAL

€ 8.50

43001

K430011431
ref: 43001

LEVER-BRAKE

€ 29.50

43001A

K430011438
ref: 43001A

LEVER-BRAKE,PEDAL

€ 104.00

92009

K920091677
ref: 92009

SCREW,6X8

€ 3.50

92145

K921450191
ref: 92145

SPRING,BRAKE PEDAL RETURN

€ 5.50
