WATER PUMP

VZ1600 MARAUDER 2004 (K4) USA (E03)

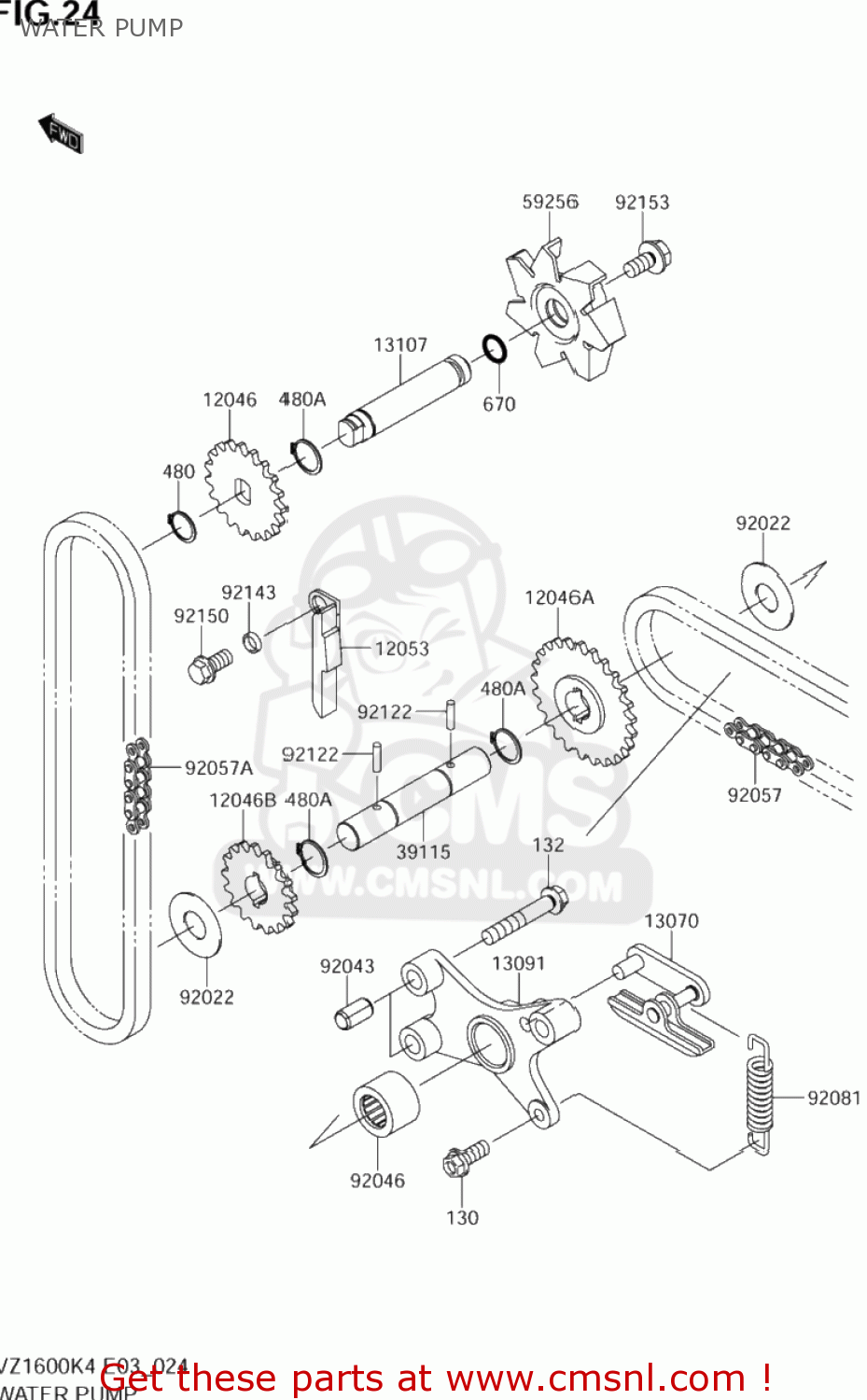

Water pump diagram VZ1600 MARAUDER 2004 (K4) USA (E03)

WATER PUMP VZ1600 MARAUDER 2004 (K4) USA (E03)
WATER PUMP VZ1600 MARAUDER 2004 (K4) USA (E03)
WATER PUMP VZ1600 MARAUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
130
KK130D0514
ref: 130
BOLT-FLANGED
€ 1.50
132
KK132V0635
ref: 132
BOLT,FLANGED S
€ 1.50
480
KK480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
€ 1.50
480A
KK480J1200
ref: 480A
CIRCLIP-TYPE-C,12MM
€ 1.50
670
KK670D1509
ref: 670
O RING,9MM
KK670D1509
€ 3.00
12046
K120461079
ref: 12046
SPROCKET,OIL P
€ 13.50
12046A
K120461096
ref: 12046A
SPROCKET,CRANK
€ 27.00
12046B
K120461097
ref: 12046B
SPROCKET,IDLER
€ 21.00
12053
K120531227
ref: 12053
GUIDE-CHAIN
€ 9.50
13070
K130701178
ref: 13070
GUIDE
€ 24.00
13091
K130911471
ref: 13091
HOLDER
€ 26.00
13107
K131071196
ref: 13107
SHAFT,IMPELLER
€ 21.00
39115
K391151058
ref: 39115
SHAFT-IDLER
€ 16.50
59256
K592561066
ref: 59256
IMPELLER
€ 33.00
92022
K920221852
ref: 92022
WASHER,12X27.5X1.0
€ 4.50
92043
K920431263
ref: 92043
PIN,6.2X8X14
K920431263
€ 2.50
92046
K920461163
ref: 92046
BEARING-NEEDLE,HK1212
€ 9.50
92057
K920571230
ref: 92057
CHAIN,BS25HX46L
€ 8.50
92057A
K920571231
ref: 92057A
CHAIN,BS25HX44L
€ 8.00
92081
K920811791
ref: 92081
SPRING,IDLER SHAFT
€ 3.50
92122
K921221126
ref: 92122
ROLLER,3X15.8
€ 3.00
92143
K921431123
ref: 92143
COLLAR
€ 3.50
92150
K921501599
ref: 92150
BOLT,6X12
€ 2.50
92153
K921530009
ref: 92153
BOLT,6X12
€ 2.00
