HANDLEBAR
VZ1600 MARAUDER 2004 (K4) USA (E03)

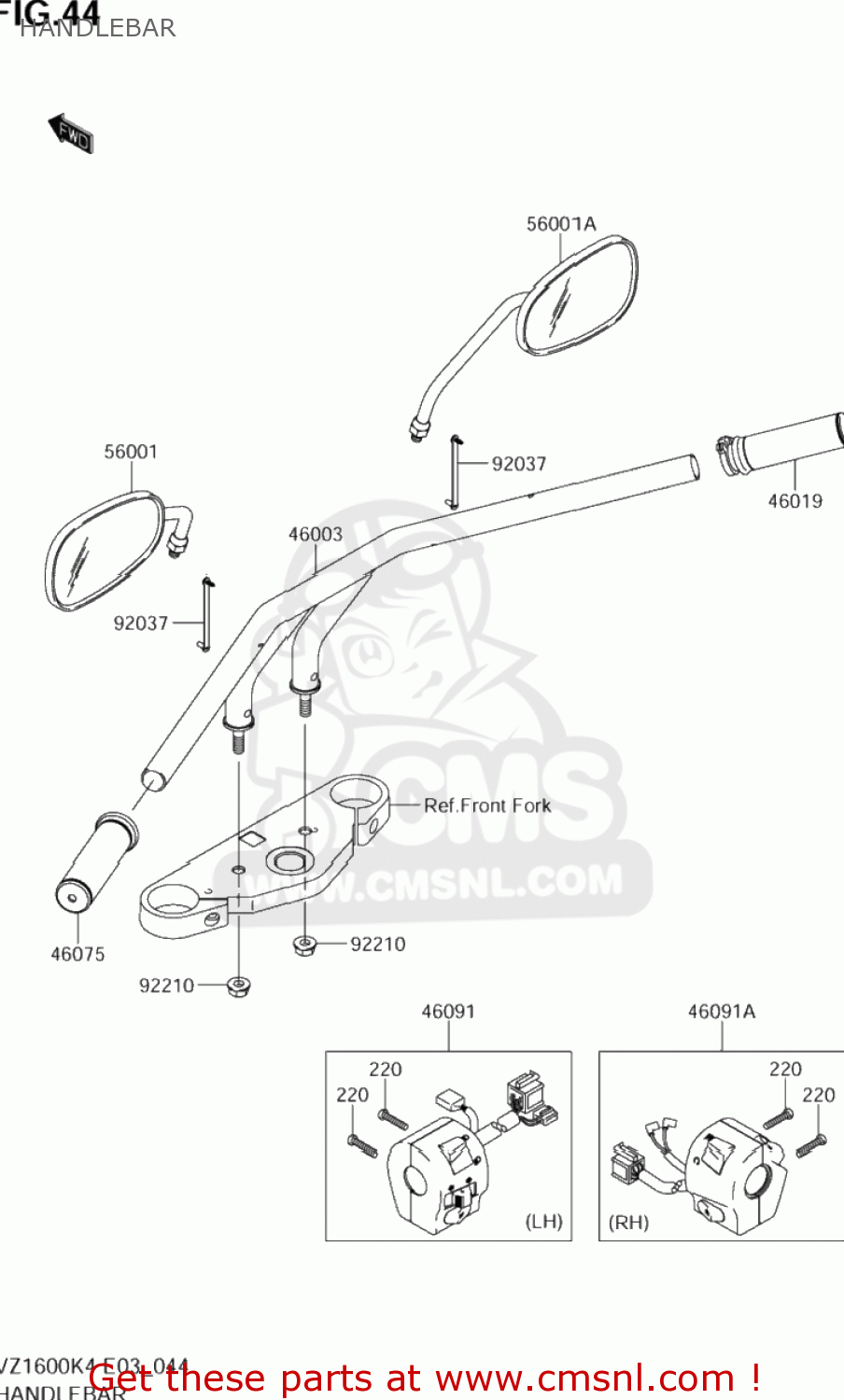

Handlebar diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
HANDLEBAR VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
220
KK220R0525
ref: 220
SCREW-PAN-CROS,5X25
€ 2.00
46003
K460030005
ref: 46003
HANDLE
€ 251.50
46019
K460191123
ref: 46019
GRIP-ASSY,THROTTLE
€ 54.50
46075
K460751212
ref: 46075
GRIP,LH
€ 20.00
46091
K460910026
ref: 46091
HOUSING-ASSY-CONTROL,LH
€ 240.50
46091A
K460910027
ref: 46091A
K4609-10079
HOUSING-ASSY-C
€ 181.50
56001
K560010019
ref: 56001
MIRROR-ASSY,LH
€ 0.00
56001A
K560010020
ref: 56001A
MIRROR-ASSY,RH
€ 0.00
92037
K920371163
ref: 92037
CLAMP,SPEED,L=58
€ 4.50
92210
K922101139
ref: 92210
NUT,LOCK,FLANGED,10MM
€ 3.00
