FUEL INJECTION
VZ1600 MARAUDER 2004 (K4) USA (E03)

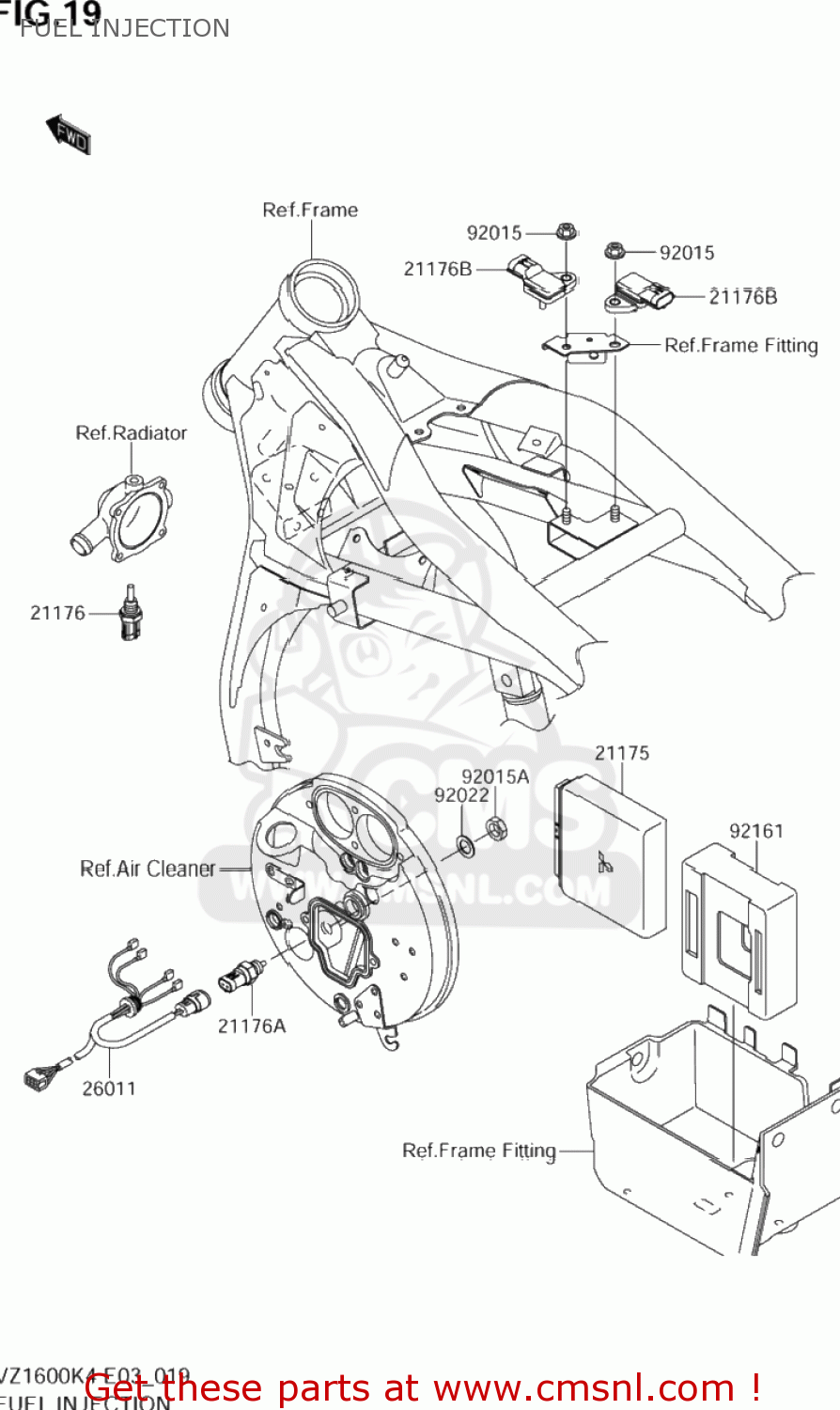

Fuel injection diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
FUEL INJECTION VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
21175
K211750040
ref: 21175
CONTROL UNIT,ELECTRONIC
€ 691.00
21176
K211761085
ref: 21176
SENSOR,WATER T
€ 44.50
21176A
K211761086
ref: 21176A
SENSOR,AIR TEM
€ 44.50
21176B
K211761118
ref: 21176B
SENSOR
€ 75.00
26011
K260111776
ref: 26011
WIRE-LEAD
€ 52.50
92015
K920151386
ref: 92015
NUT,6MM
€ 5.50
92015A
K920151395
ref: 92015A
NUT,12MM
€ 4.50
92022
KK92022269
ref: 92022
WASHER,12.3X20X0.5
€ 4.50
92161
K921611210
ref: 92161
DAMPER
€ 18.00
