REAR WHEEL/CHAIN

VZ1600 MARAUDER 2004 (K4) USA (E03)

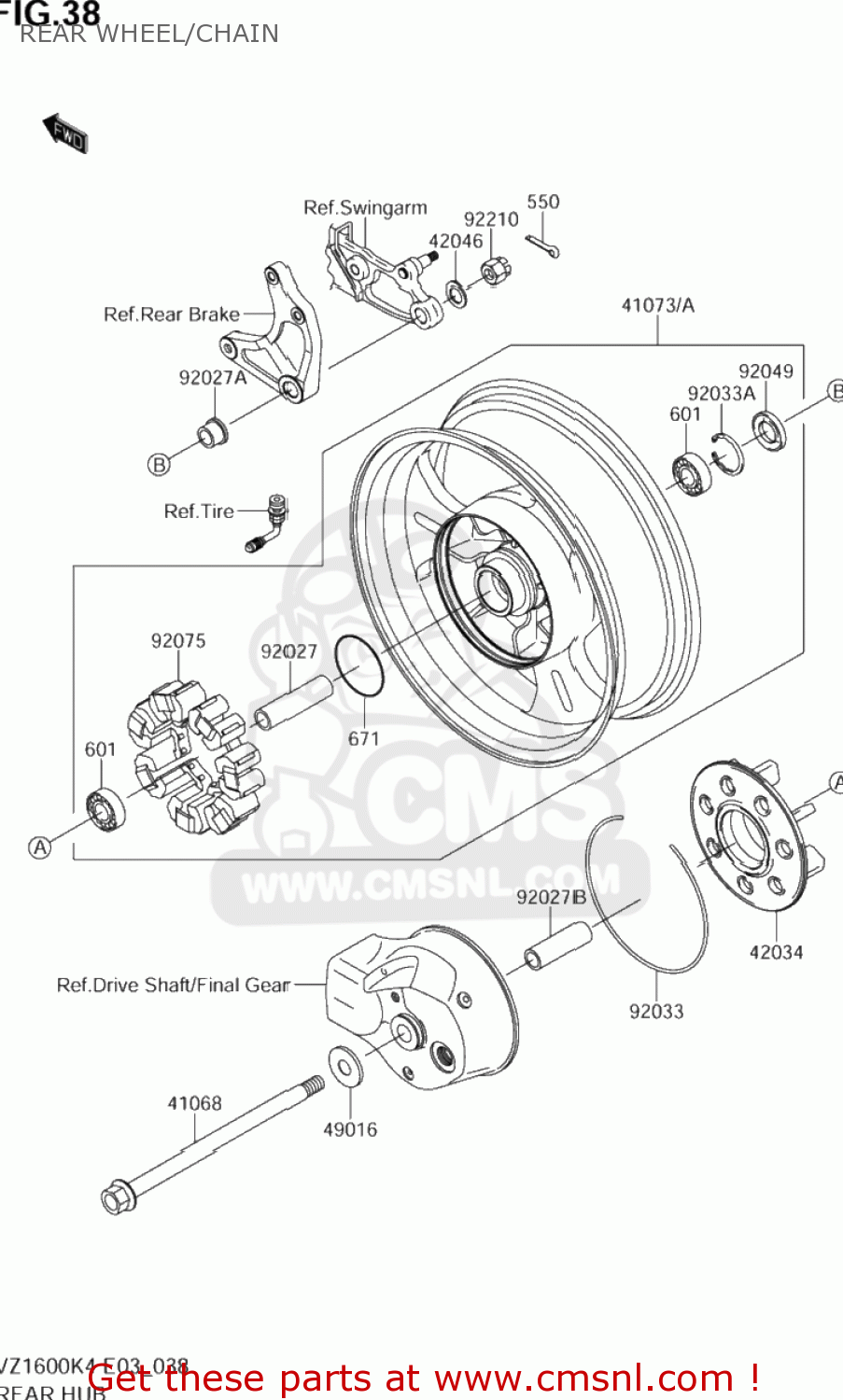

Rear wheel/chain diagram VZ1600 MARAUDER 2004 (K4) USA (E03)

REAR WHEEL/CHAIN VZ1600 MARAUDER 2004 (K4) USA (E03)
REAR WHEEL/CHAIN VZ1600 MARAUDER 2004 (K4) USA (E03)
REAR WHEEL/CHAIN VZ1600 MARAUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
550
KK550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.50
601
KKK601B6304UU
ref: 601
BEARING-BALL,#6304UUC3
€ 13.50
671
KK671B2580
ref: 671
O RING,80MM
KK671B2580
€ 3.50
41068
K410681410
ref: 41068
AXLE,RR
€ 85.00
41073
K410730007496
ref: 41073
WHEEL-ASSY,RR
€ 863.50
41073A
K410730042496
ref: 41073A
WHEEL-ASSY,RR
€ 1,166.50
42034
K420340002
ref: 42034
COUPLING,RR HU
€ 181.00
42046
KK42046003
ref: 42046
WASHER,21X33X2.6
€ 3.50
49016
K490161019
ref: 49016
COVER-SEAL
K490161019
€ 7.50
92027
K920271901
ref: 92027
COLLAR,20.2X28X105.5
€ 23.00
92027A
K920271902
ref: 92027A
COLLAR,RR AXLE,L=21.5
€ 16.50
92027B
K920271969
ref: 92027B
COLLAR,20.2X28X86
€ 15.00
92033
K920330012
ref: 92033
RING-SNAP,220MM
€ 11.50
92033A
K920331043
ref: 92033A
RING-SNAP,52MM
€ 6.50
92049
K920491061
ref: 92049
SEAL-OIL,28X52X5
€ 9.50
92075
K920751121
ref: 92075
DAMPER,SHOCK,RR HUB
€ 91.00
92210
K922101134
ref: 92210
NUT,CASTLE,18MM
€ 4.50
