FUEL PUMP
VZ1600 MARAUDER 2004 (K4) USA (E03)

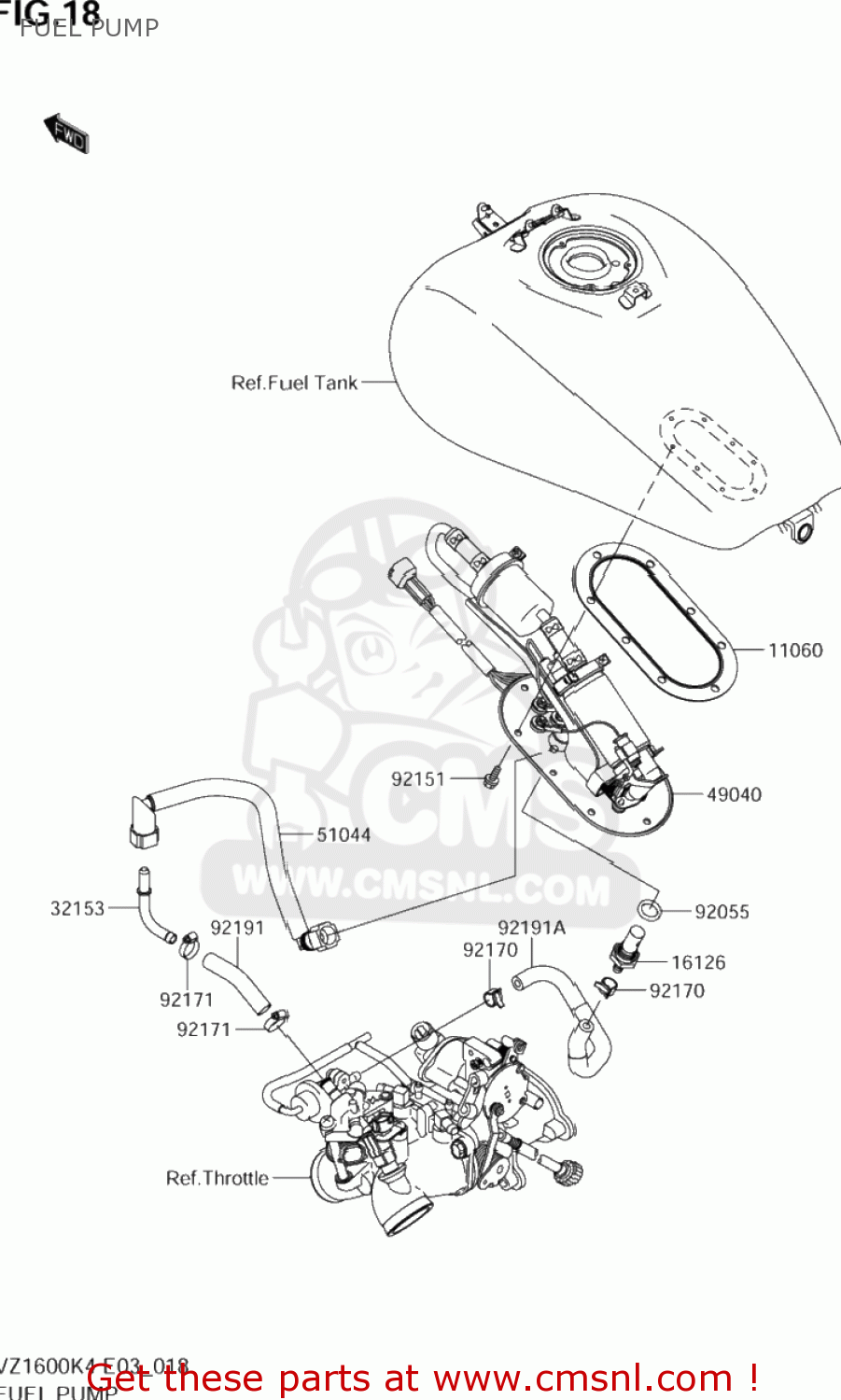

Fuel pump diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
FUEL PUMP VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
11060
K110601929
ref: 11060
GASKET (NAS)
€ 38.50
16126
K161261418
ref: 16126
VALVE
€ 90.50
32153
K321531414
ref: 32153
PIPE
€ 10.50
49040
K490401074
ref: 49040
PUMP-FUEL
€ 689.00
51044
K510440010
ref: 51044
TUBE-ASSY
€ 112.50
92055
K920551667
ref: 92055
RING-O,14.8X2.4
€ 3.50
92151
K921511599
ref: 92151
BOLT,5X12
€ 1.50
92170
K921701492
ref: 92170
CLAMP
€ 3.50
92171
K921711274
ref: 92171
CLAMP
€ 6.00
92191
K921911536
ref: 92191
TUBE
€ 7.50
92191A
K921911557
ref: 92191A
TUBE
€ 14.50
