FRONT WHEEL

VZ1600 MARAUDER 2004 (K4) USA (E03)

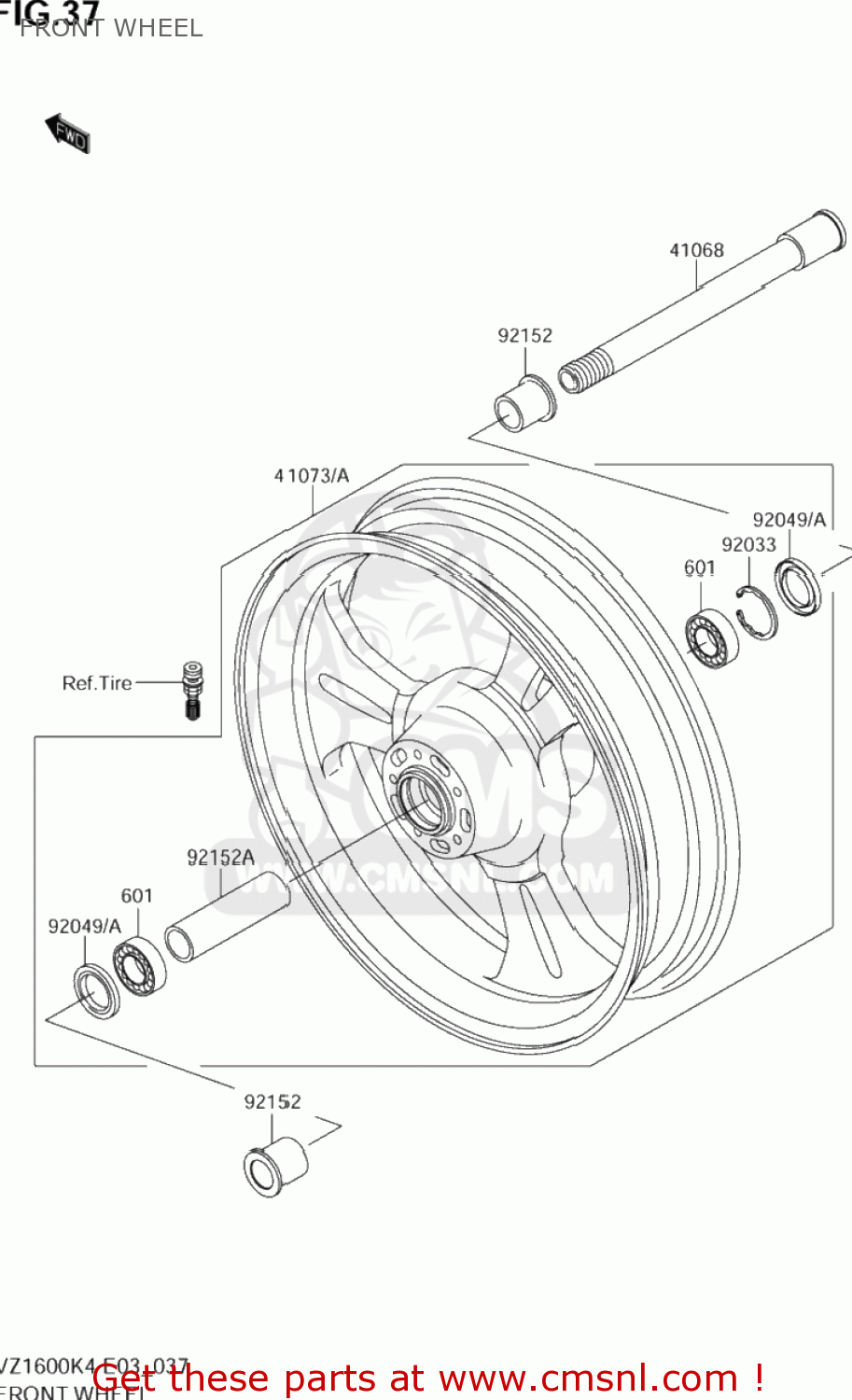

Front wheel diagram VZ1600 MARAUDER 2004 (K4) USA (E03)

FRONT WHEEL VZ1600 MARAUDER 2004 (K4) USA (E03)
FRONT WHEEL VZ1600 MARAUDER 2004 (K4) USA (E03)
FRONT WHEEL VZ1600 MARAUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
601
KKK601B6005UU
ref: 601
BEARING-BALL,#6005UU
€ 19.00
41068
K410681458
ref: 41068
AXLE,FR
€ 57.00
41073
K410730006496
ref: 41073
WHEEL-ASSY,FR
€ 947.00
41073A
K410730041496
ref: 41073A
WHEEL-ASSY,FR
€ 1,081.50
92033
K920331042
ref: 92033
RING-SNAP,47MM
K920331042
€ 4.00
92049
K920490050
ref: 92049
SEAL-OIL,BJN-C2 32X47X5
€ 7.00
92049A
K920491377
ref: 92049A
K9204-90050
SEAL-OIL,BJN 3
€ 7.00
92152
K921520178
ref: 92152
COLLAR,FR AXLE,L=34
€ 15.00
92152A
K921521308
ref: 92152A
COLLAR,FR HUB,L=109
€ 18.50
