LEFT ENGINE COVER
VZ1600 MARAUDER 2004 (K4) USA (E03)

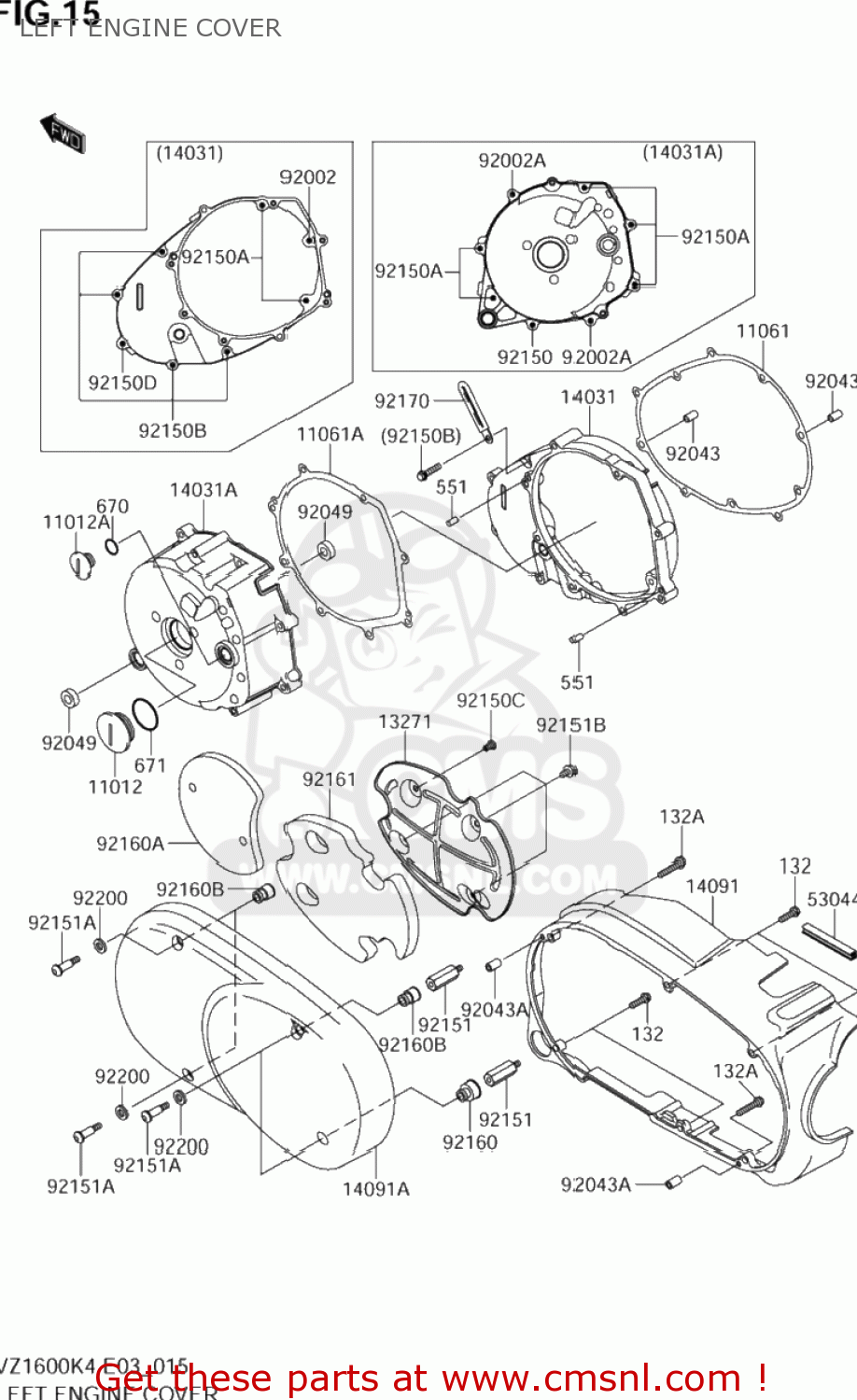

Left engine cover diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
LEFT ENGINE COVER VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
132
KK132V0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
KK132V0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
551
KK551A0612
ref: 551
PIN-DOWEL,6X12
€ 3.00
670
KK670B2018
ref: 670
O RING,18MM
€ 4.50
671
KK671B2540
ref: 671
O RING,40MM
€ 3.50
11012
K110121362
ref: 11012
CAP
€ 5.50
11012A
K110121363
ref: 11012A
CAP,TOP MARK
€ 4.50
11061
K110611079
ref: 11061
GASKET,GENERATOR COVER,IN (NAS)
€ 18.50
11061A
K110611080
ref: 11061A
GASKET,GENERATOR COVER,OUT (NAS)
€ 18.00
13271
K132711496
ref: 13271
PLATE
€ 18.50
14031
K140311384
ref: 14031
COVER-GENERATO
€ 112.50
14031A
K140311392
ref: 14031A
COVER-GENERATO
€ 203.50
14091
K140911206
ref: 14091
COVER,LH,INNER
€ 86.50
14091A
K140911297
ref: 14091A
COVER,LH,OUTER
€ 449.00
53044
K530441312
ref: 53044
TRIM
€ 4.00
92002
K920021566
ref: 92002
BOLT,6X40
€ 3.50
92002A
K920021567
ref: 92002A
BOLT,6X60
€ 4.00
92043
K920431263
ref: 92043
PIN,6.2X8X14
€ 2.50
92043A
K920431690
ref: 92043A
PIN,6X16
€ 3.50
92049
K920491398
ref: 92049
SEAL-OIL,VB13193
€ 3.50
92150
K921501010
ref: 92150
K9200-21570
BOLT,6X20
€ 4.00
92150A
K921501021
ref: 92150A
BOLT,6X30
€ 3.50
92150B
K921501779
ref: 92150B
BOLT,6X25
€ 3.50
92150C
K921501864
ref: 92150C
BOLT,6X10
€ 3.00
92150D
K921501967
ref: 92150D
BOLT,6X35
€ 3.50
92151
K921511062
ref: 92151
BOLT
€ 10.00
92151A
K921511796
ref: 92151A
BOLT,L=32
€ 4.50
92151B
K921511884
ref: 92151B
BOLT,6X10
€ 2.00
92160
K921601718
ref: 92160
DAMPER
€ 4.50
92160A
K921601719
ref: 92160A
DAMPER
€ 16.00
92160B
K921601730
ref: 92160B
DAMPER
€ 5.00
92161
K921611179
ref: 92161
DAMPER
€ 29.50
92170
K921701514
ref: 92170
CLAMP
€ 3.50
92200
K922001296
ref: 92200
WASHER
€ 2.00
