TURN SIGNAL
VZ1600 MARAUDER 2004 (K4) USA (E03)

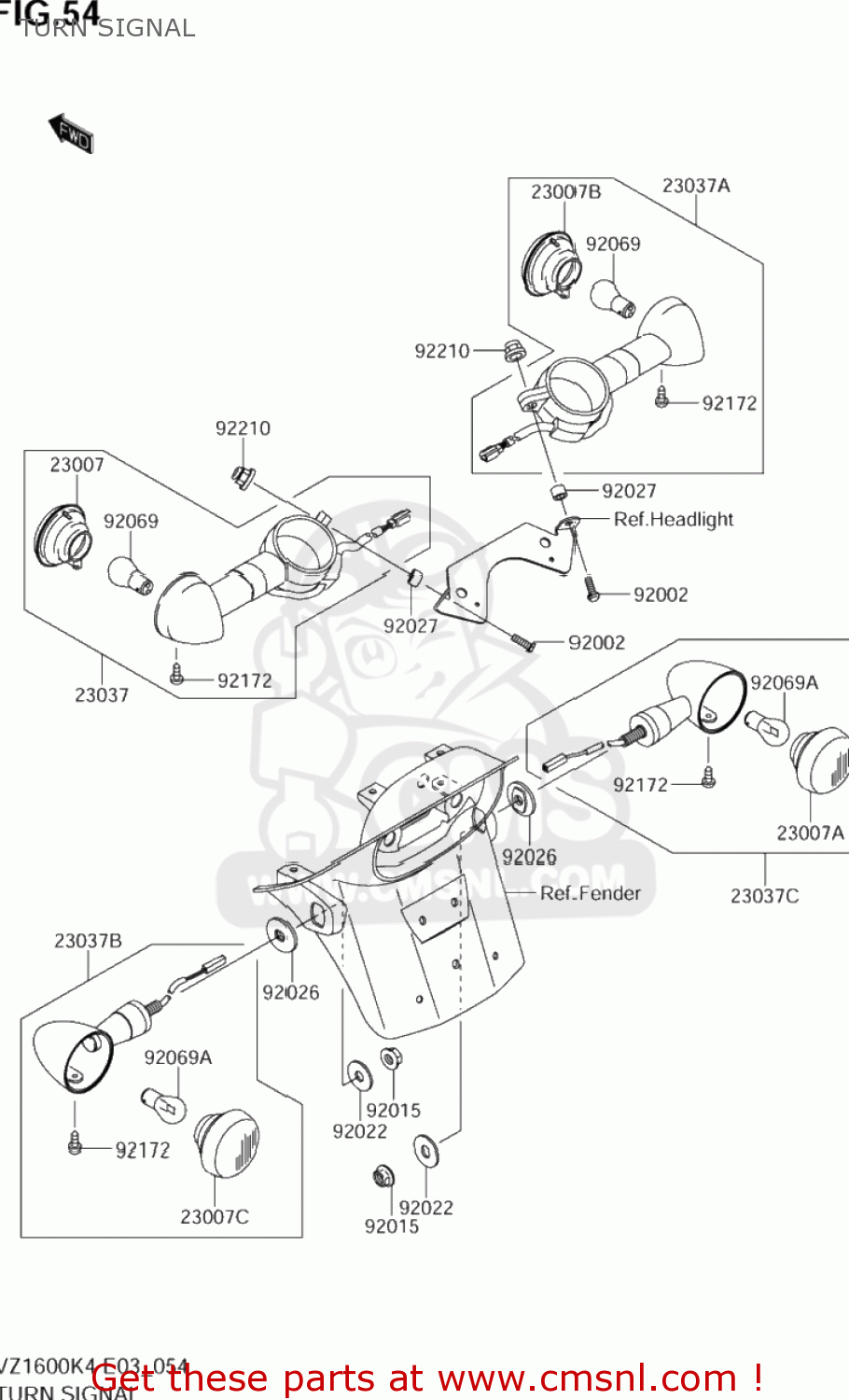

Turn signal diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
TURN SIGNAL VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
23007
K230070008
ref: 23007
LENS-COMP,SIGNAL LAMP,FR
€ 0.00
23007A
K230070009
ref: 23007A
LENS-COMP,SIGNAL LAMP,RR
€ 9.50
23007B
K230070026
ref: 23007B
LENS,SIGNAL LAMP,FR
€ 0.00
23007C
K230070027
ref: 23007C
LENS,SIGNAL LAMP,RR
€ 14.00
23037
K230370010
ref: 23037
LAMP-ASSY-SIGNAL,FR,LH
€ 0.00
23037A
K230370011
ref: 23037A
LAMP-ASSY-SIGNAL,FR,RH
€ 0.00
23037B
K230370012
ref: 23037B
LAMP-ASSY-SIGNAL,RR,LH
€ 68.50
23037C
K230370013
ref: 23037C
LAMP-ASSY-SIGNAL,RR,RH
€ 68.50
92002
K920021607
ref: 92002
BOLT
€ 3.50
92015
K920151356
ref: 92015
NUT,10MM
€ 2.00
92022
K920221302
ref: 92022
WASHER,10.5X30X2.3,BLACK
€ 4.00
92026
K920260030
ref: 92026
SPACER
€ 2.50
92027
KK92027162
ref: 92027
COLLAR,6.8X10X12
€ 5.00
92069
KK92069063
ref: 92069
BULB,12V 21/5W
€ 9.00
92172
K921720118
ref: 92172
SCREW,TAPPING,4X10
€ 1.50
92210
K922100141
ref: 92210
NUT,CAP,6MM
€ 2.50
