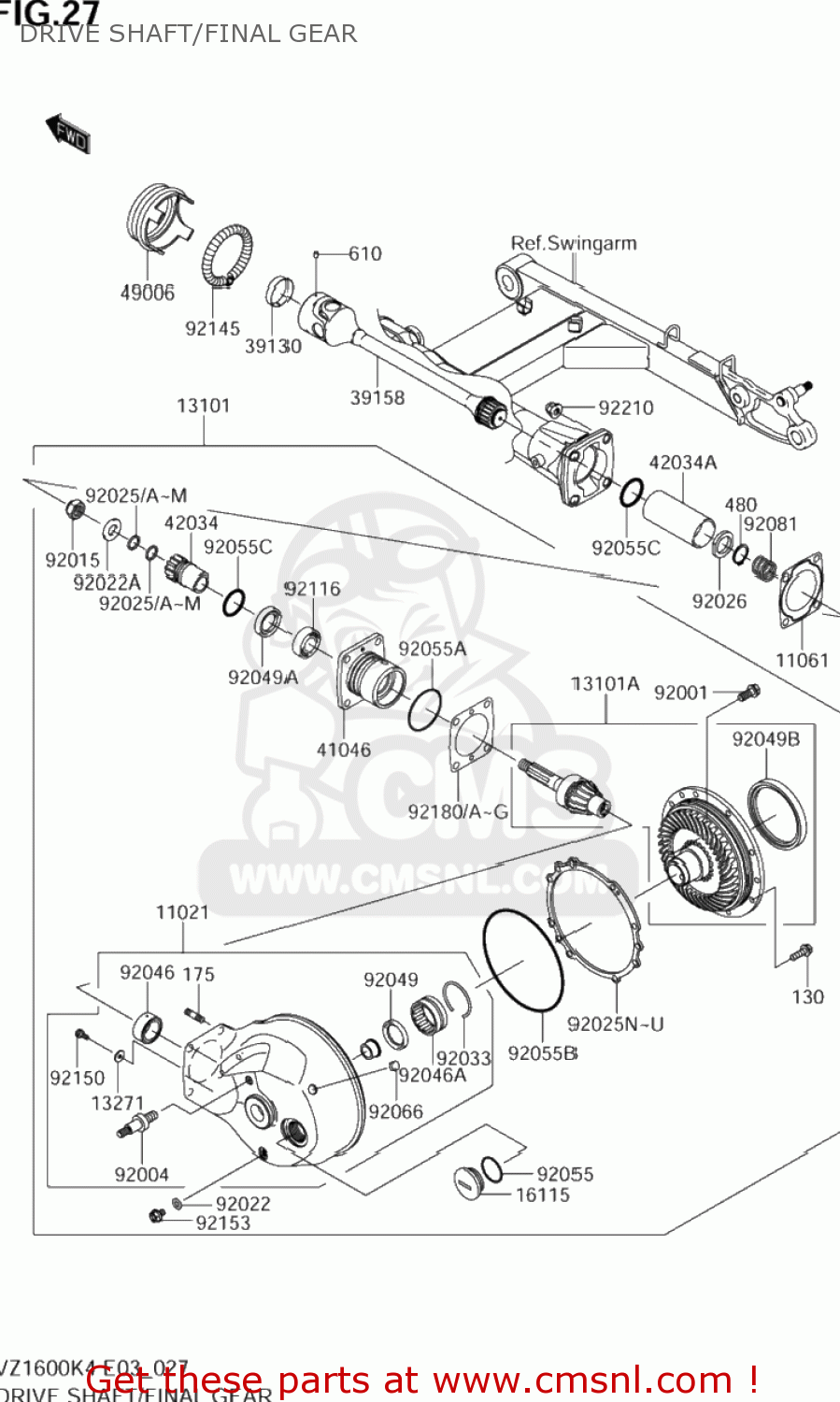

DRIVE SHAFT/FINAL GEAR

ref

part #

description

quantity

130

KK130Y0825
ref: 130

BOLT-FLANGED

€ 2.00

175

KK175G1035
ref: 175

BOLT-STUD-FINE,10X35

€ 2.50

480

KK480J2600
ref: 480

CIRCLIP-TYPE-C,26MM

€ 1.50

610

KK610A0406
ref: 610

ROLLER,4X6

€ 1.50

11021

K110211133
ref: 11021

CASE-ASSY,FINA

€ 927.50

11061

K110611088
ref: 11061

GASKET,RR,SWIN (NAS)

€ 17.00

13101

K131010010
ref: 13101

GEAR-ASSY,FINA

€ 2,490.00

13101A

K131015086
ref: 13101A

GEAR-ASSY,BEVE

€ 1,139.00

13271

K132711733
ref: 13271

PLATE

€ 3.00

16115

K161151069
ref: 16115

CAP-OIL FILLER

€ 13.50

39130

K391301002
ref: 39130

SPRING-LEAF

€ 4.00

39158

K391581112
ref: 39158

SHAFT-ASSY-DRIVE,RR,SWINGARM

€ 325.50

41046

K410461103
ref: 41046

HOUSING-BEARIN

€ 85.00

42034

K420341079
ref: 42034

COUPLING

€ 76.00

42034A

K420341178
ref: 42034A

COUPLING,PROPE

€ 55.50

49006

K490061226
ref: 49006

BOOT,PROPELLER SHAFT

€ 19.00

92001

K920011778
ref: 92001

BOLT,10X23

€ 4.00

92004

K920041278
ref: 92004

STUD,RR,SHOCKABSORBER

€ 12.50

92015

K920151059
ref: 92015

NUT,16MM

€ 7.00

92022

K920221086
ref: 92022

WASHER,8.2X16X1

€ 3.00

92022A

K920221105
ref: 92022A

WASHER,16X32X3.2

€ 7.00

92025

K920251214
ref: 92025

SHIM,T=1.30

€ 6.50

92025A

K920251215
ref: 92025A

SHIM,T=1.32

€ 6.50

92025B

K920251216
ref: 92025B

SHIM,T=1.34

€ 6.50

92025C

K920251217
ref: 92025C

SHIM,T=1.36

€ 6.50

92025D

K920251218
ref: 92025D

SHIM,T=1.38

€ 6.50

92025E

K920251219
ref: 92025E

SHIM,T=0.10

€ 3.50

92025F

K920251220
ref: 92025F

SHIM,T=0.20

€ 3.50

92025G

K920251221
ref: 92025G

SHIM,T=0.30

€ 3.50

92025H

K920251222
ref: 92025H

SHIM,T=0.50

€ 3.50

92025I

K920251223
ref: 92025I

SHIM,T=0.60

€ 5.00

92025J

K920251224
ref: 92025J

SHIM,T=0.70

€ 5.00

92025K

K920251225
ref: 92025K

SHIM,T=0.80

€ 5.00

92025L

K920251226
ref: 92025L

SHIM,T=0.90

€ 5.50

92025M

K920251227
ref: 92025M

SHIM,T=1.00

€ 5.50

92025N

K920251783
ref: 92025N

SHIM,T=0.15

€ 7.00

92025O

K920251784
ref: 92025O

SHIM,T=0.50

€ 7.00

92025P

K920251785
ref: 92025P

SHIM,T=0.60

€ 7.00

92025Q

K920251786
ref: 92025Q

SHIM,T=0.70

€ 7.00

92025R

K920251787
ref: 92025R

SHIM,T=0.80

€ 9.00

92025S

K920251788
ref: 92025S

SHIM,T=0.90

€ 9.00

92025T

K920251789
ref: 92025T

SHIM,T=1.00

€ 9.00

92025U

K920251790
ref: 92025U

SHIM,T=1.20

€ 9.50

92026

K920261085
ref: 92026

SPACER,PROPELLER SHAFT

€ 4.50

92033

K920331074
ref: 92033

RING-SNAP,52MM

€ 3.50

92046

K920461168
ref: 92046

BEARING-NEEDLE,RNA4904RD

€ 43.50

92046A

K920461169
ref: 92046A

BEARING-NEEDLE,38NQ5020WD

€ 50.50

92049

K920491025
ref: 92049

SEAL-OIL,S-35477HS

€ 9.00

92049A

K920491033
ref: 92049A

SEAL-OIL,SC32487

€ 10.00

92049B

K920491280
ref: 92049B

SEAL-OIL

€ 19.00

92055

KK92055049
ref: 92055

RING-O,31.7X2.4

€ 3.50

92055A

K920551038
ref: 92055A

RING-O,ID=57.6

€ 4.50

92055B

K920551165
ref: 92055B

RING-O,154MM

€ 7.00

92055C

K920551646
ref: 92055C

RING-O

€ 4.50

92066

K920661110
ref: 92066

PLUG

€ 4.50

92081

K920811183
ref: 92081

SPRING,PROPELLER SHAFT

€ 4.50

92116

K921161004
ref: 92116

BEARING-ROLLER,4T32005X

€ 20.00

92145

K921451162
ref: 92145

SPRING,BOOT

€ 7.50

92150

K921501806
ref: 92150

BOLT,5X10

€ 2.00

92153

K921531277
ref: 92153

BOLT,FLANGED,8X12

€ 1.50

92180

K921800009
ref: 92180

SHIM,T=0.15

€ 8.00

92180A

K921800010
ref: 92180A

SHIM,T=0.50

€ 8.00

92180B

K921800011
ref: 92180B

SHIM,T=0.60

€ 8.00

92180C

K921800012
ref: 92180C

SHIM,T=0.70

€ 8.00

92180D

K921800013
ref: 92180D

SHIM,T=0.80

€ 8.00

92180E

K921800014
ref: 92180E

SHIM,T=0.90

€ 8.00

92180F

K921800015
ref: 92180F

SHIM,T=1.00

€ 8.00

92180G

K921800016
ref: 92180G

SHIM,T=1.20

€ 8.50

92210

K922101121
ref: 92210

NUT,CAP,10MM

€ 3.00

all assemblies
