FUEL TANK
VZ1600 MARAUDER 2004 (K4) USA (E03)

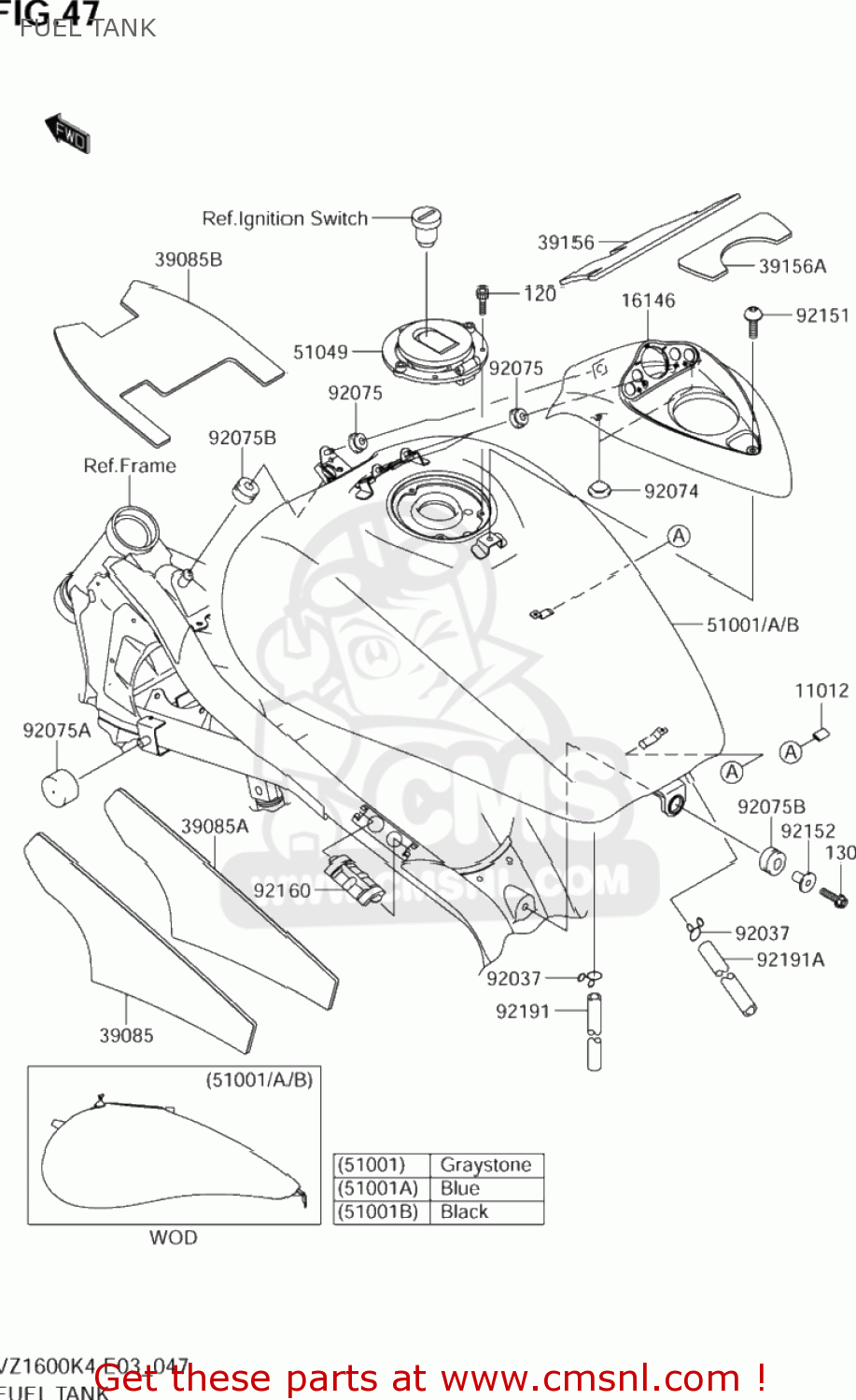

Fuel tank diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
FUEL TANK VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
120
KK120S0512
ref: 120
K120C-B0512
BOLT-SOCKET
€ 2.50
130
KK130H0830
ref: 130
BOLT-FLANGED,8X30
€ 2.50
11012
K110121725
ref: 11012
CAP
€ 3.50
16146
K161460006
ref: 16146
COVER-ASSY,FUEL TANK
€ 136.00
39085
K390851065
ref: 39085
PAD-TANK,FUEL TANK,LH
€ 33.00
39085A
K390851066
ref: 39085A
PAD-TANK,FUEL TANK,RH
€ 31.00
39085B
K390851067
ref: 39085B
PAD-TANK,FUEL TANK,CNT
€ 24.50
39156
K391561700
ref: 39156
PAD,FUEL TANK COVER,FR
€ 19.00
39156A
K391561701
ref: 39156A
PAD,FUEL TANK COVER,RR
€ 14.00
51001
KK510011682C4
ref: 51001
TANK-COMP-FUEL
€ 342.50
51001A
KK510011682M4
ref: 51001A
TANK-COMP-FUEL
€ 370.50
51001B
K510011682660
ref: 51001B
TANK-COMP-FUEL
€ 538.00
51049
K510490009
ref: 51049
K5104-90019
CAP-TANK,FUEL
€ 86.50
92037
KK92037147
ref: 92037
CLAMP,TUBE
€ 8.00
92074
KK92074028
ref: 92074
PLUG,7X2
€ 3.00
92075
K920751011
ref: 92075
DAMPER
€ 5.00
92075A
KK92075125
ref: 92075A
DAMPER,FUEL TANK
€ 4.50
92075B
K920751736
ref: 92075B
DAMPER
€ 6.50
92151
K921511940
ref: 92151
BOLT,SOCKET,6X12
€ 2.00
92152
K921521393
ref: 92152
COLLAR
€ 4.00
92160
K921601751
ref: 92160
DAMPER,FUEL TANK
€ 12.00
92191
K921911272
ref: 92191
TUBE,DRAIN
€ 14.00
92191A
K921911529
ref: 92191A
TUBE,5X10X650
€ 9.50
