Buy Suzuki VZ Parts Online


STARTER MOTOR

VZ1600 MARAUDER 2004 (K4) USA (E03)

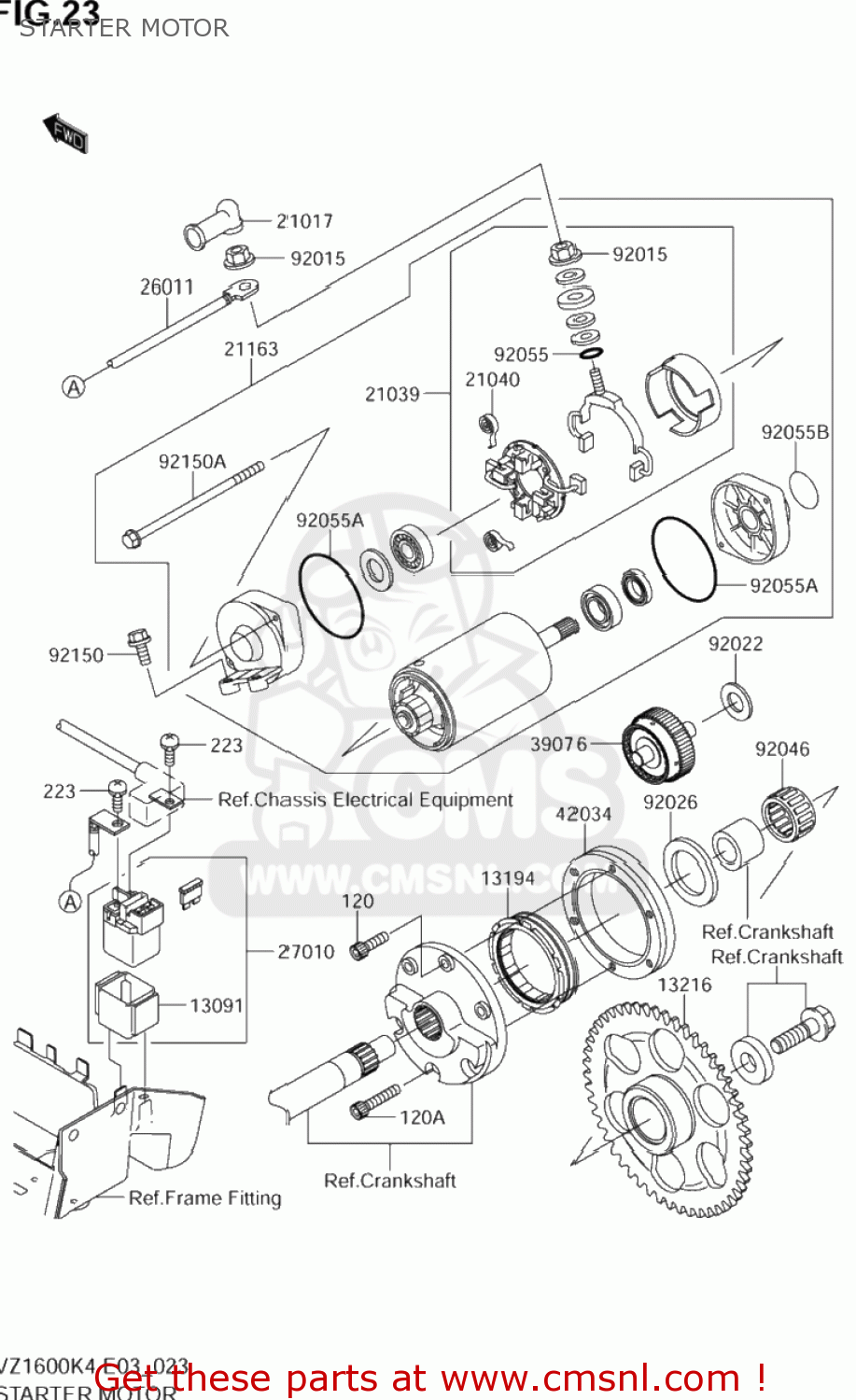

Starter motor diagram VZ1600 MARAUDER 2004 (K4) USA (E03)

STARTER MOTOR VZ1600 MARAUDER 2004 (K4) USA (E03)
STARTER MOTOR VZ1600 MARAUDER 2004 (K4) USA (E03)
STARTER MOTOR VZ1600 MARAUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
120
KK120S0620
ref: 120
BOLT-SOCKET,6X20
€ 1.50
120A
KK120S0630
ref: 120A
BOLT-SOCKET
€ 1.50
223
KK223B0510
ref: 223
SCREW
€ 1.50
13091
K130911884
ref: 13091
HOLDER,MAGNETI
€ 7.50
13194
K131941088
ref: 13194
CLUTCH-ONEWAY
€ 92.00
13216
K132161115
ref: 13216
GEAR-COMP,FREE WHEEL
€ 107.00
21017
KK21017017
ref: 21017
GROMMET,STARTER TERMINAL
€ 6.50
21039
K210391060
ref: 21039
BRUSH,CARBON
€ 76.50
21040
K210401055
ref: 21040
SPRING-BRUSH
€ 5.50
21163
K211631271
ref: 21163
STARTER-ELECTRIC
€ 669.00
26011
K260111700
ref: 26011
WIRE-LEAD
€ 62.50
27010
K270101327
ref: 27010
SWITCH,MAGNETIC
€ 85.50
39076
K390760003
ref: 39076
LIMITER,STARTER IDLE GEAR
€ 196.50
42034
K420341093
ref: 42034
COUPLING
€ 70.00
92015
K920151476
ref: 92015
NUT,STARTER MOTOR
€ 4.00
92022
K920221852
ref: 92022
WASHER,12X27.5X1.0
€ 4.50
92026
K920261490
ref: 92026
SPACER,31X49.5X1.2
€ 7.50
92046
K920461171
ref: 92046
BEARING-NEEDLE,K30X35X20
€ 15.00
92055
K920551370
ref: 92055
RING-O,4.5X2.0
€ 3.50
92055A
K920551381
ref: 92055A
RING-O,STARTER MOTOR
€ 7.50
92055B
K920551393
ref: 92055B
RING-O,37MM
€ 7.00
92150
K921501779
ref: 92150
BOLT,6X25
€ 3.50
92150A
K921501913
ref: 92150A
BOLT,STARTER MOTOR
€ 7.00
